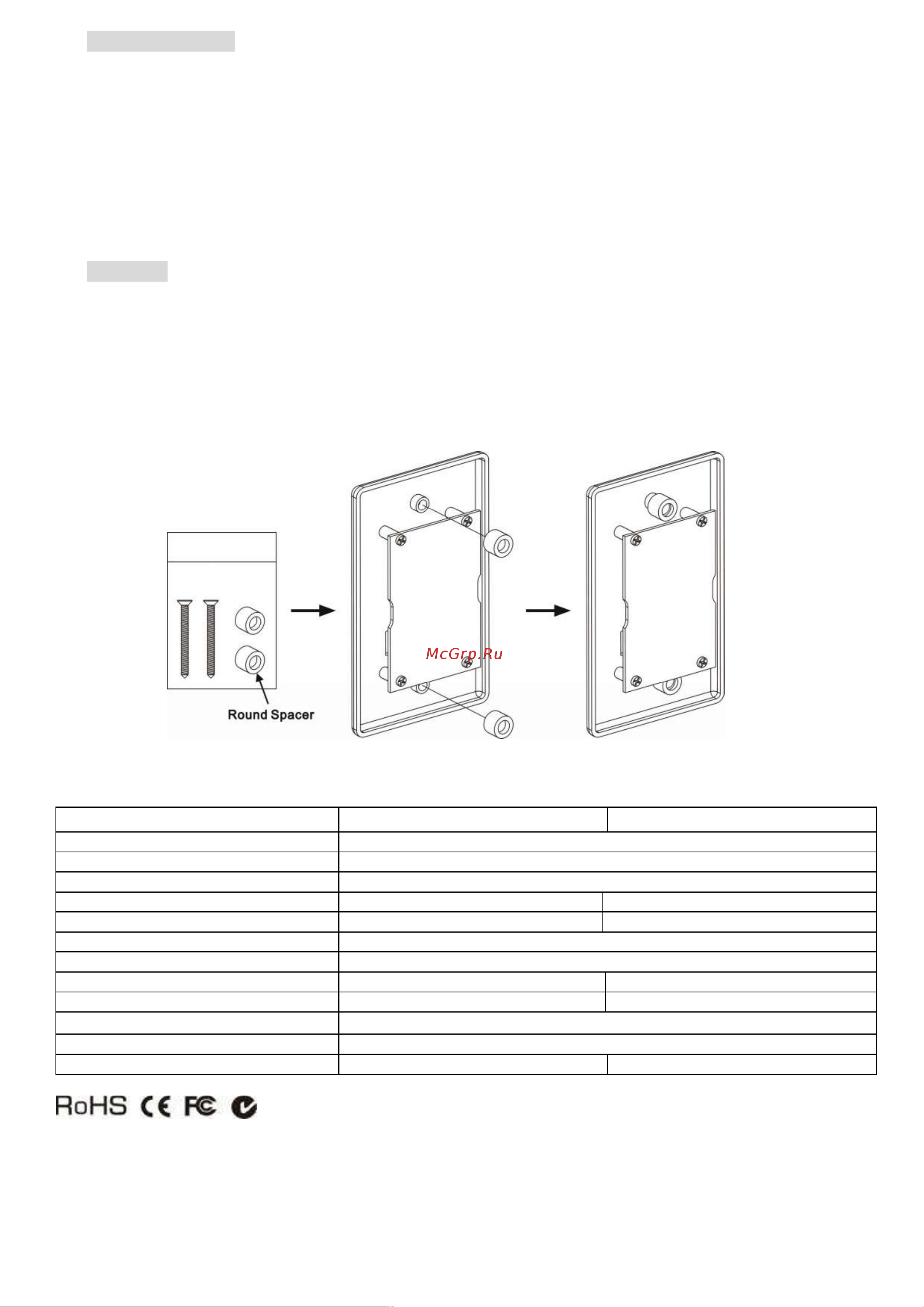

Sc&t HW01 [3/3] Specification

3

LED Indication:

HW01T Status: Blue = normal.

Red = abnormal ( HDMI equipment power off or cable not have

properly connection)

Flash = IR emitting.

Off = No Power. (HDMI Source power off and no connect with HW01R)

1. The cabling must away from any equipment with electromagnetic wave, i.e.: microwave,

radio equipment, high voltage.

2. HW01 Data Rate support up to 2.25Gbps, but not support 1080p Deep Color signal.

3.IR receiving angle is ±45° with maximum distance 5 meters.

Data Rate Max. 2.25Gbps

Link Cable Distance CAT5E 60M@1080i , CAT5E 40M @1080p

HDMI Connector HDMI A Type x 1 (Input) HDMI A Type x 1 (Output)

3.5 mm Connector IR emitter IR receiver

Link Connector RJ-45 Shielded x 2

IR Carrier Frequency 38Khz

Max. Power Consumption X DC5V 500mA (Max)

Power Supply X DC5V 1Amp

Temperature

Operation: -40 ~ +55℃, Storage: -40 ~ 85℃, Humidity: up to 95%
