Haier HSU-12RG03 [51/54] Installation instruction on the outdoor part of the change for fresh air device

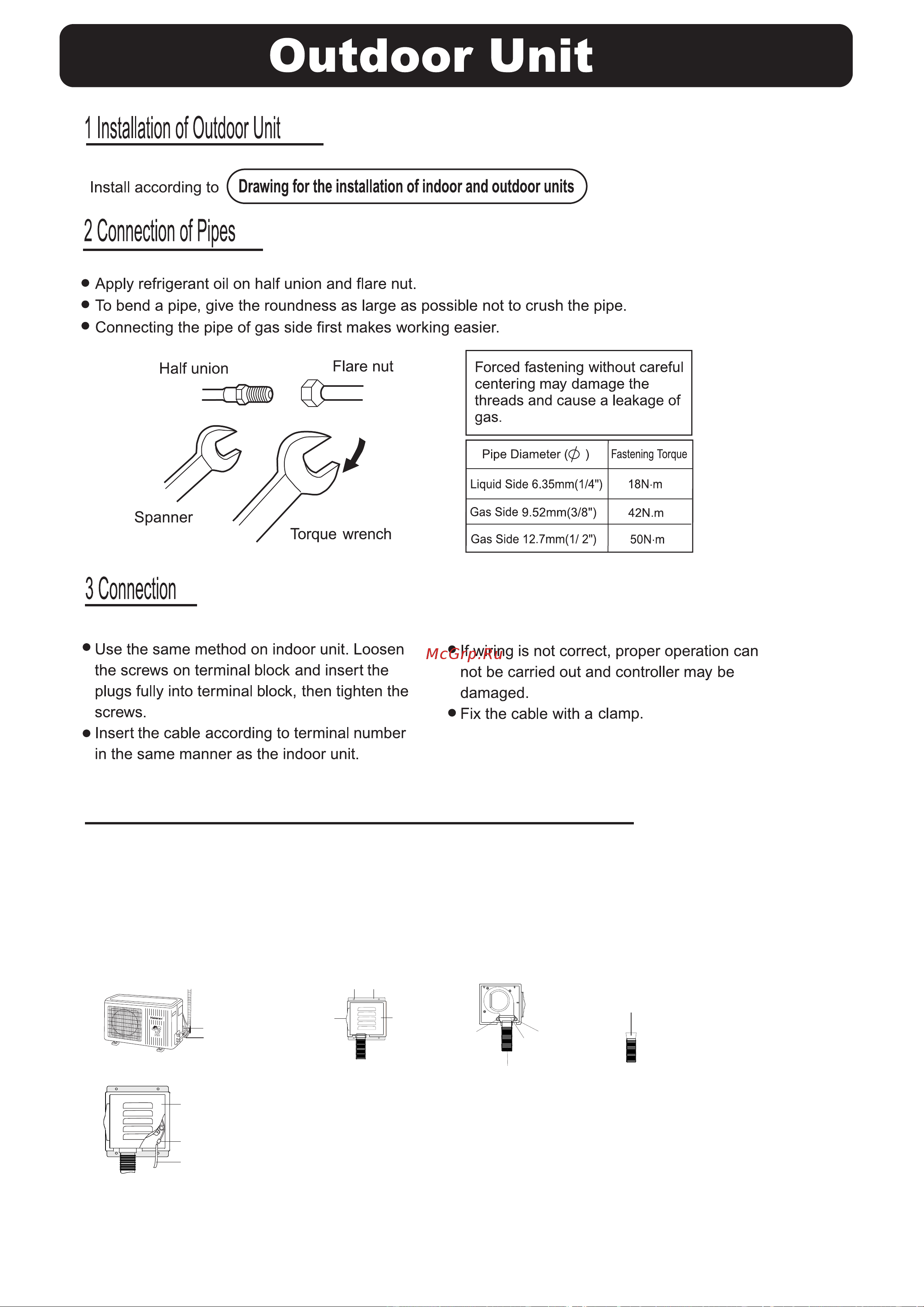

![Haier HSU-12RG03 [51/54] Installation instruction on the outdoor part of the change for fresh air device](/views2/1810001/page51/bg33.png)
1 Remove the four screws of change-for-fresh-air box from the back cover
2 Use six screws to fix the change new wind box onto the designated position on the outdoor unit
3 Remove two screws of the pipe junction of the change new wind box, then insert the flared departure of
the change for fresh air tube into the pipe junction and then fix with the screws.
4 Use four screws to fix the change-for-fresh-air box onto the back cover, as illustrated:
Fresh air box
Fresh air
box
Fresh air tube
Fresh air tube
Fresh air tube
Screw
hole
Dust
filtration
mesh
Screw
Screw
Joint of tube
Flared departure
4 Installation instruction on the outdoor part of the change -for- fresh- air device
back
cover
Connecting terminal
Fresh air singal wire(with guard ring)
Note:After wiring, the connecting terminals of outdoor unit and change-fresh-air as well as the wiring sheath should be
placed in the change-for-fresh-air box against the rain.
Change-for-fresh-air box
45
