Haier HSU-09H03/H(DBP) [3/82] Important information
![Haier HSU-12H03/H(DBP) [3/82] Important information](/views2/1810029/page3/bg3.png)

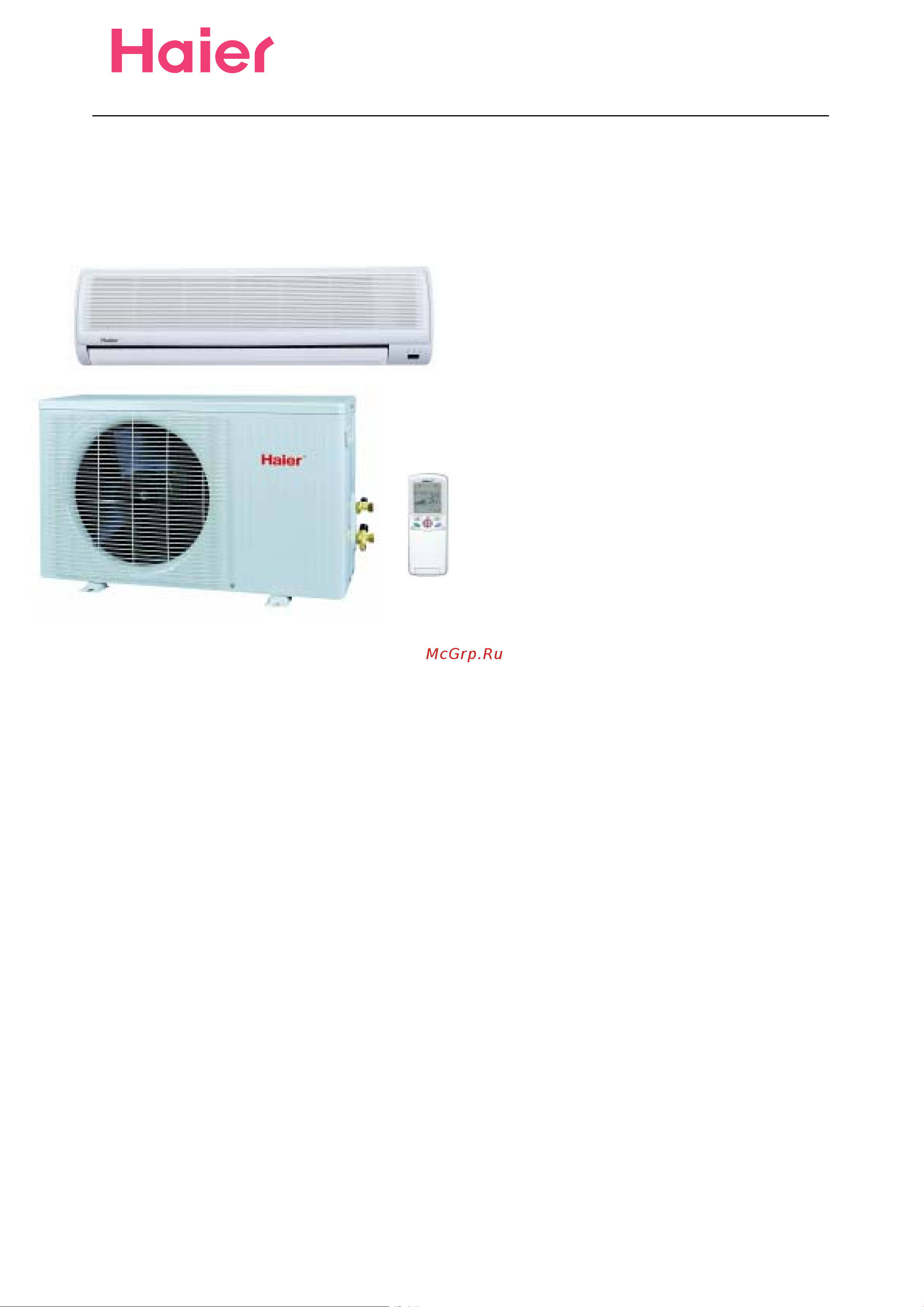

Air Conditioner
Edition:2006/1/10Air Conditioner
Edition:2006/1/10Air Conditioner
Edition:2006/1/10
IMPORTANT INFORMATION
ƽҏFeatures
ƽҏComfortable: wide-angle airflow
ƽhealth air purifying
ƽquiet operation
ƽҏsuper energy efficient
ƽMain Specification
ƽCooling CapacityΚ 3500W
ƽRated Power/Current(cooling)Κ 1080W/5.2A
ƽEER: 3.24
ƽHeating CapacityΚ 4800W
ƽRated Power/Current(heating): 1460W/7.0A
ƽCOP: 3.29
ƽAir Volume(Indoor): 500m
3
/h
ƽPower: 1PH- 220V- 50 Hz
MODEL: HSU-12H03/H(DBP)
