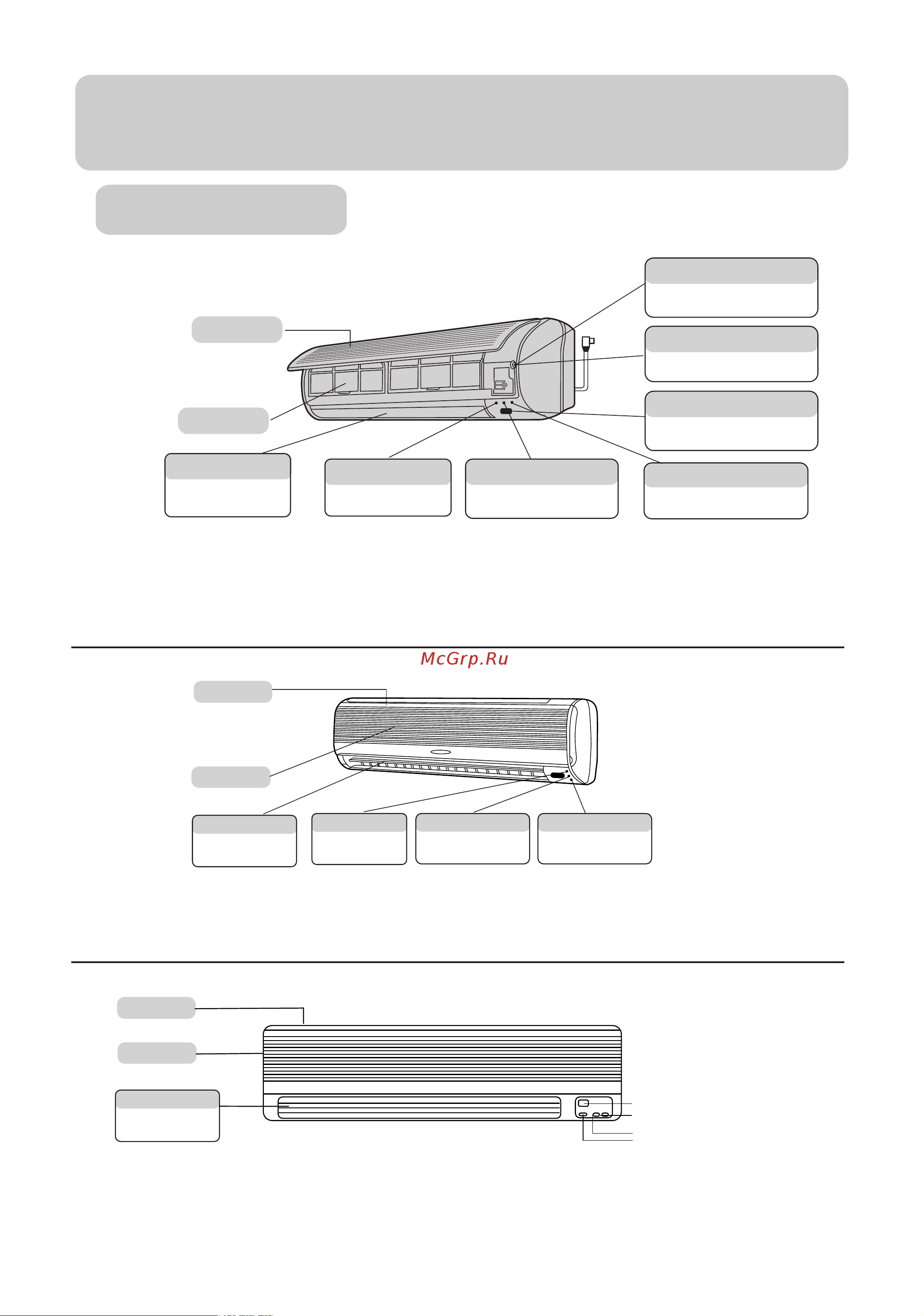

Parts and Functions
Operation mode indicator
Lights up when Timer
operation is selected.
Lights up during
compressor running.
Lights up when unit
starts.
Air filter
Vertical flap
Timer mode indicator
Inlet grille
Air filter
Inlet grille
Use remote controller to
adjust up and down air flow.
(Don't adjust it manually.)
Vertical flap
Use remote controller to
adjust up and down air flow.
(Don't adjust it manually.)
Indoor Unit
AS072AZNBA
(HSU-07CG03/R1)
AS092AMNBA
(HSU-09CG03/R1)
AS122AYNBA
(HSU-12CG03/R1)
For models:
AS162ATNBA
(HSU-16CG03/R1)
AS182ASNBA
(HSU-18CG03/R1)
For models:
AS222AJNBA
(HSU-22CG03/R1)
For models:
Used only for test running in cooling
when room temp. is below 16
o
C .
Don't use it in normal operation.
Test running switch(manual)
Emergency switch(manual)
Used when remote controller is lost or
defective. Unit will run temporarily.
Operation mode indicator
Lights up during compressor
running.
Use remote controller to
adjust up and down air flow.
(Don't adjust it manually.)
Power indicator
Lights up when Timer operation
is selected.
Remote signal receiver
A beeping sound is generated when
a signal from remote controller is
received.
Inlet grille
Air filter
Vertical flap
Lights up when unit starts.
Timer mode indicator
3
Signal Receiving Window
Running Indicator
Timer Mode Indicator
Power Indicator
Power indicator
