Parts and Functions
5
Operation
1. Mode display
AUTO
COOL
DRY
FAN
2. SWING display
3. FAN SPEED display
4. HEALTH display
5. SLEEP display
6. LOCK display
7. TIMER ON display
8. AUXILIARY HEAT display
9. SWING
10. MODE
Used to select AUTO,COOL,DRY ,HEAT
and FAN
11. CLOCK
Used to select your desired temp.
12. TIMER
Used to select TIMER ON,TIMER OFF
13. RESET
Used to reset the controller back to
normal condition
14. CODE
Used to select code A or B with a press,A
or B will be displayed on LCD.please
select A without special explanation
15. CODE display
16. SIGNAL SENDING display
17. POWER/SOFT display
18. TEMP display.
19. CLOCK display
20. TIMER OFF display
21. TEMP
Used to select your desired temperature.
22. FAN
Used to select fan speed
23. POWER ON/OFF
Used for unit start or stop
24. SLEEP
Used to select sleep mode

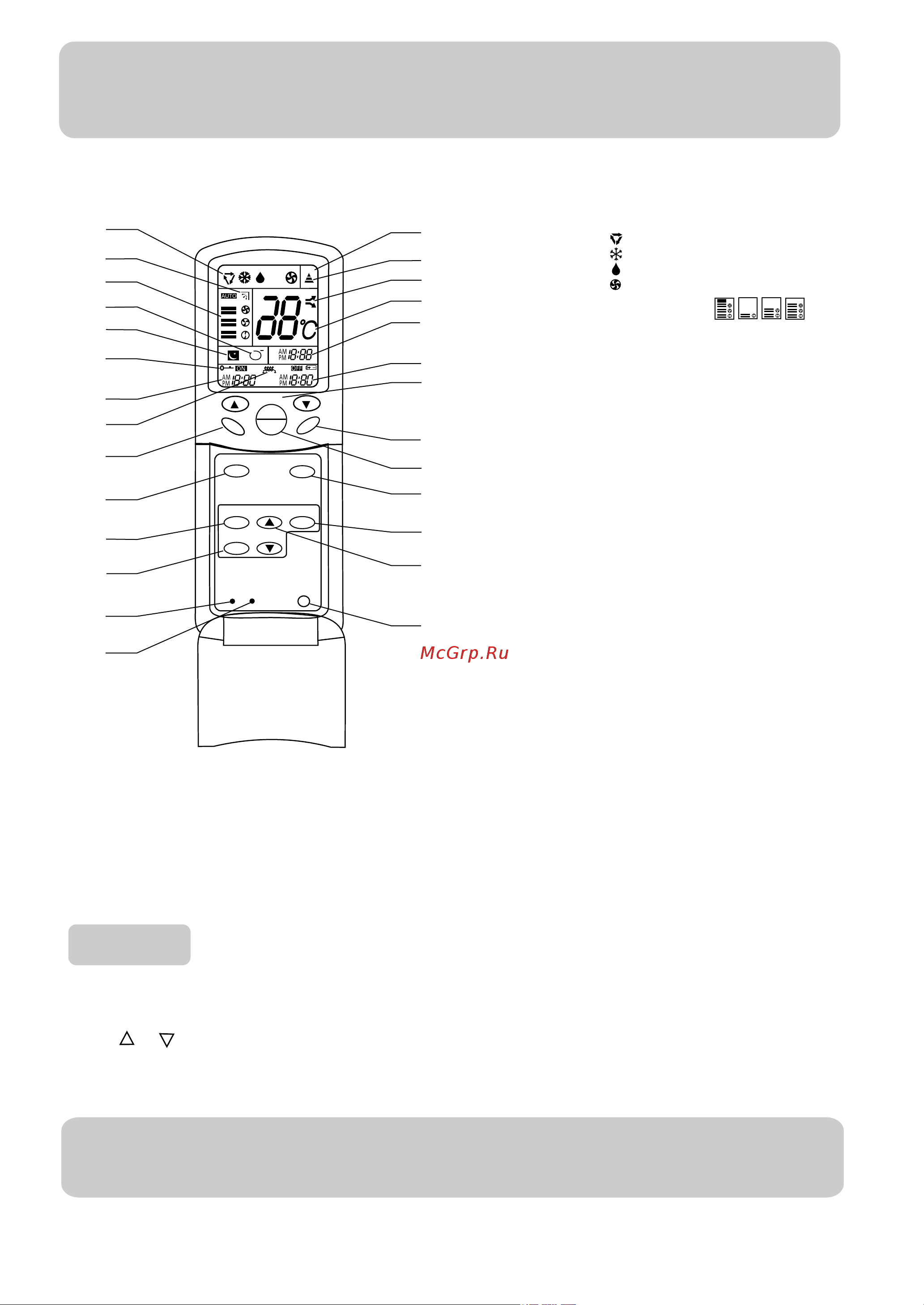

Buttons and display of the remote controller.
Clock set
When unit is started for the first time and after replacing batteries in remote controller,
clock should be adjusted as follows:
Press CLOCK button, "AM" or "PM" flashes.
Press or to set correct time. Each press will increase or decrease 1min. If the
button is kept depressed, time will change quickly.
After time setting is confirmed, press SET, "AM " and "PM" stop flashing, while clock
starts working.
After replacing with new batteries, remote controller will conduct self-check, displaying
all information on LCD.Then, it will become normal.
Hints
MED
HI
AUTO
AUTO
LO
27. LOCK
Used to lock buttons and LCD display
LOCK
RESET CODE
MODE
SLEEP
CLOCK
SET
TIMER
A
SWING FAN
B
i
on
TEMP
ON
OFF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
26. HOUR
Used to set clock and timer settings
25. SET
Used to confirm timer and clock settings
NOTE:(1)The following functions and related displays are not available :HEALTH display,AUXILIARY HEAT display,POWER/SOFT display.
(2)If the Air condition don't have the function,press code B can cause it not available.
(3)Cool only unit do not have functions and displays related with heating.
