BCL1415 BCL1815 BSL1415 BSL1815X

BCL1430 EBM1830 BSL1415X BSL1830

BSL1430

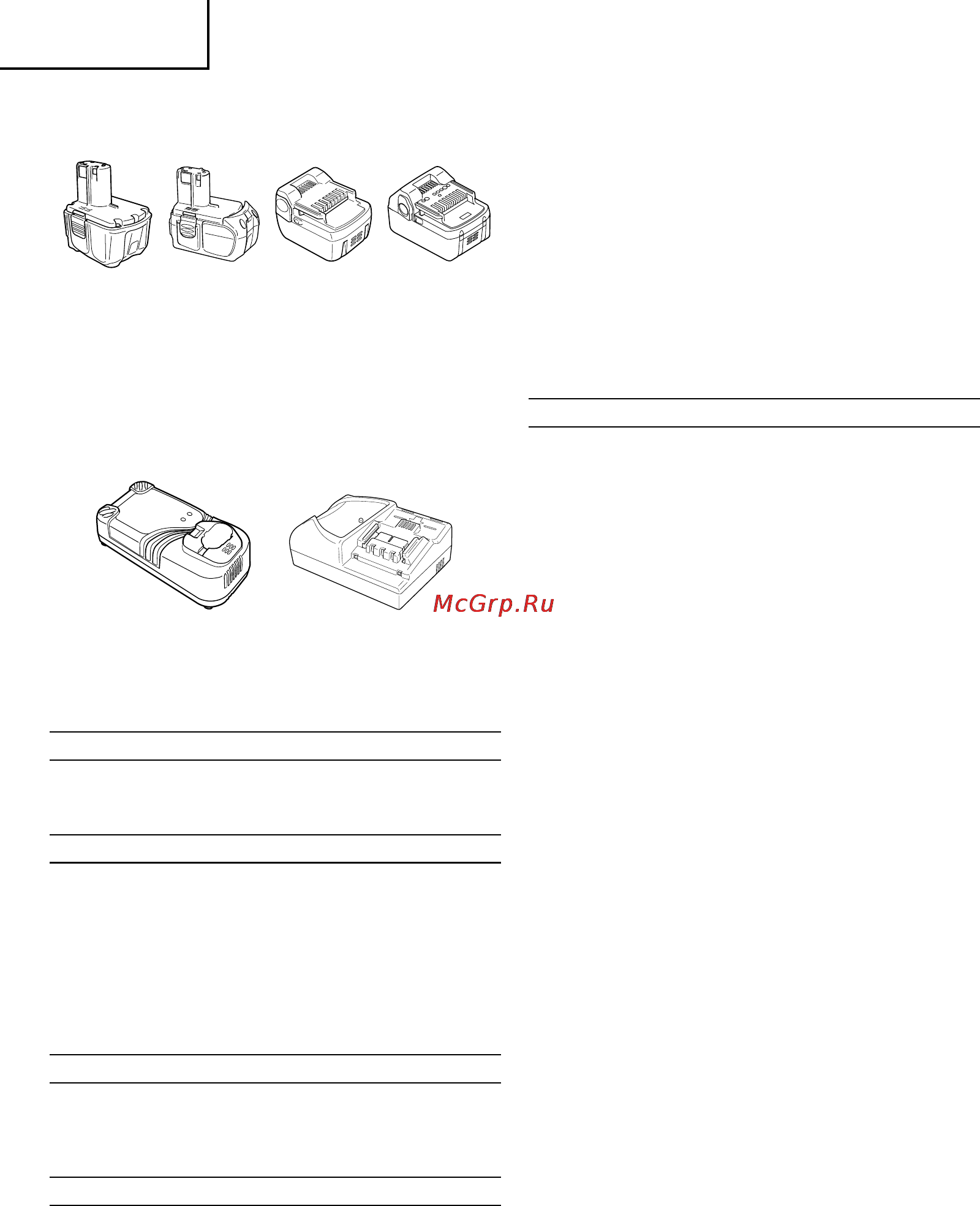

2. Charger

䡬 UC18YRL (Charging voltage: 7.2 V – 18 V)

䡬 UC18YRSL (Charging voltage: 7.2 V – 18 V)

UC18YRL UC18YRSL

Optional accessories are subject to change without

notice.

APPLICATIONS

䡬 Light-duty vacuuming of dry surfaces

䡬 Light-duty vacuuming of damp or wet surfaces

BATTERY REMOVAL/INSTALLATION

1. Battery removal

Hold the handle tightly and push the battery latch

(2 pcs.) to remove the battery (see Figs. 1, 2, 4 and 5).

CAUTION

Never short-circuit the battery.

2. Battery installation

Insert the battery while observing its polarities (see

Figs. 1, 2, 4 and 5).

CHARGING

For rechargeable batteries, please charge in according

to the handling instructions of the charger which you are

using. (Figs. 3 and 6)

PRIOR TO OPERATION

1. Setting up and checking the work environment

Check if the work environment is suitable by

following the precautions.

2. Mounting and dismounting the water guard and

filter

Before using the appliance, check that the filter is

securely mounted. (Figs. 7 and 8)

(1) Mounting

1 Match the outside diameter of the filter to the

inside diameter of the water guard and insert

as far as the filter ring will go. (Fig. 7)

2 Match the shape of the water guard (with the

filter attached) to the shape of the hole in the

dust case and insert as far as it will go (6

points). (Fig. 8)

(2) Dismounting

To dismount the water guard and the filter, follow

the above procedures in reverse.

3. Attaching and removing the suction opening

Insert the suction opening into the suction port of the

appliance as required. (Fig. 10)

HOW TO USE THE CORDLESS CLEANER

CAUTION

䡬 To prevent accidents when installing or removing

the rechargeable battery, make sure that the appliance

is switched off.

䡬 Make sure that the rechargeable battery is properly

installed.

If not properly installed, the battery may fall out,

causing injury.

1. Switch operation

Flip the switch towards you to start operation and

back to stop operation. (Fig. 11)

2. Vacuuming water

Attach the squeegee nozzle as required. (Figs. 10 and

12)

CAUTION

䡬 The maximum line on the dust case indicates the

maximum amount of water that can be vacuumed.

Do not vacuum beyond this line. (Fig. 12)

䡬 Empty the water immediately after vacuuming.

䡬 Do not carry the appliance with water in the dust

case.

3. Emptying the dust case

CAUTION

䡬 To prevent accidents, make sure the power is switched

off and remove the rechargeable battery from the

appliance.

䡬 Do not subject the dust case to strong impacts as this

may cause deformation or damage.

䡬 Empty the dust case frequently and keep the

appliance, filter, etc. clean. Failure to do so may

reduce vacuuming efficiency or cause malfunction of

the motor or odor.

(1) Press the release button and remove the dust case.

(Fig. 9)

(2) Hold the knob on the water guard (with the filter

attached) to remove it from the dust case. (Fig. 8)

(3) Empty the dust case. (Fig. 13)

(4) Take hold of the knob on the filter and remove the

filter from the water guard. (Fig. 7)

(5) Lightly tap the filter to remove all the dust. (Fig. 14)

(6) Fit the filter to the water guard. Match the outside

diameter of the filter to the inside diameter of the

water guard and insert as far as the filter ring will go.

(Fig. 7)

(7) Match the shape of the water guard (with the filter

attached) to the shape of the hole in the dust case

and insert as far as it will go (6 points). (Fig. 8)

(8) Insert the projecting part of the appliance into the

hole in the dust case and fit the dust case to the

appliance. (Fig. 9)
