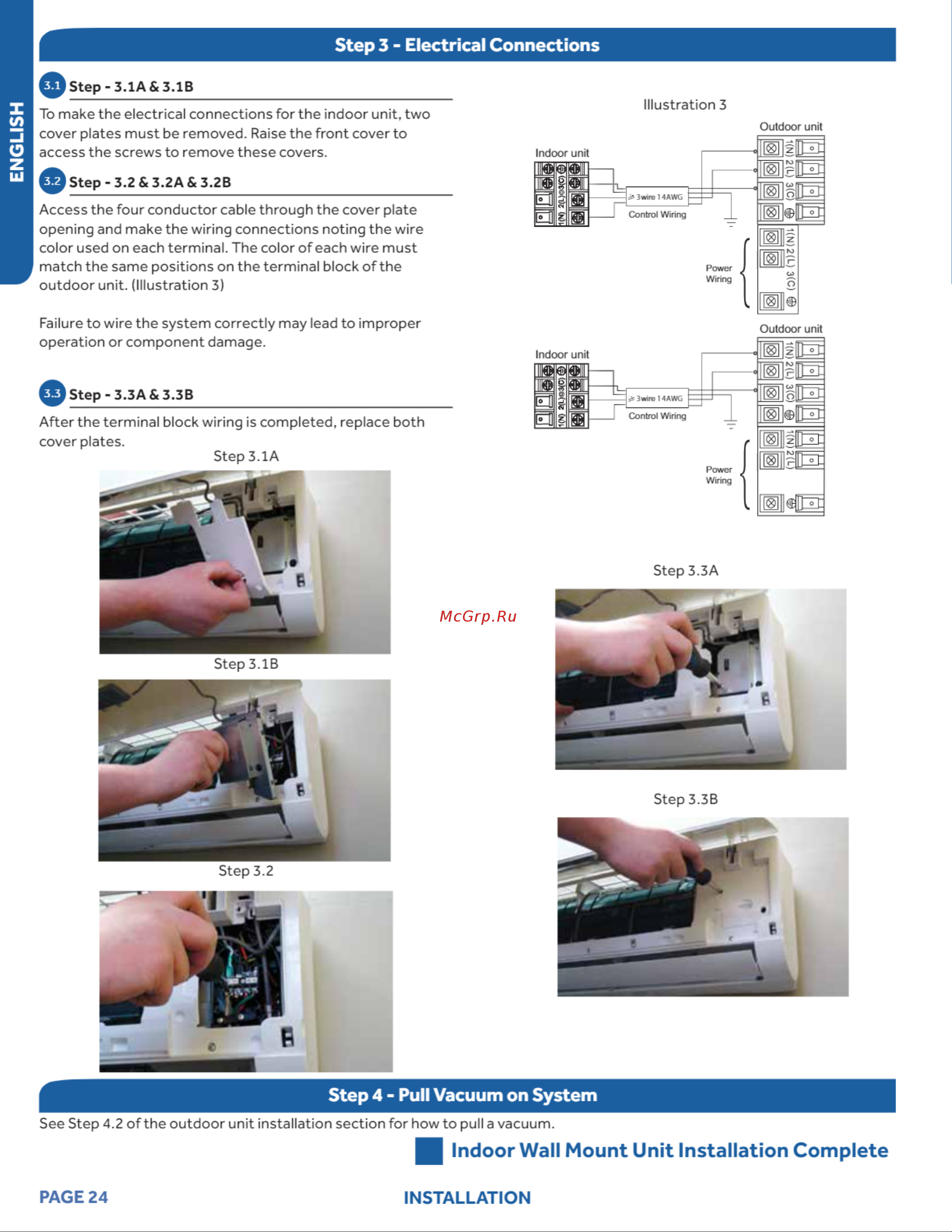

Step 3 Electrical Connections ENGLISH ф Step ЗЛА 3 1B Illustration 3 To make the electrical connections for the indoor unit two cover plates must be removed Raise the front cover to access the screws to remove these covers ф Step 3 2 3 2A 3 2B Access the four conductor cable through the cover plate opening and make the wiring connections noting the wire color used on each terminal The color of each wire must match the same positions on the terminal block of the outdoor unit Illustration 3 Failure to wire the system correctly may lead to improper operation or component damage Outdoor unit Step 3 3A 3 3B After the terminal block wiring is completed replace both cover plates Step 3 1 A Step 3 3A Step 3 1B Step 3 3B Step 3 2 Step 4 Pull Vacuum on System See Step 4 2 of the outdoor unit installation section for how to pull a vacuum HI Indoor Wall Mount Unit Installation Complete PAGE 24 INSTALLATION
