Haier ABH090K5ERG [12/28] High static ducted specifications
![Haier ABH090K5ERG [12/28] High static ducted specifications](/views2/1812951/page12/bgc.png)
Model
Indoor unit ADH105H1ERG ADH125H1ERG ADH140H1ERG ADH160H1ERG
Outdoor unit 1UH105N1ERG 1UH125P1ERG 1UH140P1ERG 1UH160P1ERG
Nominal
performance
data
Rated capacity
Cooling
kW nom (min~max)
10.5 (2.5~11.0) 12.5 (3.5~15.0) 14.0 (3.5~15.0) 15.5 (3.5~17.5)
Heating
kW nom (min~max)
11.5 (2.5~12.0) 14.0 (4.0~18.0) 16.0 (6.0~19.0) 18.0 (6.0~20.0)
Rated power input
Cooling
kW nom (min~max)
3.00 (0.5~5.3) 3.57 (1.0~6.5) 4.11 (2.0~7.0) 4.83 (2.0~7.2)
Heating
kW nom (min~max)
3.10 (0.5~5.3) 3.88 (1.0~6.5) 4.40 (2.0~7.0) 4.99 (2.0~7.2)
EER 3.50 3.50 3.41 3.21
COP 3.71 3.61 3.64 3.61
Indoor Unit
Electrical Power Input
Watt
540 550 600 600
Performance
Air fl ow (H/M/L/LL)
m3/h
2880/2380/1880/1380 3250/2750/2250/1850 3600/3100/2600/2100 4000/3400/2800/2200
l/s
800/660/520/380 900/760/620/510 1000/860/720/580 1115/945/780/615
ESP
pa
37-210
Sound pressure level (H/M/L)
dB (A)
45/41/37/33 47/44/42/39 49/46/43/40 51/47/44/40
Installation
External dimensions (WxDxH)
mm
1350x490x425
Shipping dimensions (WxDxH)
mm
1565x725x510
Net/Shipping weight
kg
59/70 61/72 61/72 61/72
Supply Air Flange
mm
1046 x 306
Return Air Flange
mm
1163 x 353
Controls
Wired Controller
Optional
YR-E17
Wired Controller (time-clock)
Optional
YR-E16a or YR-E16b
Wireless Controller
Optional
YR-HD & RE-02
WI-FI
Optional
KZW-001
Outdoor Unit
Electrical
Parameters
Power supply
Ph/V/Hz
1/230/50
Rated Amps
Cooling
Amp
13.3 16.5 18.5 21
Heating
Amp
13.7 17.5 19.8 21.5
Maximum Amps
Amp
23.2 30.0 32.0 32.0
Performance
Air fl ow (H)
l/s
1110 1805 1950 2080
Sound power level
dB (A)
68 69 70 73
Sound pressure level
dB (A)
52 52 53 54
Installation
External dimensions (WxDxH)
mm
950x370x965 950x370x1350
Shipping dimensions (WxDxH)
mm
1050x450x1095 1090x480x1500
Net/Shipping weight
kg
82/94 105/118 108/121 105/118
Compressor type Twin rotary
Refrigerant type R410A
Refrigerant liquid pipe
mm
9.52
Refrigerant gas pipe
mm
15.88 19.05
Max pipe length
m
50 75
Max drop between I.U.&O.U
m
30
Pre Charge of refrigerant
kg
2.5 3.7 3.7 3.7
Pre-charged line length
m
20 30 30 30
Additional gas charge
g/m
45 45 45 45
Working
Temperature
Cooling (Min-Max)
°C
-15 to +50
Heating (Min-Max)
°C
-20 to +24
Outdoor Unit
1U105N1ERG
Outdoor Unit
1U125P1ERG
1U140P1ERG
1U160P1ERG
1U125P1ERK
1U140P1ERK
Indoor Unit
ADH105H1ERG
ADH125H1ERG
ADH140H1ERG
ADH160H1ERG
180° sine wave
DC motor
Sleep mode
Evaporator
self-cleanin g
DRY function
Auto mode
Double 8 display
Auto restart
24 hours time r
Child lock
-20°C heating-15°C cooling
Self-diagnosis
function
Built-in valve
Group
control
Central
control
BMS
WI-Fi Control
Compatible
Blue
B
u
e
Adjustable ESP
3 minutes
protection
Nominal condition: as per AS/NZS3823.2
Indoor temperature (cooling): 27°C DB/19°C WB, indoor temperature (heating): 20°C DB
Outdoor temperature (cooling): 35°C DB/24°C WB, outdoor temperature (heating): 7°C DB/6°C WB

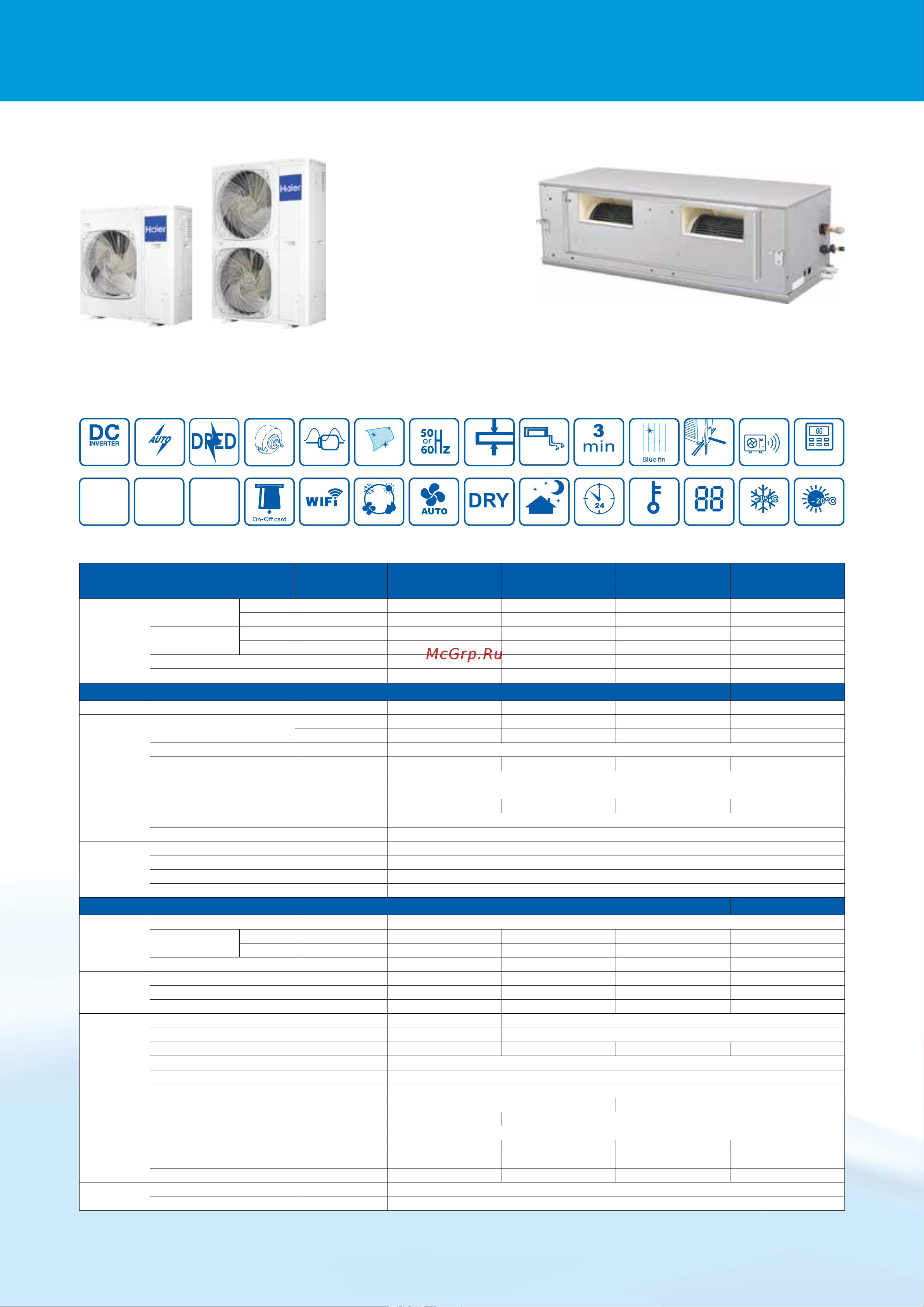

HIGH STATIC DUCTED SPECIFICATIONS
- 12 -
