Installation figure please refers to 4U30HS2ERA.

1. Do not connected the embedded branch piping and the outdoor unit when only carrying out piping work without connecting the indoor

unit in order to add another indoor unit later. Make sure no dirt or moisture gets into either side of the embedded branch piping.

2.It is impossible to connect the indoor unit for one room only.

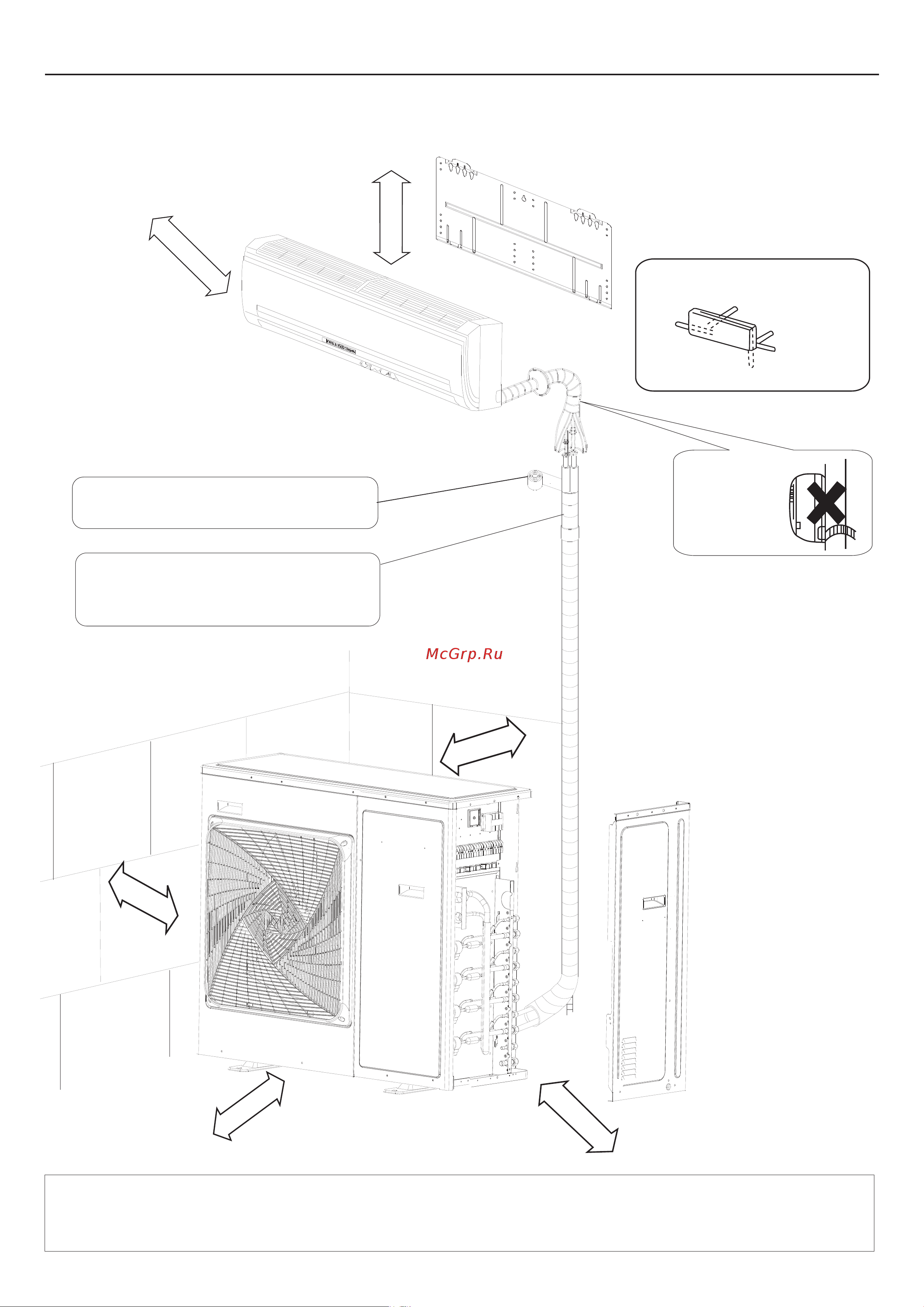

Installation drawings of indoor and outdoor units

If there is the danger of the unit falling or overturning, fix the unit with foundation bolts, or with wire or other means.

If the location does not have good drainage, place the unit on a level mounting base(or a plastic pedestal).

Install the outdoor unit in a level position. Failure to do so may result in water leakage or accumulation.

Arrangement of piping directions

Rear left

Rear right

Right

Below

Left

Wrap the insulation pipe with the finishing tape

from bottom to top.

Cut thermal insulation pipe to an appropriate

length and wrap it with tape, making sure that no

gap is left in the insulation pipe's cut line.

more than 10cm

more than 60cm

more than 25cm

More than 5cm

More than 10cm

Attention must be

paid to the rising

up of drain hose
