Temp
Speed Up
Spin
Speed
Delay Start/Pause
DIRECT MOTION
10kg
8 9
1. Door
2. Detergent/Softener drawer
3. Worktop
4. Control panel
5. Pump filter cover
6. Adjustable feet

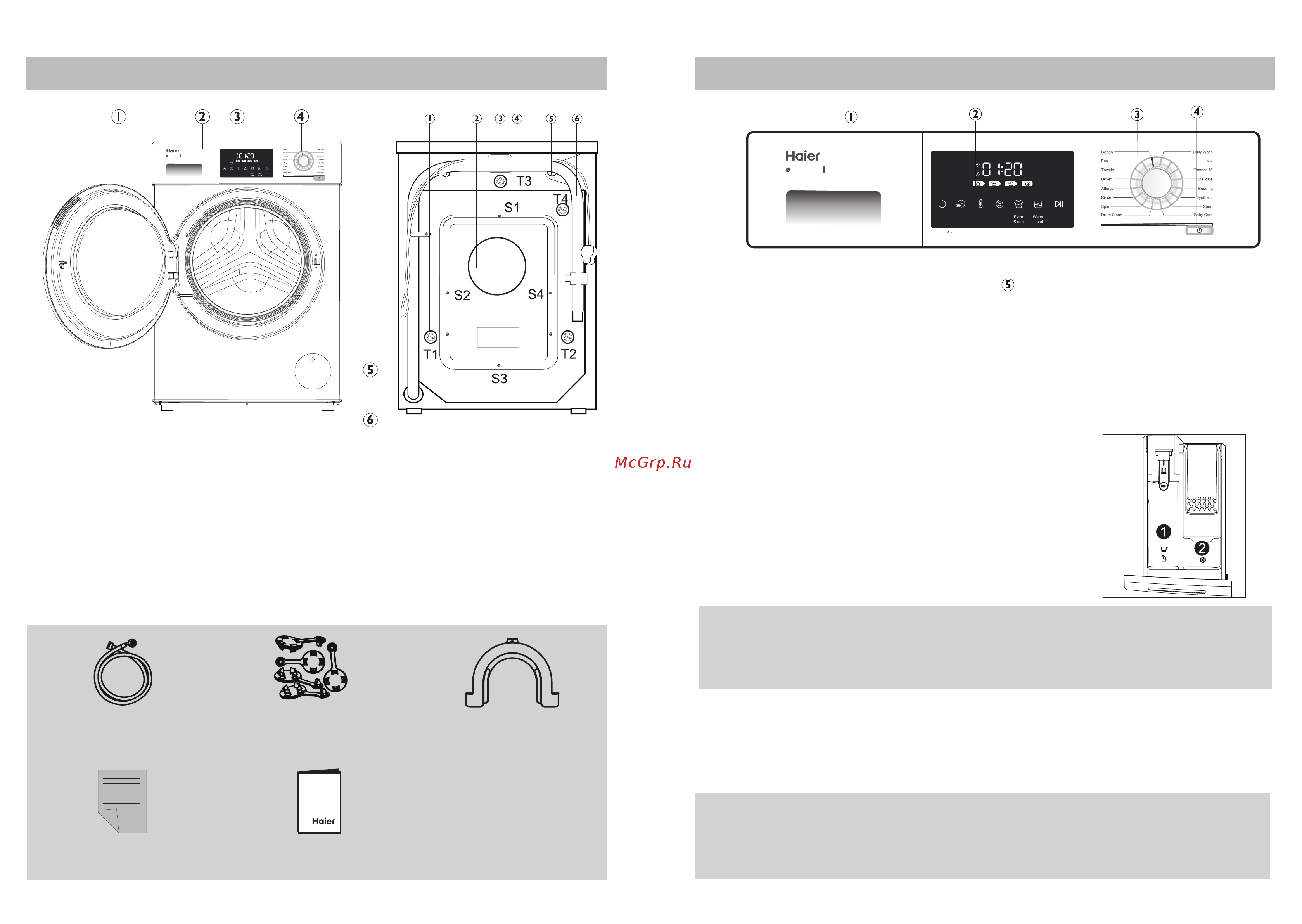

Production description
Control panel
Accessories
Check the accessories and literature in accordance with this list.
1. Detergent/Softener drawer
2. Display
3. programme selector
4. “On/Off” button
5. Function button (a-g)
a. Delay
b. Speed up
c. Temperature
d. Spin Speed
e. Extra Rinse
f. Water Level
g. “Start/Pause” button
(a-g)
Open the drawer and you will see two compartments
Compartment 1: De tergent or Washing powder
Compartment 2: Softener, Conditioning agent e tc.
Detergent drawer
The recommendation on the type of de tergents is
dependant on the various washing temperatures.
Please refer to the manual of detergent.
Programme selector
By turning the dial one of 16 programmes can be selected, related LED will
light up and its de fault settings will be displayed.
“On/Off” button
Touch this button gently to switch on . The display will illuminate . Touch it
again for about 2 seconds to switch off. If no panel element or programme is
activated after a while, the machine will shut d own automatically.
1 Transportation bolts (T1-T4)
2 Back cover
3 Back cover screws(S1-S6)
4 Power cord
5 Water inlet valve
6 Drain hose
Temp
Speed Up
Spin
Speed
Delay Start/Pause
DIRECT MOTION
10kg
This drawing may be slightly different from the layout of the washing machine you have
just purchased.
S5 S6
Display
If the appliance is on display will light up the actual status on six different sections (see
next pages). During operation display will be deactivated after a while (Energy saving
mode) until programme selector is turned at random.
Inlet hose
assembly
Warranty-card
5 blanking plugs
User manual
Drain hose
bracket
