11. Outdoor performance curves
77-

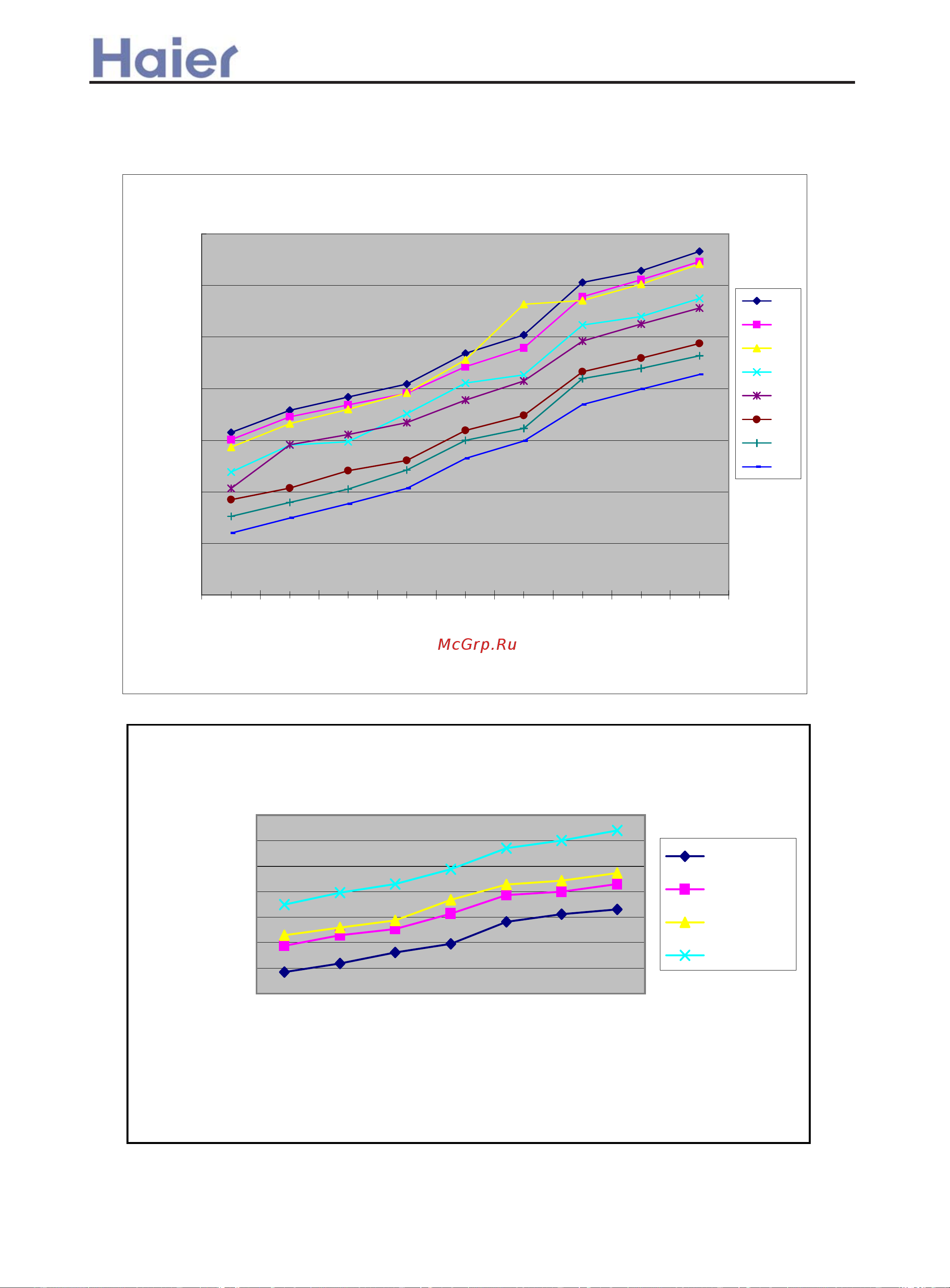

cooling capacity-temperature curves
4000
5000
6000
7000
8000
9000
10000
11000
18/12℃
18/14℃
20/15℃
22/16℃
25/18℃
27/19℃
30/22℃
32/23℃
32/24℃
indoor temp.(DB/WB)
cooling capacity (W)
18℃
20℃
25℃
32℃
35℃
40℃
43℃
46℃
heating capacity and indoor/outdoor temp. curves
6000
7000
8000
9000
10000
11000
12000
13000
—5
℃
0
℃
5
℃
7
℃
/6
℃
10
℃
15
℃
24
℃
outdoor temp.
heating capacity (W)
20/15℃
20/12℃
20/14.5℃
27/18℃
