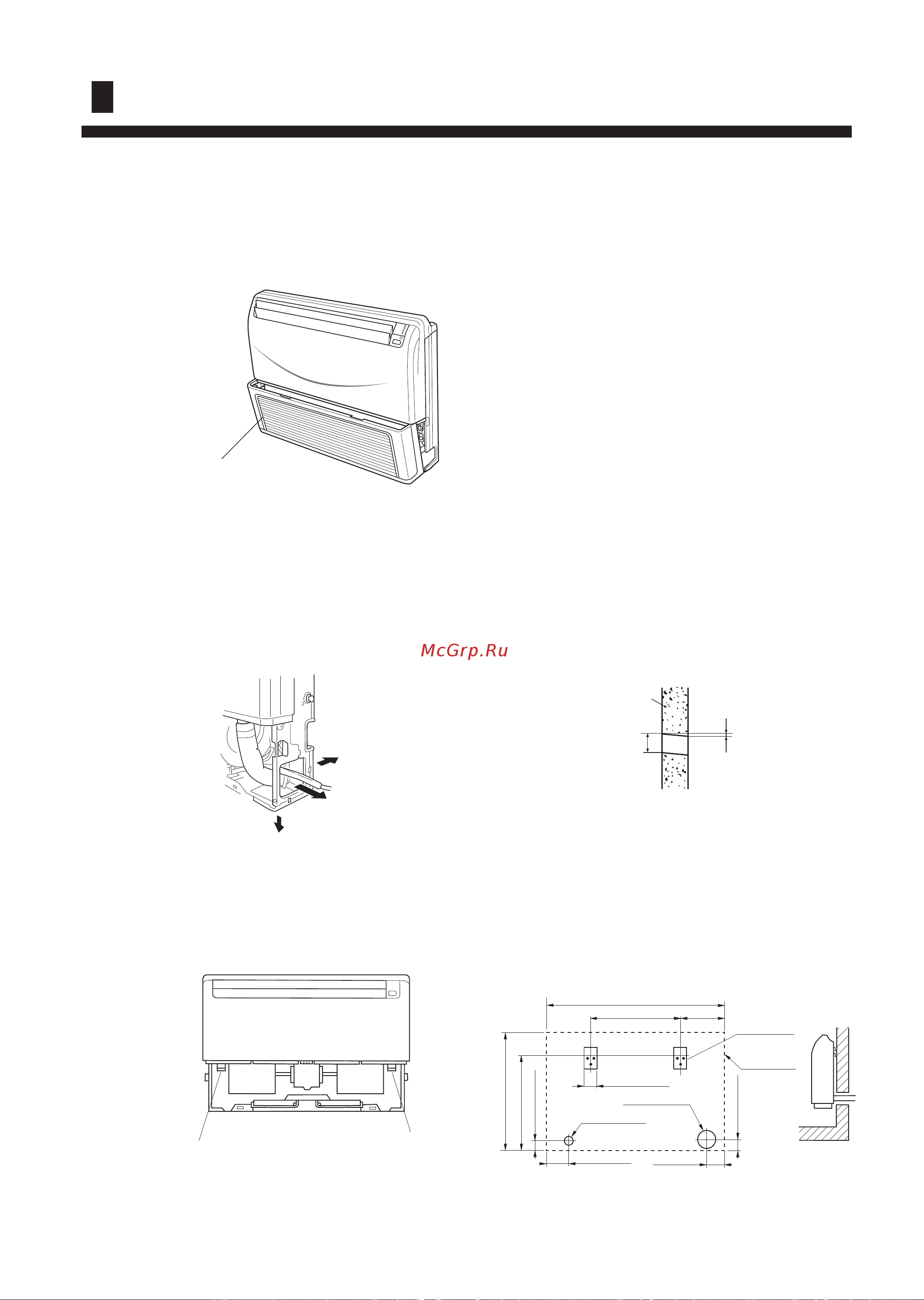

Installation Procedures
Open the intake grill and remove the three or four or six screws.(Fig. 1)
Remark:
The main unit can be wired before the indoor
unit is installed. Select the most appropriate
installation order.
A. FLOOR CONSOLE TYPE
1. DRILLING FOR PIPING
Select piping and drain directions.(Fig.2)
The piping and drain can be made in three
directions as shown below.
(Fig.2)
rear
right
down
1. REMOVE THE INTAKE GRILL
PREPARING INDOOR UNIT INSTALLATION
When installing set to wall, install the accessory wall
bracket at the position shown in Fig.5,and mount the
set to it.
Fig. 1
Intake grill
(Fig. 5)
Wall bracket
Side of set
65.5cm
99cm
50cm
24.5cm
6.5cm
12.5cm 10cm
6.5cm
53cm
4.5cm
7cm hole
3.5cm hole
The drain hose can be connected to either the
left or right side.(Fig.3)
(Fig. 3)
Drain hose (Left side) Drain hose (Right side)
Wall
7cm
6mm
Indoor unit outdoor unit
(Fig.4)
When the directions are selected, drill a 7 cm dia.
hole on the wall so that the hole is tilted downward
toward the outdoor for smooth water flow. When
the pipe is led out from the rear, make a hole in
Fig.4, at the position shown.
