Haier HW-09CV03 [12/16] Installation instruction

Installation instruction

1. Select position where the structure is firm.

2. Select position where the air inlet and outlet are smooth without obstacles.

3. Select position where the cooled air can be blown to every corner.

4. Select position where there's no direct sunlight. If the sunlight is inevitable, sun shading

device is required.

5. Select position where the outdoor airflow will not influence the neighbors.

6. Select position where the drainage is smooth.

7. Select position where there's no dangerous gas or oil smoke nearby.

8. An extension cord is not recommended.

It should be installed like this: the back side (outdoor side) is lower so that the

drained water can flow out smoothly.

>700mm

>400mm

Selection of the installation position

Name

Manual

Water outlet pipe Seal ring

111

Figure

Quantity

The enclosed accessories of the conditioner are:

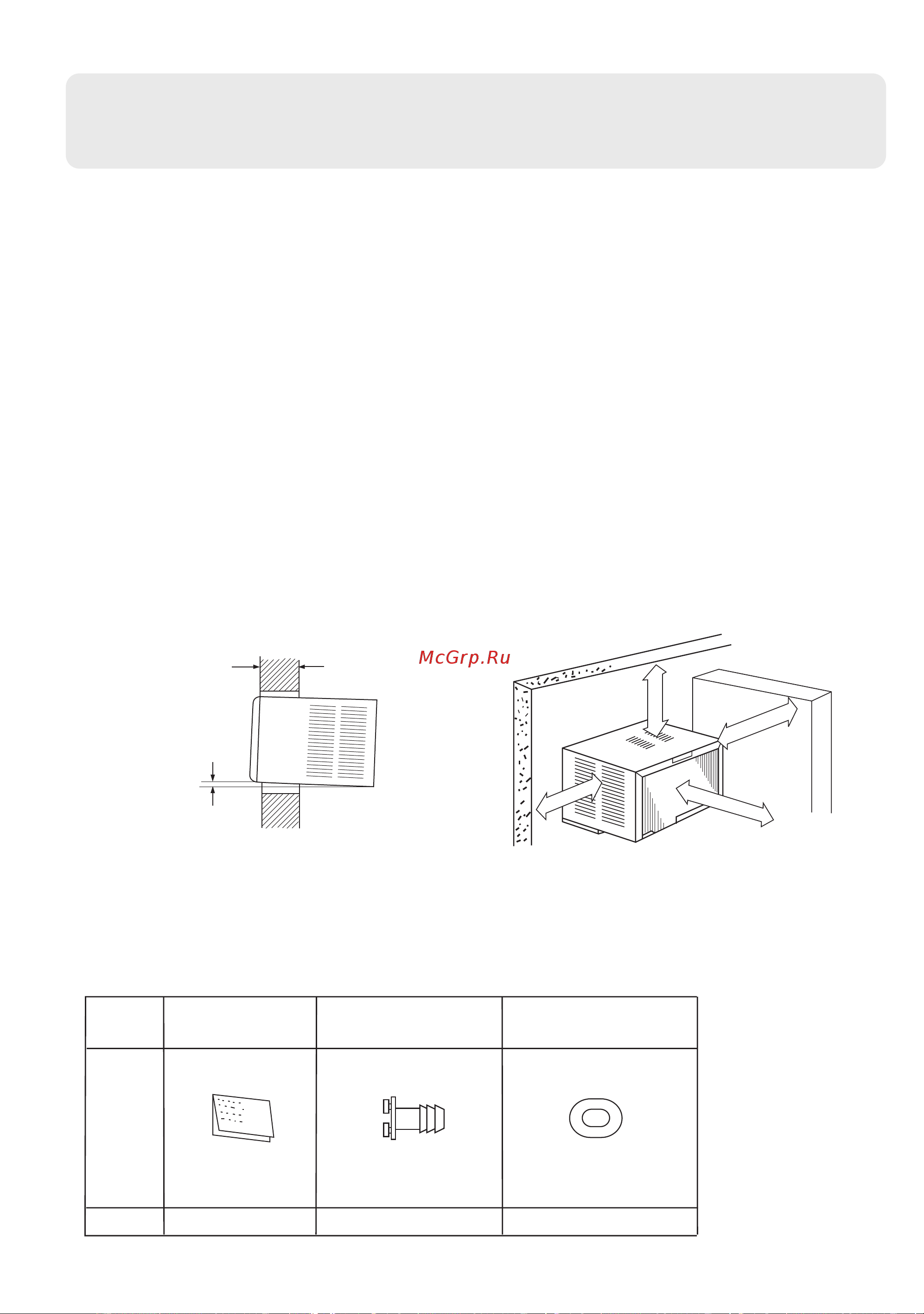

Installation diagram

Requirements on electricity

Be sure to use specific power circuit.

Width of the wall should be

less than 295mm

5 ~ 10mm
