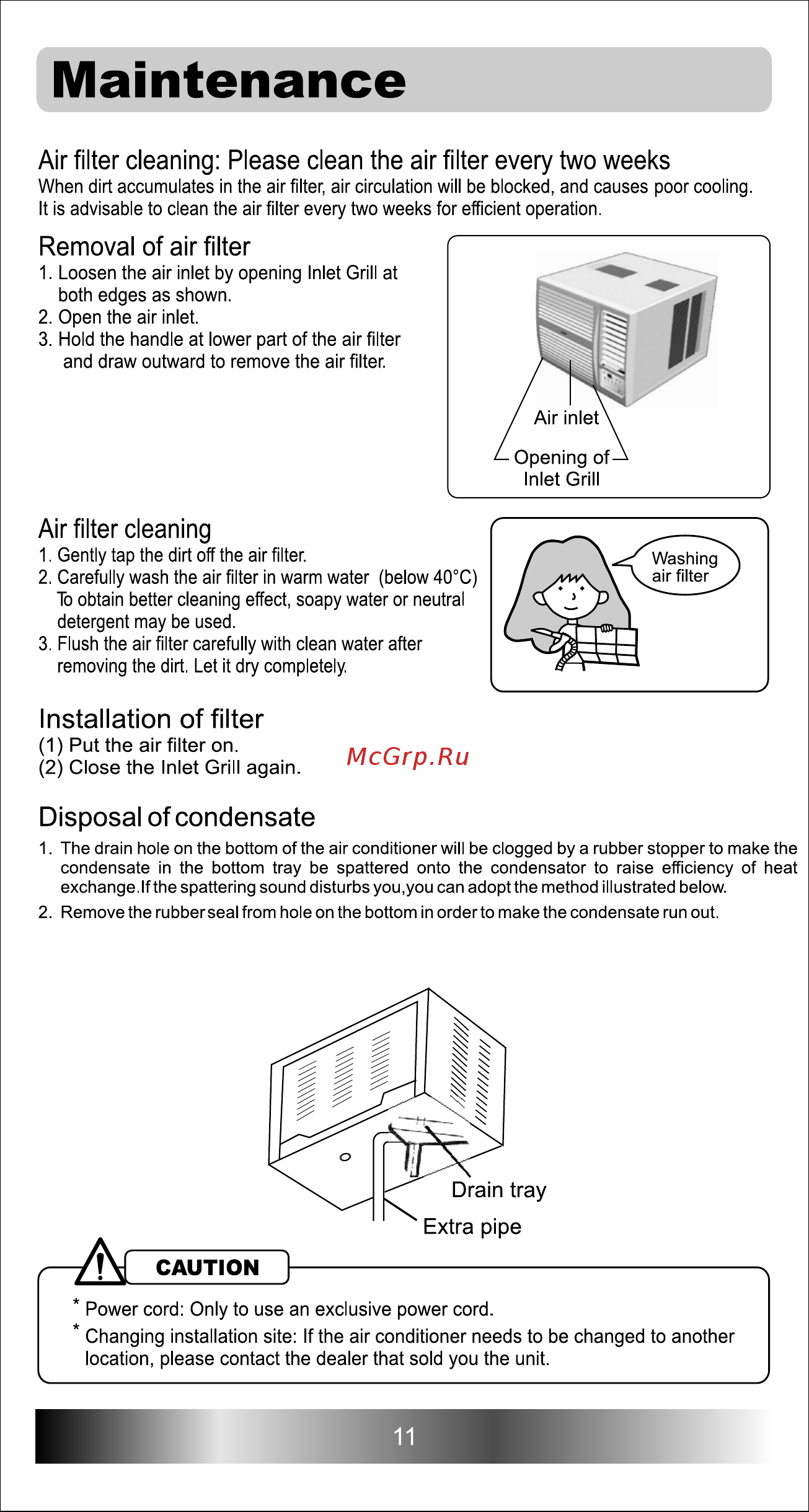

Maintenance Air filter cleaning Please clean the air filter every two weeks When dirt accumulates in the air filter air circulation will be blocked and causes poor cooling It is advisable to clean the air filter every two weeks for efficient operation Removal of air filter 1 Loosen the air inlet by opening Inlet Grill at both edges as shown 2 Open the air inlet 3 Hold the handle at lower part of the air filter and draw outward to remove the air filter Air filter cleaning 1 Gently tap the dirt off the air filter 2 Carefully wash the air filter in warm water below 40 C To obtain better cleaning effect soapy water or neutral detergent may be used 3 Flush the air filter carefully with clean water after removing the dirt Let it dry completely Installation of filter 1 Put the air filter on 2 Close the Inlet Grill again Disposal of condensate 1 The drain hole on the bottom of the air conditioner will be clogged by a rubber stopper to make the condensate in the bottom tray be spattered onto the condensator to raise efficiency of heat exchange If the spattering sound disturbs you you can adopt the method illustrated below 2 Remove the rubber seal from hole on the bottom in order to make the condensate run out CAUTION Power cord Only to use an exclusive power cord Changing installation site If the air conditioner needs to be changed to another location please contact the dealer that sold you the unit 11
