Haier MVAH042MV2AA [10/24] Installation procedures

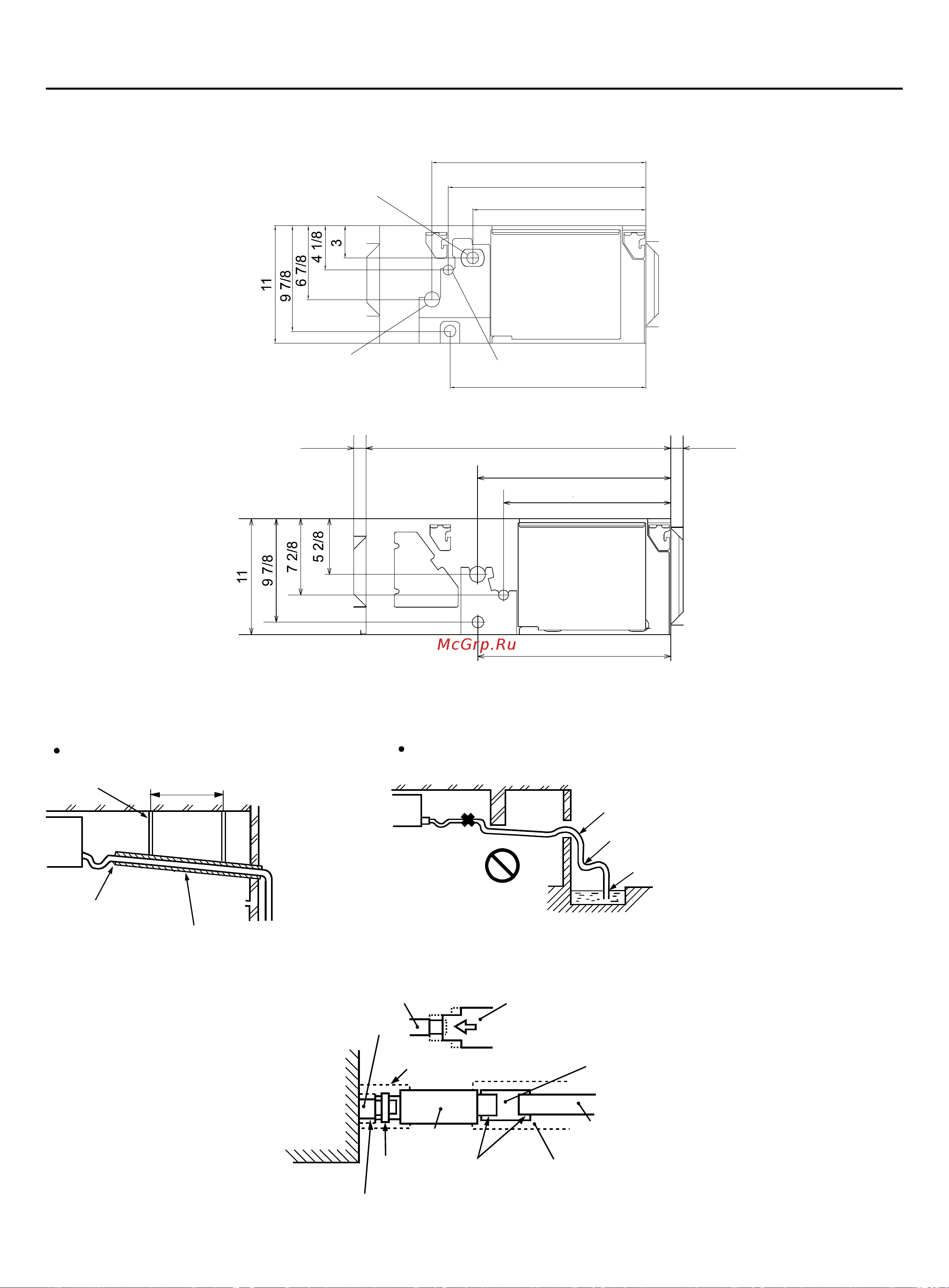

![Haier MVAH048MV2AA [10/24] Installation procedures](/views2/1820495/page10/bga.png)
8
wash port
wash port
main unit
drainage hose
joint (purchased at local shop)
sealing washer [for insulation]
(accessory)
hard PVC tube (purchased at local shop)
sealing washer [for insulation](accessory)
sealing washer [for insulation](accessory)
thread clip
(accessory)
drainage hose
binding
39 3/8~78 6/8in
Proper Piping
hanging bolt
heat insultor
gradient of 1/100 or over
Improper Piping
air outlet port
avoid lobing
avoid curving
don't put pipe
into water
(a) To prevent water flowing back into air conditioner when the unit stops running, drain hose should decline to the drainage
side with an inclination of above 1/100. Drain hose expansion or water accumulation should be prevented, or else it will
cause abnormal noise.
20 1/8
drain pipe
18 5/8
16 1/4
gas pipe
liquid pipe
18 3/8
4. Drainpipes
MVAH009-030MV2AA
18 3/8
16
29
1 1/8
1 1/8
18 3/8
MVAH036-048MV2AA
unit: in
Installation Procedures
(b) Please use the accessory drain hose to connect indoor unit's water outlet and PVC pipe. Use snap rings to tighten
them as shown in the following figure:
