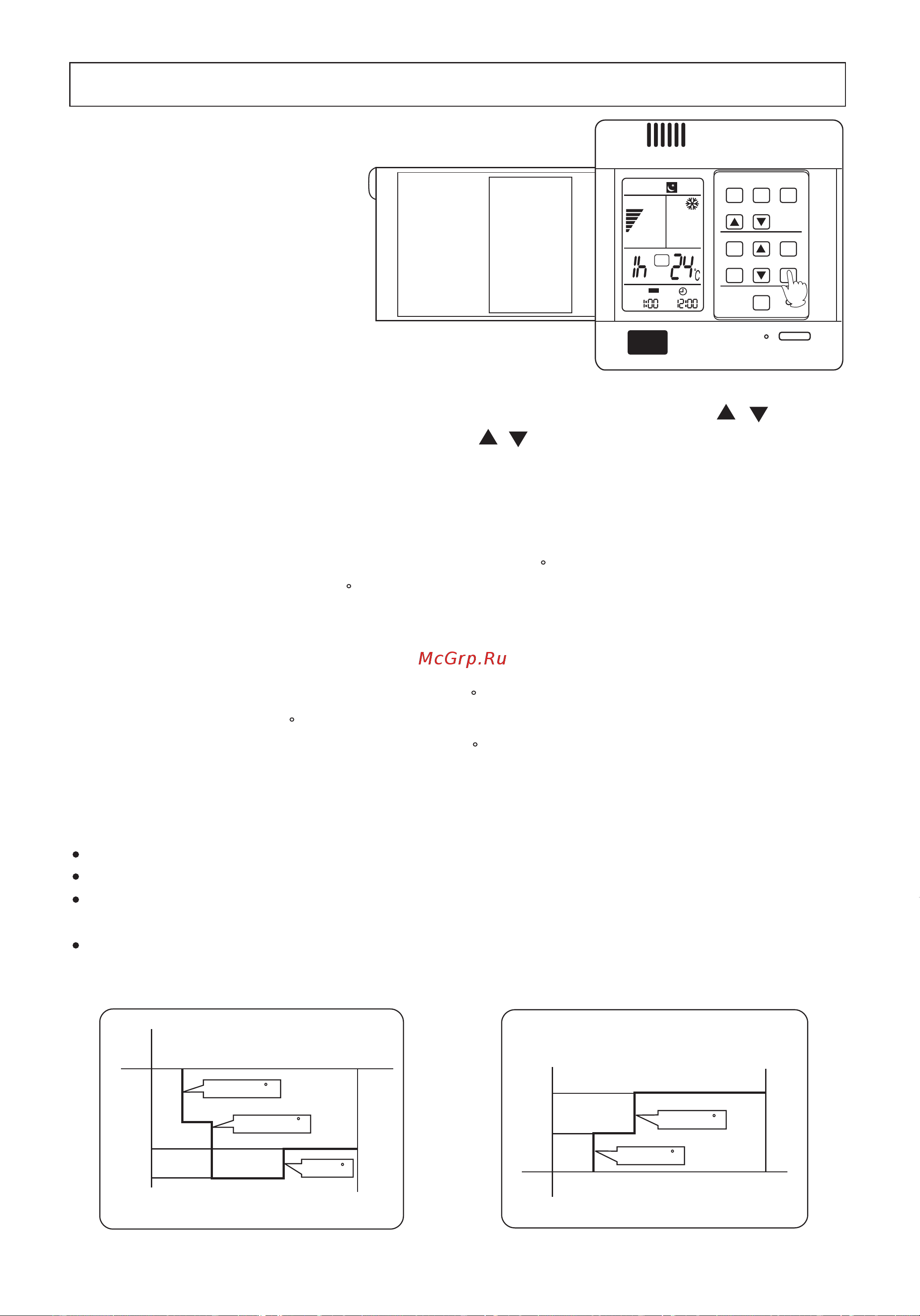

Haier HBU-18HD03/R1 [12/23] Guide to operation
![Haier HBU-18HD03/R1 [12/23] Guide to operation](/views2/1821385/page12/bgc.png)
about 6 hrs
1 hr
1 hr
increase 1 C
increase 1 C
At night, before going to bed
you can press down the
SLEEP button on the controller
and the air-conditioner will run
by the comfortable sleeping
mode to make you sleep more
comfortable.
One hour after sleeping operation start, the temp. is 1 C higher than the setting one. After
another hour the temp. rises 1 C and then run continuously for another 6hrs' and then
close. The actual temp. is higher than the setting one which is to prevent from being too
cool to your sleep.
In cooling, dehumidifying mode
One hour after start up, the temp. decrease 2 C lower than the setting one. After another
hour decrease by more 2 C.
The temperature will automatically rise by 1 C after another 3hrs' operation, and then
automatically close after 3hrs' continuous operation. The actral temperature is lower than
the setting one which is to prevent from being too hot to your sleep.
In heating mode
SETTING T
SLEEP RUN BEGINS SLEEP RUN STOPS
1 hr
1 hr
3 hrs
about 3 hrs
decrease 2 C
decreases 2 C
increase1 C
SHUT DOWN
SLEEP RUN STOPS
Heat mode
SLEEP RUN BEGINS
SETTING T
SHUT DOWN
Cooling mode
Comfortable Sleep
Note:
In AUTO mode, unit will run in SLEEP function according to the operation mode.
After setting SLEEP function, it is forbidden to calibrate clock.
If the set sleep-time does not reach 8 hours, the unit will stop operation automatically
after set time is complete.
Set "TIMER-OFF" function first, then set SLEEP, and the sleep-set is performance; set
TIMER-ON function first, the sleep function can only be set before TIMER-ON; if set
theSLEEP function first, the TIMER function can not be set.
Press SLEEP button once to make the air conditioner have the previous-set sleep time
(first power-on is "1h"), the sleep symbol will appear. Press time button / , you can
choose the time in 1~8 hours. Each press of / , the time increases/reduces 1 hour
and "xh" appears in the humidity setting part, "OFF" appears in "TIMER OFF" display part
and timer-off time; press SLEEP button again to cancel sleep function, the sleep symbol
diappears.
MODE
FAN SWING
TEMP
CLOCK SET
TIMER SLEEP
RESET
FILTER RESET
ON/OFF
AM
SET
OFF
GUIDE TO OPERATION
