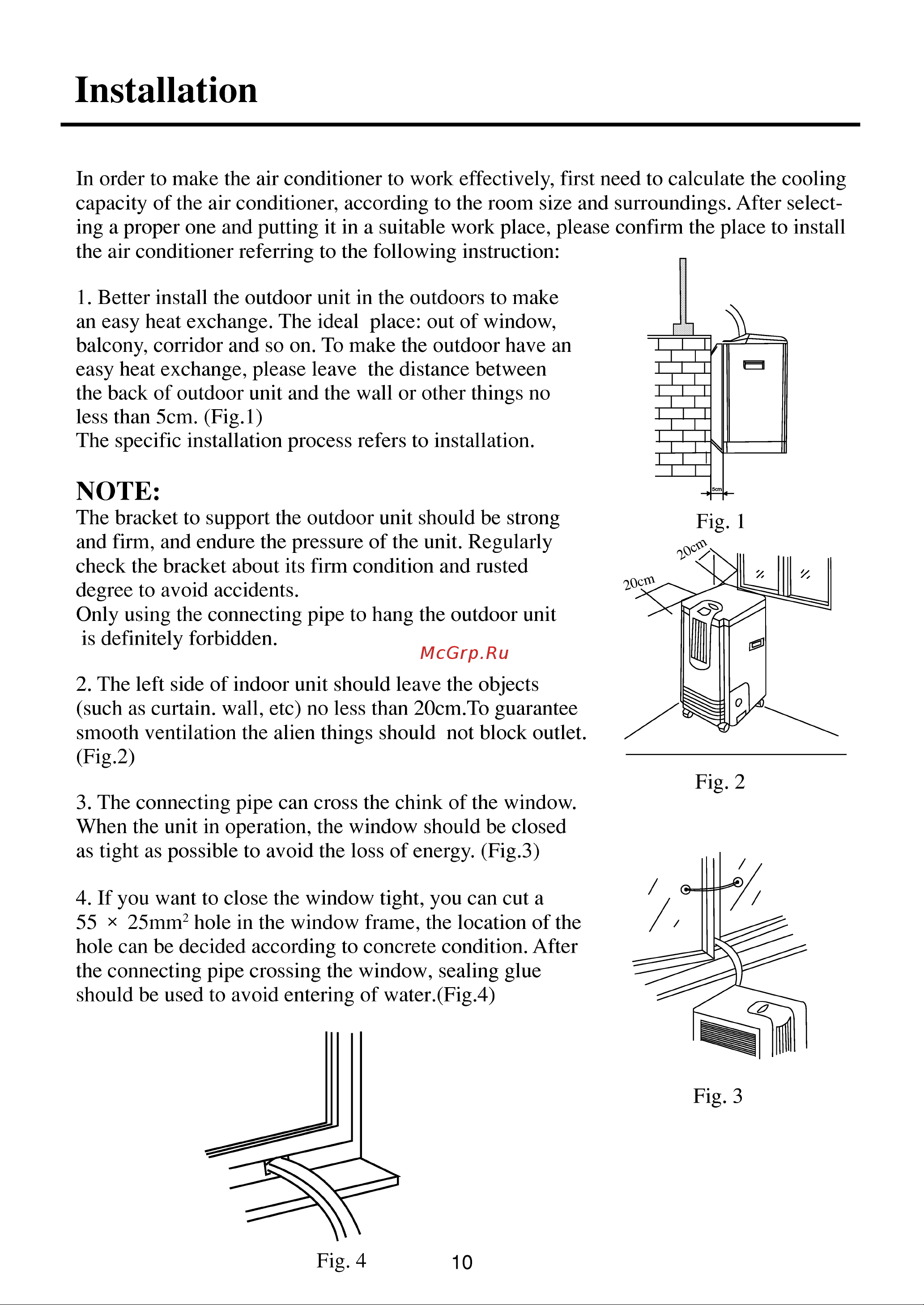

Installation In order to make the air conditioner to work effectively first need to calculate the cooling capacity of the air conditioner according to the room size and surroundings After select ing a proper one and putting it in a suitable work place please confirm the place to install the air conditioner referring to the following instruction 1 Better install the outdoor unit in the outdoors to make an easy heat exchange The ideal place out of window balcony corridor and so on To make the outdoor have an easy heat exchange please leave the distance between the back of outdoor unit and the wall or other things no less than 5cm Fig l The specific installation process refers to installation NOTE The bracket to support the outdoor unit should be strong and firm and endure the pressure of the unit Regularly check the bracket about its firm condition and rusted degree to avoid accidents Only using the connecting pipe to hang the outdoor unit is definitely forbidden 2 The left side of indoor unit should leave the objects such as curtain wall etc no less than 20cm To guarantee smooth ventilation the alien things should not block outlet Fig 2 3 The connecting pipe can cross the chink of the window When the unit in operation the window should be closed as tight as possible to avoid the loss of energy Fig 3 4 If you want to close the window tight you can cut a 55 x 25mm2 hole in the window frame the location of the hole can be decided according to concrete condition After the connecting pipe crossing the window sealing glue should be used to avoid entering of water Fig 4 10
