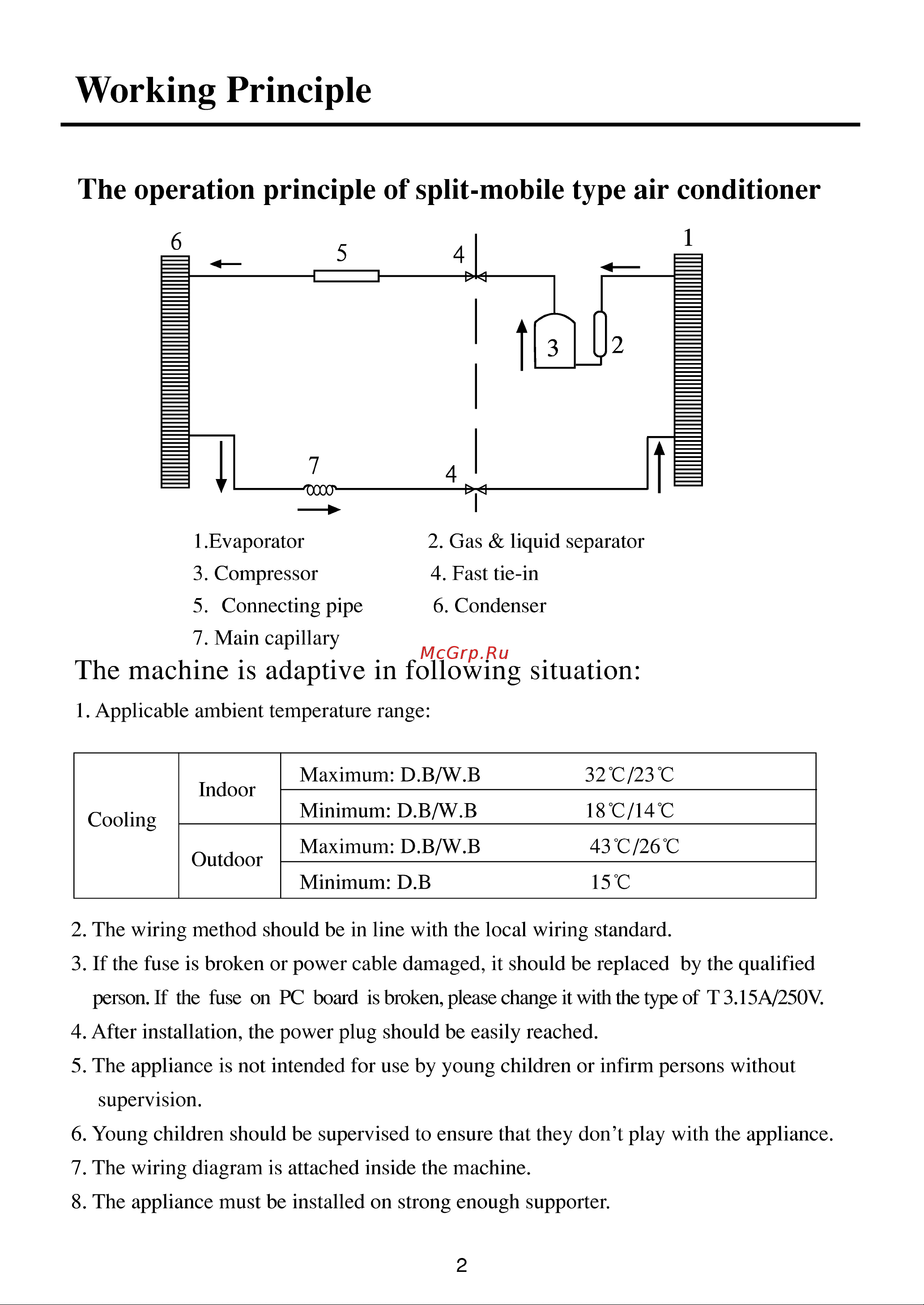

Working Principle The operation principle of split mobile type air conditioner 1 Evaporator 2 Gas liquid separator 3 Compressor 4 Fast tie in 5 Connecting pipe 6 Condenser 7 Main capillary The machine is adaptive in following situation 1 Applicable ambient temperature range Indoor Cooling Outdoor Maximum D B W B 32 C 23 C Minimum D B W B 18 C 14 C Maximum D B W B 43 C 26 C Minimum D B 15 C 2 The wiring method should be in line with the local wiring standard 3 If the fuse is broken or power cable damaged it should be replaced by the qualified person If the fuse on PC board is broken please change it with the type of T3 15A 250V 4 After installation the power plug should be easily reached 5 The appliance is not intended for use by young children or infirm persons without supervision 6 Young children should be supervised to ensure that they don t play with the appliance 7 The wiring diagram is attached inside the machine 8 The appliance must be installed on strong enough supporter 2
