Note:

l The air conditioner must use special circuit (over 40A), and wiring by the qualified

electrician according to the wiring rules specified in national standard.

l The grounding wire and the neutral wire shall be strictly separated. Connect the neutral

wire with grounding wire is incorrect.

l The electric leakage breaker must be installed.

l All the electric wire must be copper wire. When wiring, there shall keep a proper distance

between the power line and communication wire to avoid twist together. Otherwise,

signal disturbance will occur, and the air conditioner can not operate normally.

l Power supply: 1PH, 220V~, 50Hz, the power supply connects from the outdoor side.

l The wiring method of power line is Y connection. If the power line is damaged, in order

to avoid risk of electric shock, it must be replaced by the manufacturer or its repair center

or other similar qualified person.

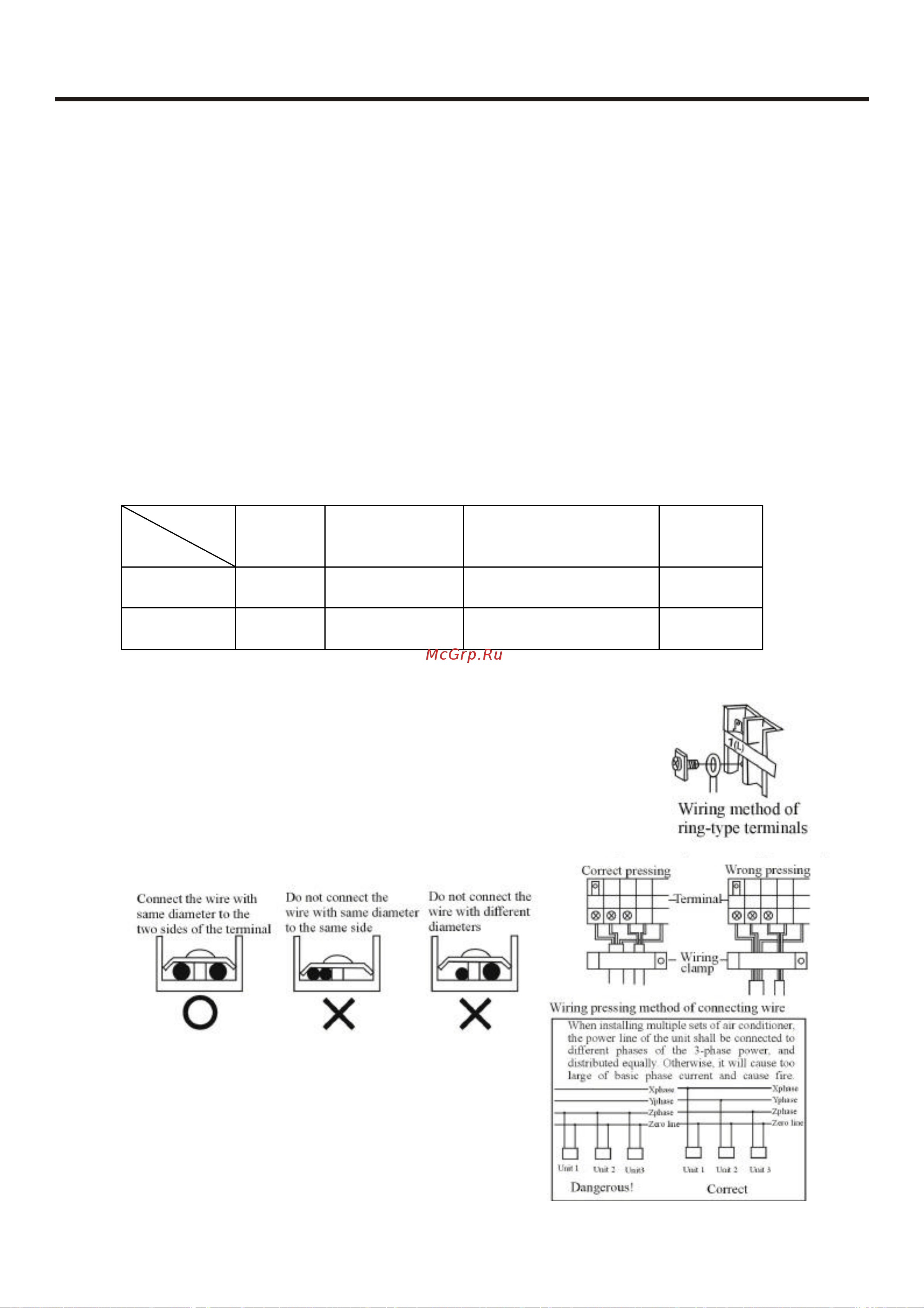

l Specification of wire and short circuit protector in site wiring:

Type

Contents

Power

line

Connection

wire

Connection signal wire Short

circuit

protector

Specificatio

YZW YZW YZW ----

Parameter 3 x

6mm2

3 x

(1~1.25mm2)

2 x (0.75~1.25mm2) 40A

8.12 Electric wiring

Note: The signal wire using shielded wire is recommended.
