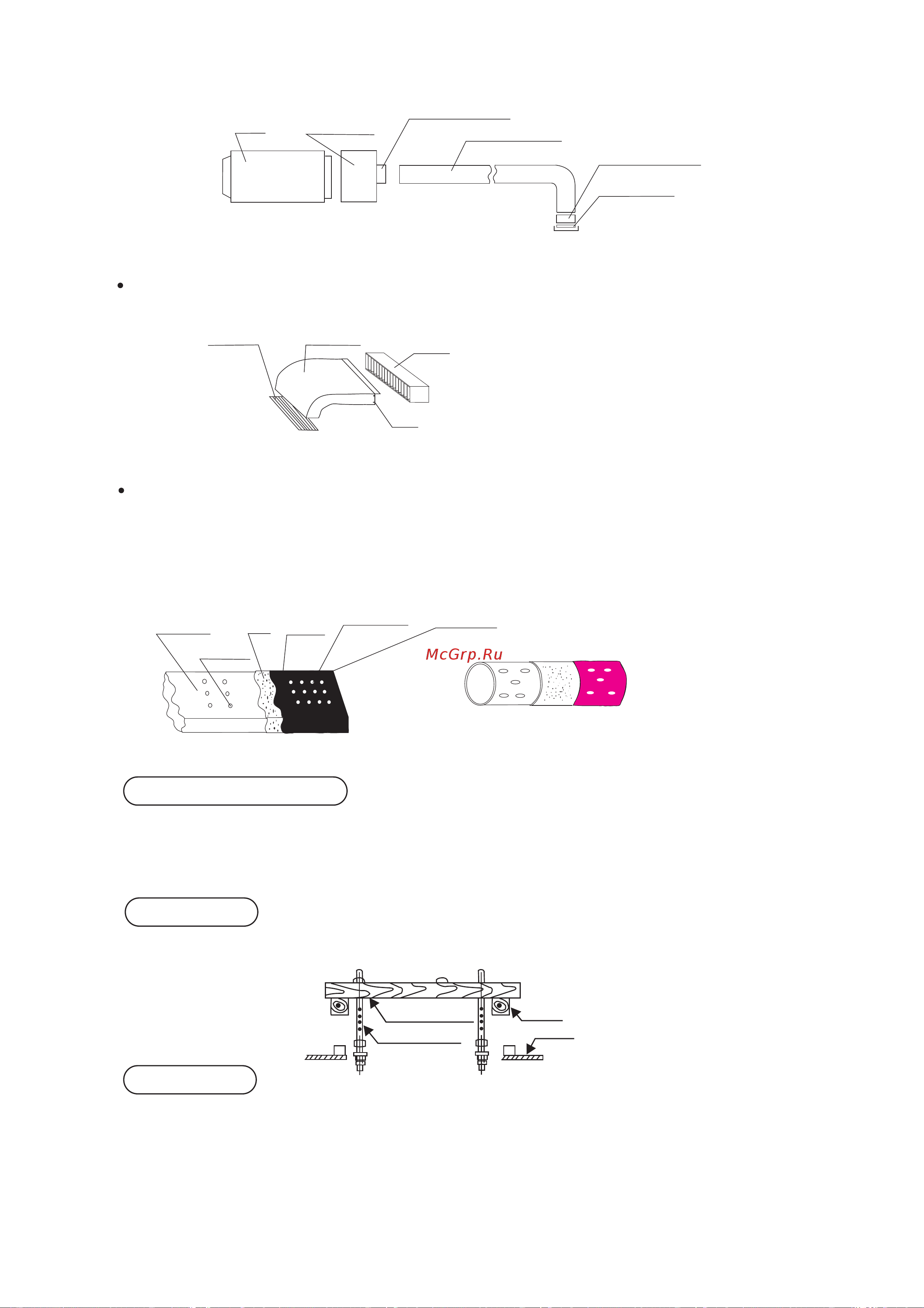

![Haier AB142FCBHA [117/174] Installation for air return duct use rivets to connect the air return duct to the air return inlet of the indoor unit the other end connects to the air return shutter as shown in fig](/img/pdf.png)
Haier AB142FCBHA [117/174] Installation for air return duct use rivets to connect the air return duct to the air return inlet of the indoor unit the other end connects to the air return shutter as shown in fig
![Haier AS062FMAHA [117/174] Installation for air return duct use rivets to connect the air return duct to the air return inlet of the indoor unit the other end connects to the air return shutter as shown in fig](/views2/1821666/page117/bg75.png)
Indoor unit
flexible joint
or static pressure box
transitive air duct
circular air duct
joint of air diffuser
air diffuser
Fig1: Duct connected
indoor unit
air return
shutter
rivet
air return
duct
galvanized
board
glue nail
insulating
fabric
tinfoil
adhesive tape
glue nail cover
2. Installation for air return duct
Use rivets to connect the air return duct to the air return inlet of the indoor unit. The
other end connects to the air return shutter. as shown in Fig.2.
Fig2: Duct return connected
3. Air duct insulation
Insulation layer is needed for air supply and return duct. First, paste a glue nail to the
air duct, and then attach the insulation cotton that has a tinfoil layer and use the glue
nail cover to fix. Finally, seal the air duct interface with tinfoil adhesive tape closely.
as shown in Fig3.
Installing the suspension screw:
Use M8 or M10 suspension screws (4, prepared in the field) (when the suspension screw
height exceeds 0.9 m, M10 size is the only choice). These screws shall be installed as
follows with space adapting to air conditioner overall dimensions according to the original
building structures.
Wooden structure
A square wood shall be supported by the beams and then set the suspension screws.
Square wood
Suspension
screw
Beam
New concrete slab
To set with embedded parts, foundation bolts etc.
