4
4. Confirm the setting
12:00
12:00
AM
12:00
12:00
Operating instructions

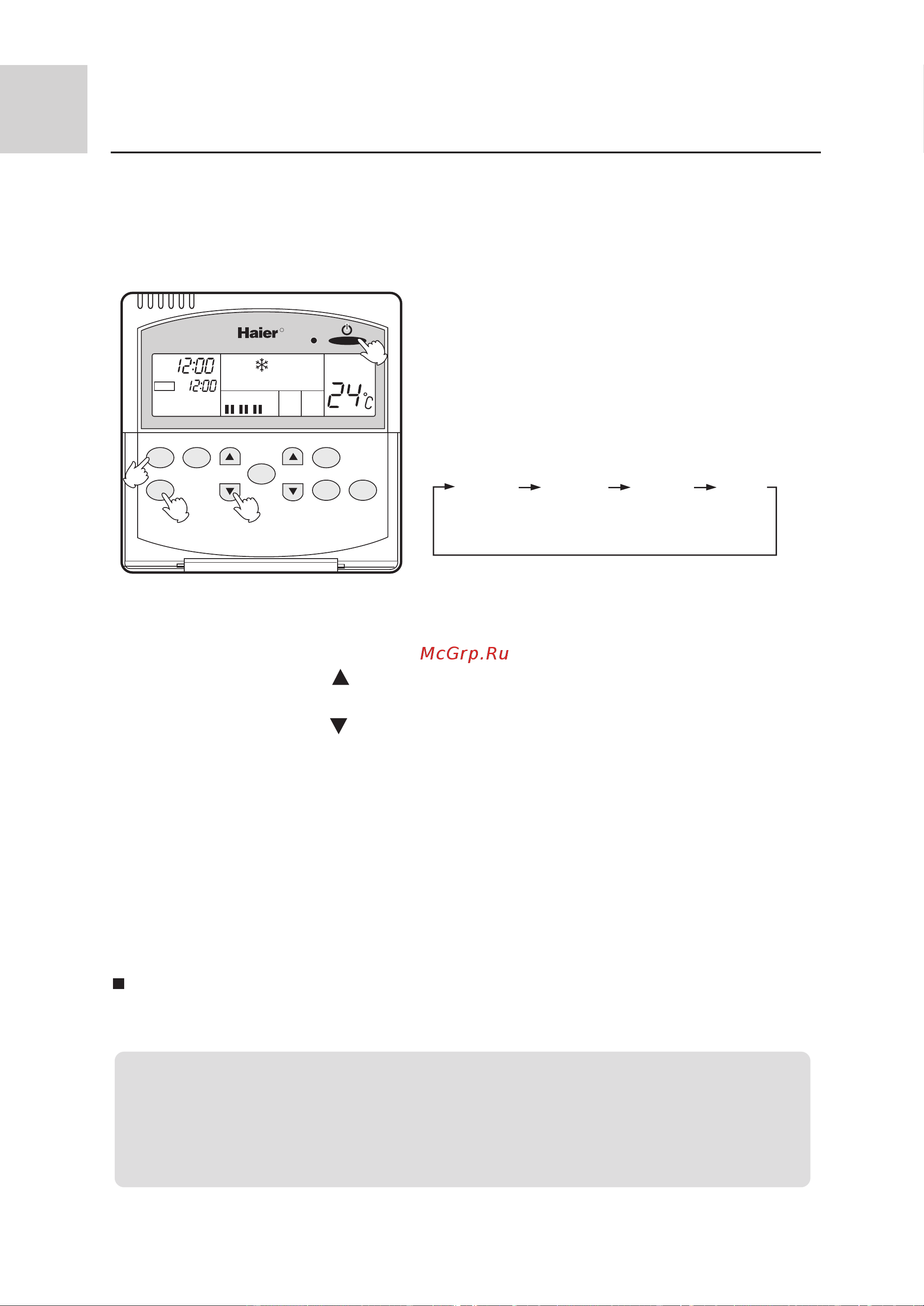

TIMER ON/OFF function
Please adjust the clock before using timer function.
You may set the air conditioner automatically turn on or turn
off when you wake in the early morning, come off work or
after you fall asleep.
R
1
4
2
3
1. Set the operation mode after the unit is turned on.
The operation indicator on the remote controller turns on,
and the LCD screen displays the operation mode.
2. Setting the timer mode
Press the "TIMER" key to change timer mode. Each
pressing will change the timer mode indication as follows:
TIMER ON TIMER OFF TIMER ON BLANK
TIMER OFF
PM
TIMER ON TIMER OFF TIMER ON-OFF
PM
AM
Determine a timer mode according to your need subse-
quently (TIMER ON or TIMER OFF).
The display of TIMER "ON" or TIMER "OFF" now
flashes.
3. Set time
Press " TIMER SETTING " step keys.
Every time pressing the " " key will increment the time setting by 10 min, while kept
pressing will increase quickly.
Every time pressing the ì " key will decrement the time setting by 10 min, while kept
pressing will decrease quickly.
The LCD on the remote controller displays the time setting, which could be freely adjusted
within 24 hours.
After completion of time adjustment, press the "SET" key to confirm the time.
TIMER "ON" or TIMER "OFF" doesnt flash now.
The time display is: Unit starts or stops at x hour x min. (TIMER ON or TIMER OFF).
Cancel TIMER mode
Just press "TIMER" key several times until TIMER mode indication disappears.
Hints:
Time should be setting again after a power failure.
The remote controller possesses memory function, when use TIMER mode next time, just
press the "SET" key after mode selecting if time setting is the same as previous one.
AM
AM
TIMER ON
LOW MIN HIGH
AUTO
ROOM TEMP
TIMER
SET
CLOCK
TIME
SLEEP
TEMP
SWING
FAN
SPEED
MODE
10
