Heating operation indication
For adjusting the clock and
time for timer operation.
Note: This model of air conditioner doesnt provide the air sending direction adjustment function and thus
the "LOU" key is disengaged while the automatic air direction indication may be displayed.
This remote controller hasn't electric-aided heating indication as well as anion generation function
and indication.

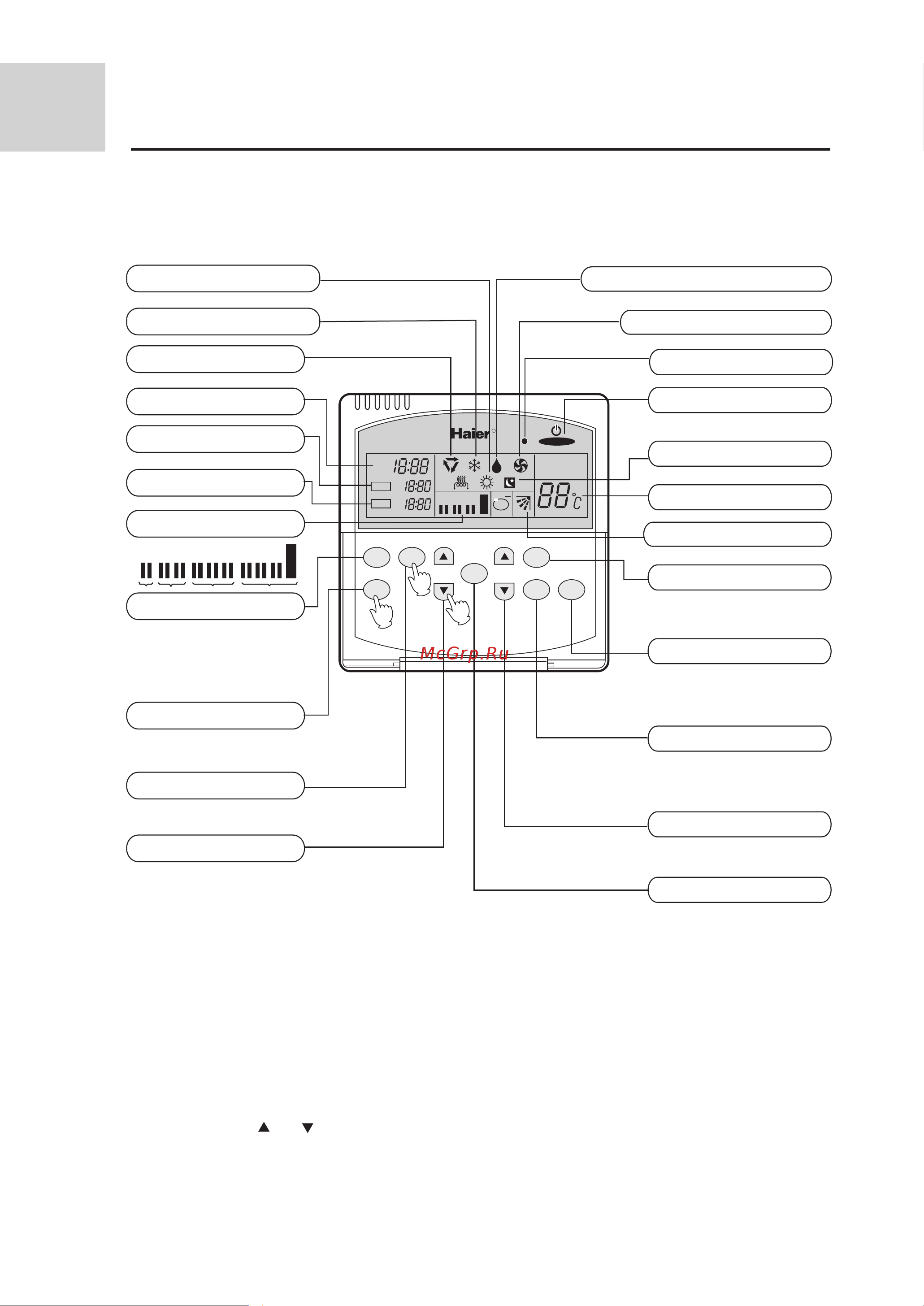

Part description
Remote controller
AM
PM
ion
R
Cooling operation indication
Dehumidifying operation indication
Fan only operation indication
Operation indicator
Sleep status indication
Temperature display
Automatic louver indication
1
2
LOU key
FAN SPEED key
TEMP step key
Used to select fan speed:
LOW, MID, HI, AUTO.
Used to turn on /off the machine.
Used to select operation mode:
AUTO, COOL, DRY, HEAT, FAN.
For setting a desired temper-
ature value.
Power ON/OFF key
CLOCK key
TIMER key
SET key
HOUR step key
SLEEP key
For checking the clock time.
For selecting timer mode:
TIMER ON
TIMER OFF
TIMER ON/OFF
For setting the clock and time
for timer operation.
For setting the sleep status.
3
Automatic operation
Clock display
TIMER ON display
TIMER OFF display
Fan speed display
MODE key
Used to select an automatic
or fixed air supplying direction.
When unit is started for the first time, clock should be adjusted as follows:
1. Press "CLOCK" key, "AM" or "PM" flashes at the clock display area.
2. Press the HOUR " "or " " key to set correct time. Each press will increase or decrease the time by 1 min.
If the key is kept depressed, time will change quickly.
3. After time setting is confirmed, press "SET" key, "AM" or "PM" stop flashing, while clock starts working.
Clock Set
L L M L M H L M H
AUTO
AM
PM
AM
PM
TIMER ON
TIMER OFF
LOW MIN HIGH
AUTO
ROOM TEMP
SET TEMP
TIMER
SET
CLOCK
TIME
SLEEP
TEMP
SWING
FAN
SPEED
MODE
4
