Installation Procedures

30 cm

or more

60 cm

or more

40 cm or more

30 cm

or more

60 cm

or more

2. OUTDOOR UNIT

(1) If possible, do not install the unit where it will be

exposed to direct sunlight.(If necessary, install a

blind that does not interfere with the air flow.)

(2) Install the outdoor unit in a place where it will be

free from being dirty or getting wet by rain as much

as possible.

(3) Install the unit where connection to the indoor unit

is easy.

(4) During heating operation, drain water flows from the

outdoor unit. Therefore, install the outdoor unit in a

place where the drain water flow will not be obstructed.

(Reverse cycle model only)

(5) Do not place animals and plants in the path of the

warm air.

(6) Take the weight of the air conditioner into account

and select a place where noise and vibration are small.

(7) Select a place where the warm air and noise from

the air conditioner do not disturb neighbors.

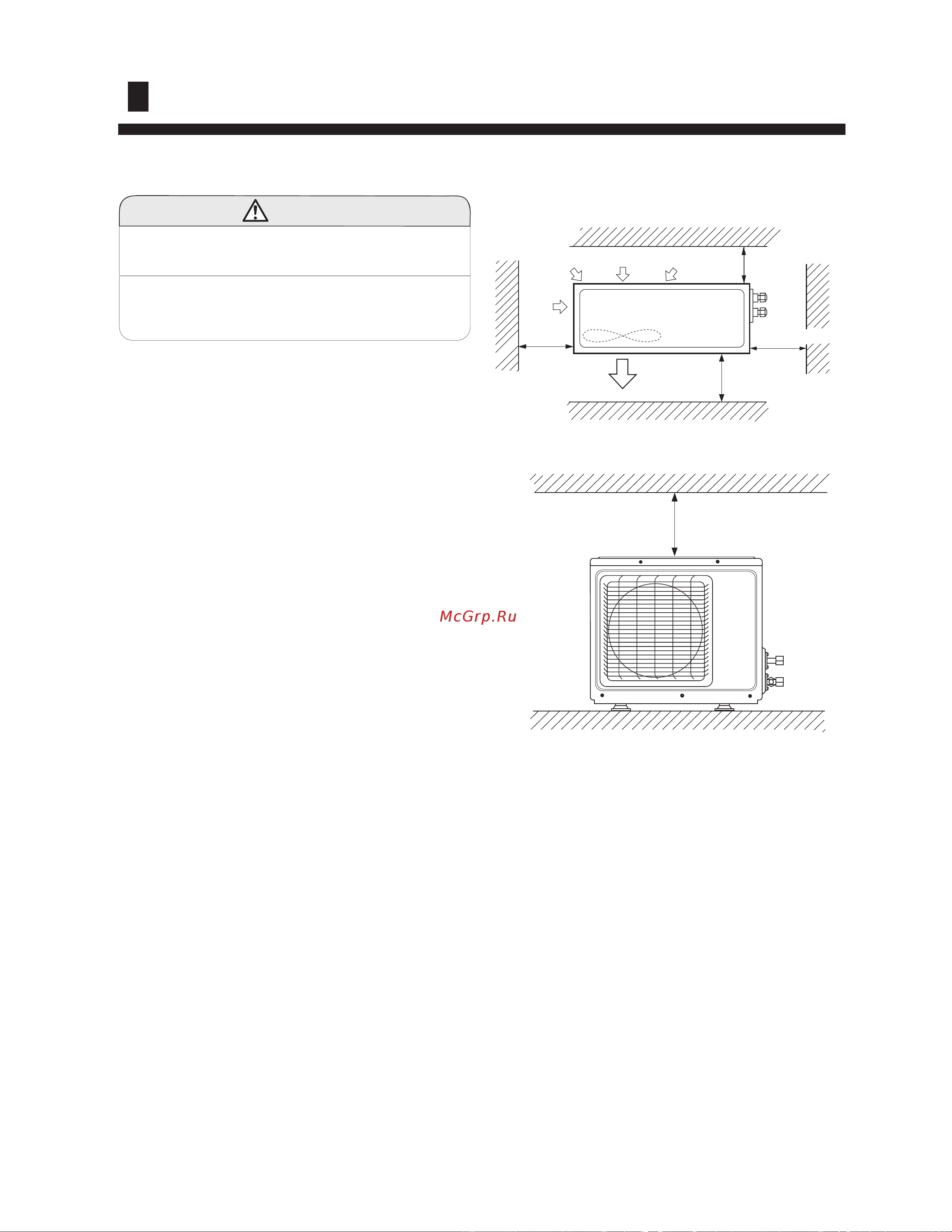

(8) Provide the space shown in Fig.B so that the air flow

is not blocked. Also for efficient operation, leave open

three of the four directions front, rear, and both sides.

(1) Install the unit where it will not be tilted by more

than 5 .

(2) When installing the outdoor unit where it

may be exposed to the strong wind, fasten

it securely.

WARNING

Fig.B
