Haier AU182AFBJA [17/25] Installation procedures

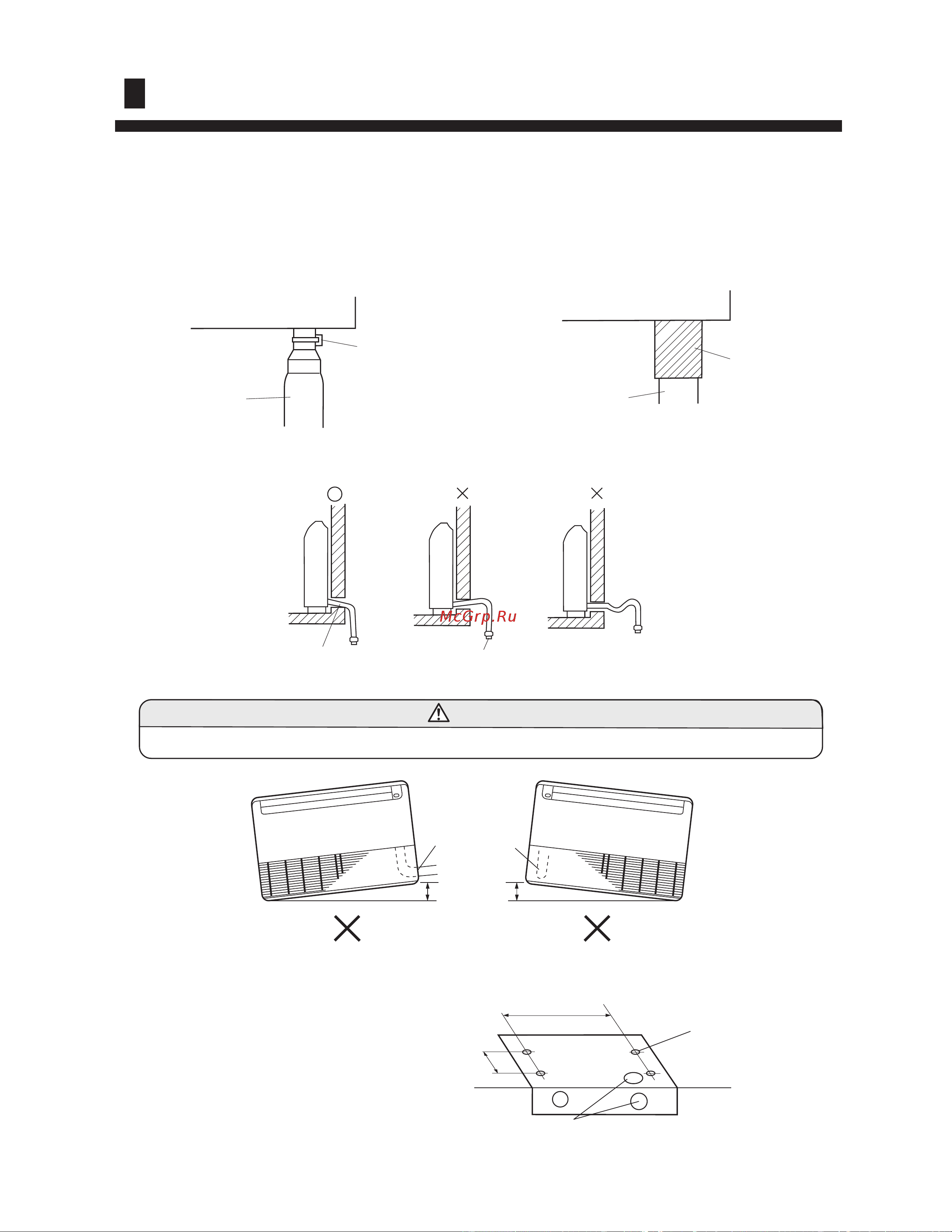

Installation Procedures

Select whether the drain hose will be connected

to the left or right side.(Fig.3) Insert the drain

hose into the drain pan, then secure the drain

hose with a nylon fastener. (Fig.6)

2. INSTALLING DRAIN HOSE

(Fig. 6)

Wrap the insulation (drain hose) around the drain

hose connection. (Fig.7)

(Fig. 7)

CAUTION

Do not install the unit drain hose side is too high. Height A should be less than 5 mm.(Fig.9)

Fig. 8

Be sure to arrange the drain hose correctly so that it is leveled lower than the drain hose connecting port

of the indoor unit.

Drain pan

Drain hose

Nylon fastener

Drain pan

Drain hose

Insulation

(Drain hose)

OK NO NO

Arrange the drain hose

lower than this portion.

Drain hose

Fig. 9

A A

Drain hose

B. UNDER CEILING TYPE

Using the installation template, drill holes for

piping and anchor bolts(for holes).(Fig.10)

Installation

template

Wall

Ceilling

Drilling position

for piping

Drilling position

for anchor bolt

200mm

900mm

Fig. 10
