Haier AC122FEAHA [11/12] Settings of heating temperature compensation usage of switch sw03

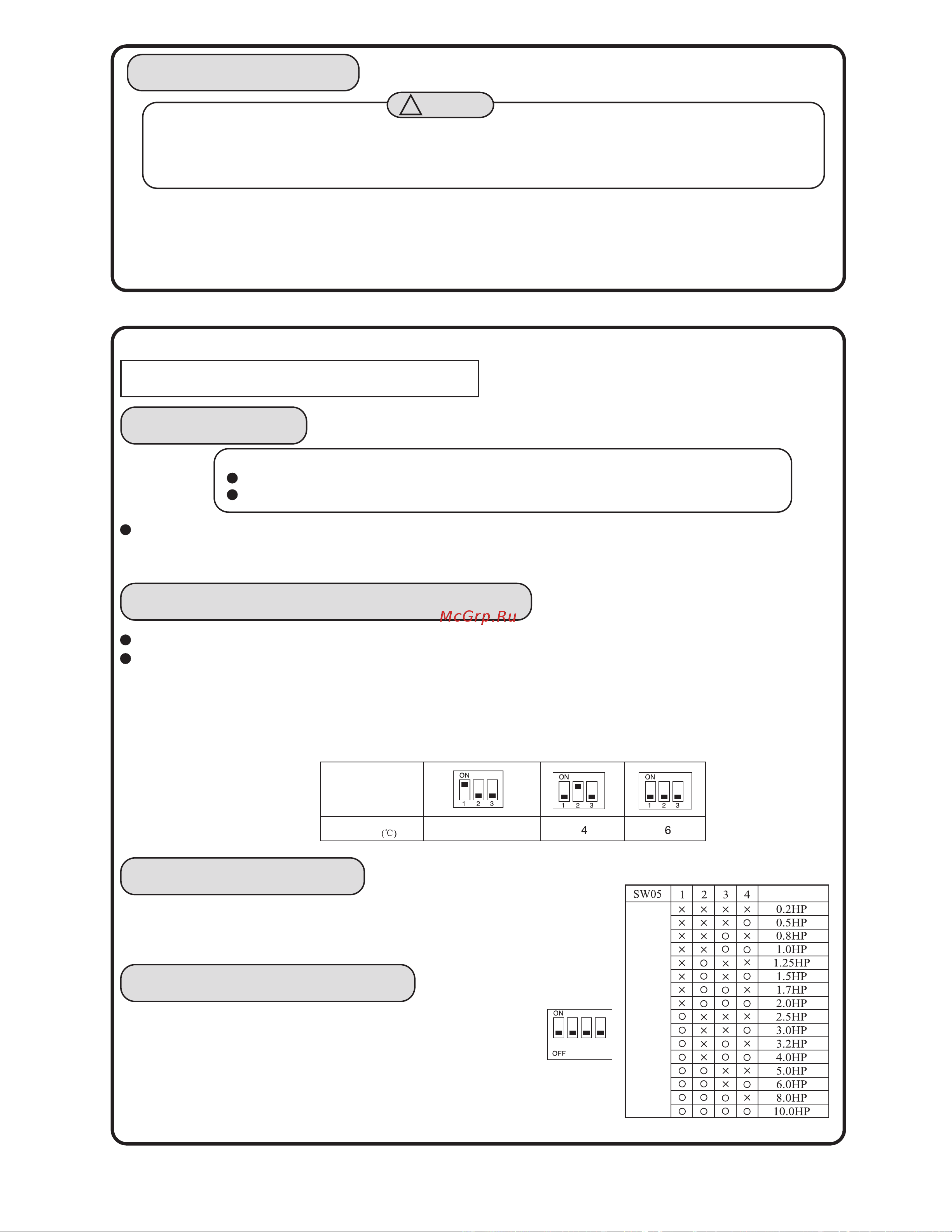

![Haier AC322FEAHA [11/12] Settings of heating temperature compensation usage of switch sw03](/views2/1822091/page11/bgb.png)
10
Finishing and amendment
Wires (cables between power supply and air conditioner) MUST keep clear of valves in gas
side of distribution tube and distribution tubewithout heatproof materials.
Melting of wire skin can cause electric shock, leakage and fire hazard.
1.Wrap tapes on distribution tube of refrigerant, wires in air conditioner room and drainage pipe
after finishing these engineering.
2.Fix them on the wall with supporting frame after wrapping tapes.
3.Control wire should be fixed on distribution tube which is wrapped by heatproof materials.
Improve efficiency of cooling and heating
Adjust wind direction
Requirement
Donít handle horizontal swing leaves manually to prevent defect ouccring.
Refer to ìoperation manualî to know how to operate.
To upward or downward directions, adjust swing leaves of horizontal orientation. To prevent
short cut of air flow, horizontal leaves can only swing within a certain range.
Settings of heating temperature compensation (usage of switch SW03)
Enhance air circulation with other equipment and make hot air near the ceiling blow downward.
Poor heating effect due to reasons such as installation position of indoor subassembly and room
structure can be changed in the following way to amend heating temperature.
<How to adjust>
There is code switch SW03 on PC board of indoor assembly. Adjust TA (temperature amendment)
as the following table.
Usage of emergency switch (usage of switch SW04)
(SW03)
Position of code swith
(restricted to position
1and 2 only)
Setting before
leaving factory
Increased value of
temperature
For trial run of indoor blower fan after finishing installation,
dial code of emergency switch (SW04) to ìONî side.
Ability setting of indoor subassembly (Usage of switch SW05)
Default ability of indoor subassembly has been set well
before leaving factory. It can be set according to ability
of indoor subassembly after changing circuit board.
Relation between ability setting and combination of
ON/OFF switches is as following table:
Ability setting SW05.
1 2 3 4
Note: O:ON X:OFF
Power
setting
Set
power
!
Notice
