Haier AC122FEBHA [5/12] Installation of attached hexagon bolt

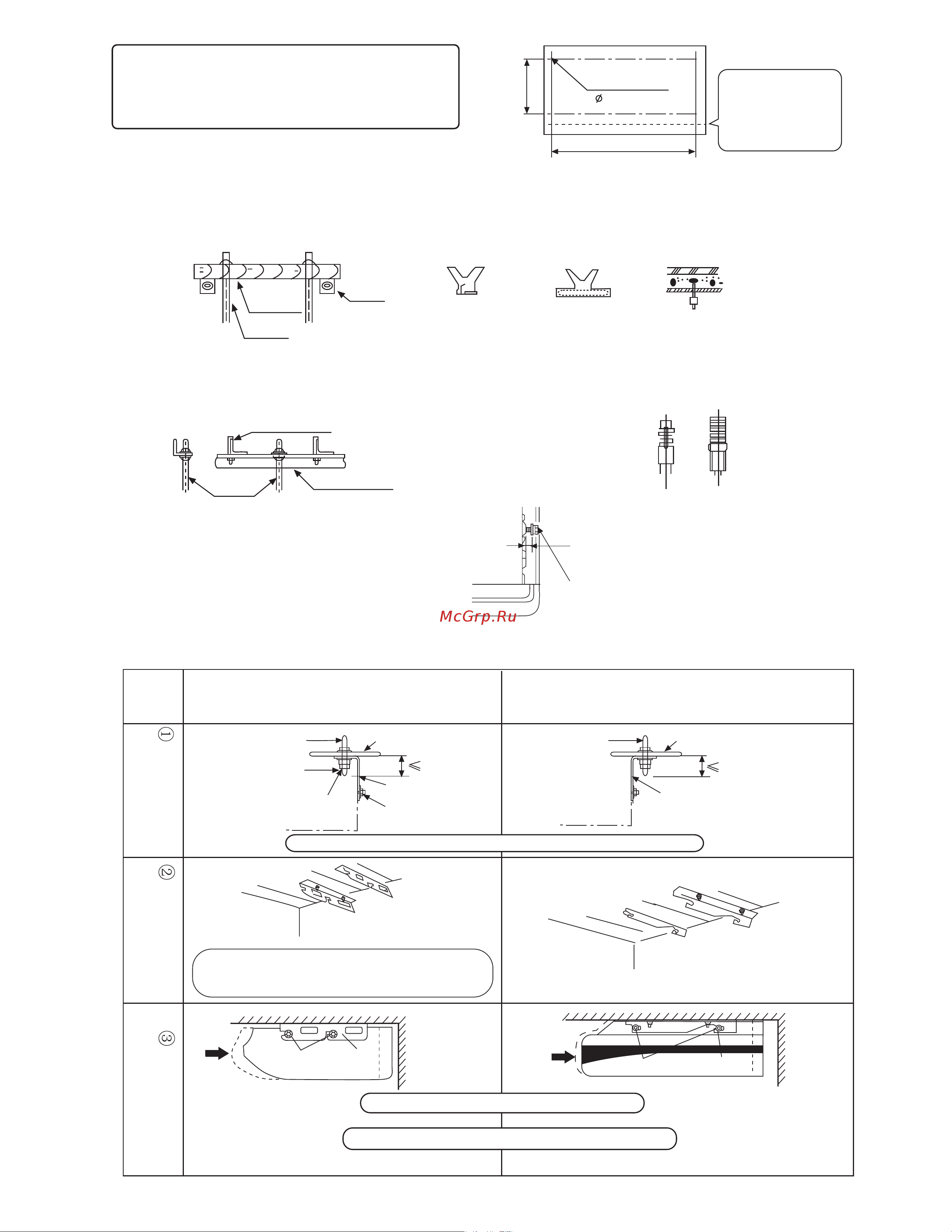

![Haier AC242FEAHA [5/12] Installation of attached hexagon bolt](/views2/1822091/page5/bg5.png)
Please refer to positions of suspending bolts
printed on installation paste board of AC092,
122,142,162FEAHA,AC092,122,142,
162FEBHA type.
Installation position of suspending bolts
Wood building
New concrete building
Install beam wood on the girder and set suspending bolts.
Position of
suspending bolt
B(mm) Internal suspension
( 10)
E
The dotted indicates
position on the back
of the unit. Cut it
off to use.
Steel structure
Old concrete building
Directly use angle iron to set supporting angle iron
Use inlet hinge joint, inlet plug or inlet bolt.
steel bar
foundation bolt
(hook bolt
with tubing)
lead-in
insert
cultellate
insert
Beam
wood
Suspending bolt
girder
4. Installation of air conditionert
4
Internal suspension (AC092,122,142,
162FEAHA,AC092,122,142,162FEBHA)
Internal suspension (AC182,242,282FEAHA,
AC182,242,282FEBHA,)
3. Installation of attached
hexagon bolt
Hook bolt
Suspending
bolt
supporting iron angle
3-18mm
indoor subassembly
bolt
Hooks and chains
for suspension
Suspending bolt
Bolt sleeve
M10 flat washer
with double nuts
Ceiling
Supporting fram
Hexagon bolt
40mm
Machine
Suspending bolt
Machine
Supporting frame
40mm
Ceiling
Space length between suspending bolt and ceiling should be less than 40 mm.
Installation status
of supporting frame
Installation of
air conditioner
(ceiling)
The air conditioner cannot be adjusted horizontally
after installation of internal suspension, therefore it
should be adjusted as status shown in the diagram)
(wall)
(ceiling)
(wall)
Bolt supporting
frame
supporting frame
Bolt
Insert hexagon bolt into carved fillet.
Fasten hexagon bolt and fix the air conditioner.
