Haier AC122FEBHA [6/12] Installation of floor console
![Haier AC242FEAHA [6/12] Installation of floor console](/views2/1822091/page6/bg6.png)
5
rear
right
down
supporting frame
Margin of the machine
6
.78
cm
99cm
50cm
24.5cm
6.5cm
12.5cm 10cm
8.8
cm
5
.5
3cm
4.
73
cm
3.5cm hole
water intake panel
line clip
drainage
pipe
backward
downward
Right drainage hole
heatproof
material
water intake panel
drainage pipe
left drain hose
Right Drain hose
2. Installation of AC182,242,262FEAHA,
AC182,242,262FEBHA
Drawing-off
direction of drainage pip
Note: drainage pipe should incline from
higher inside to lower outside end.
Note: drainage pipe should incline from
higher inside to lower outside end.
According to spot requirement, drainage pipe is provided by the user and connected firmly with drainage
pipe equipped on the machine (pay attention to the joint to prevent from water leakage). Indoor part of
drainage pipe should be made heatproof with heat insulation materials to prevent from condensation.

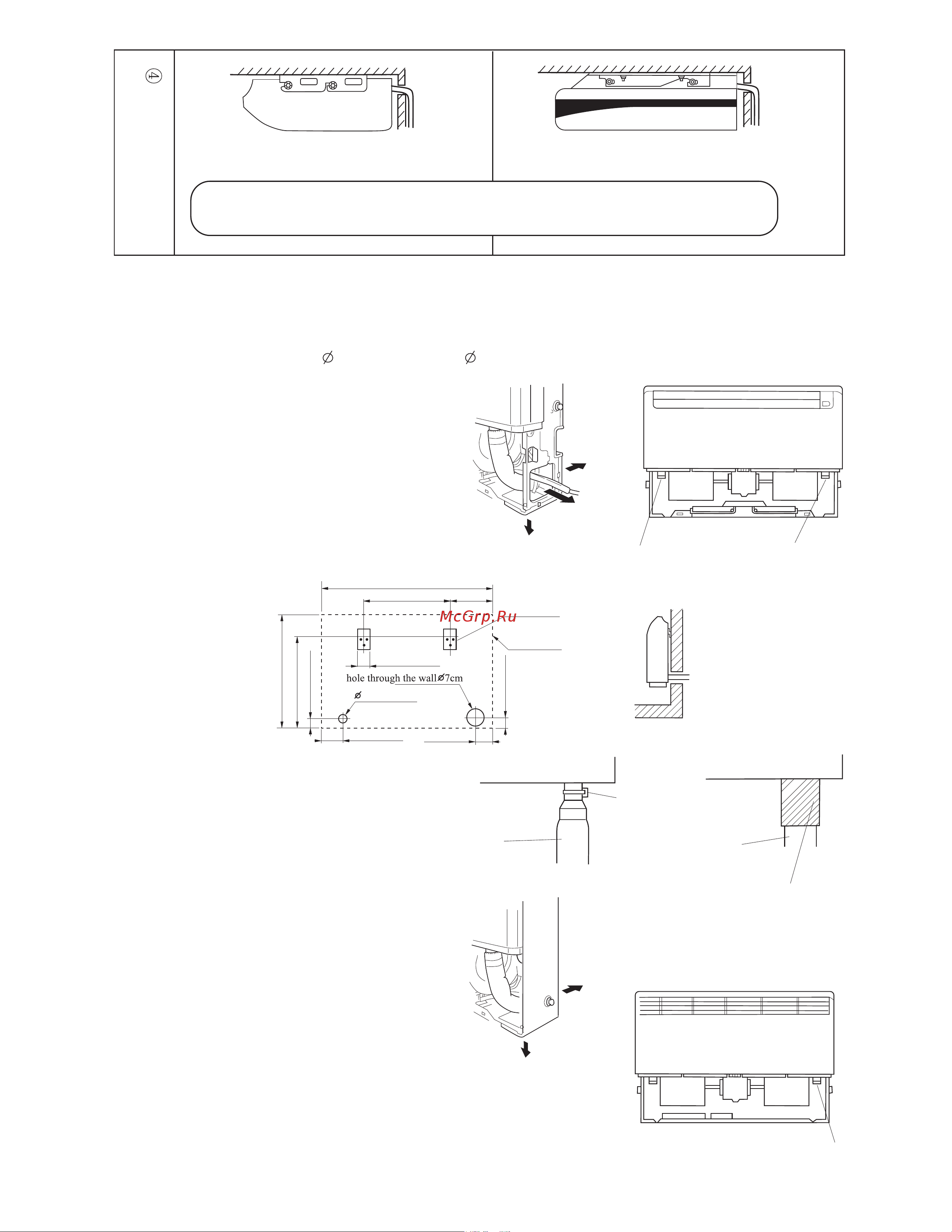

Installation of floor console
1. Installation of (AC092,122,142,162FEAHA,AC092,122,142,162FEBHA)
Fix four rubber footings, 4X16 screw snail, 12 washer on the bottom of the machine (only for
floor type).
(1)
(2)
As shown in the diagram on the right, select
an outlet direction for pipeline and wiring.
There are two drainage holes respectively on
the left and right, select one according to
practical conditions. After confirming outlet
direction of pipeline, wiring and drainage
pipe, drill a hole through the wall according
to method prescribed.
(3)
Install supporting frame as shown in the diagram below.
(4)
Install drainage pipe
Install drainage pipe at one of positions on
right or left for drainage holes (as diagram
above) as following:
Inset drainage pipe into water intake panel as
shown in diagram, fasten with line clip, then
bind up the joint with heatproof materials.
As shown in the diagram on the right, select
an outlet direction for pipeline and wiring.
There are two drainage holes respectively on
the left and right, select one according to
practical conditions. After confirming outlet
direction of pipeline, wiring and drainage
pipe, drill a hole through the wall according
to method prescribed.
(1)
