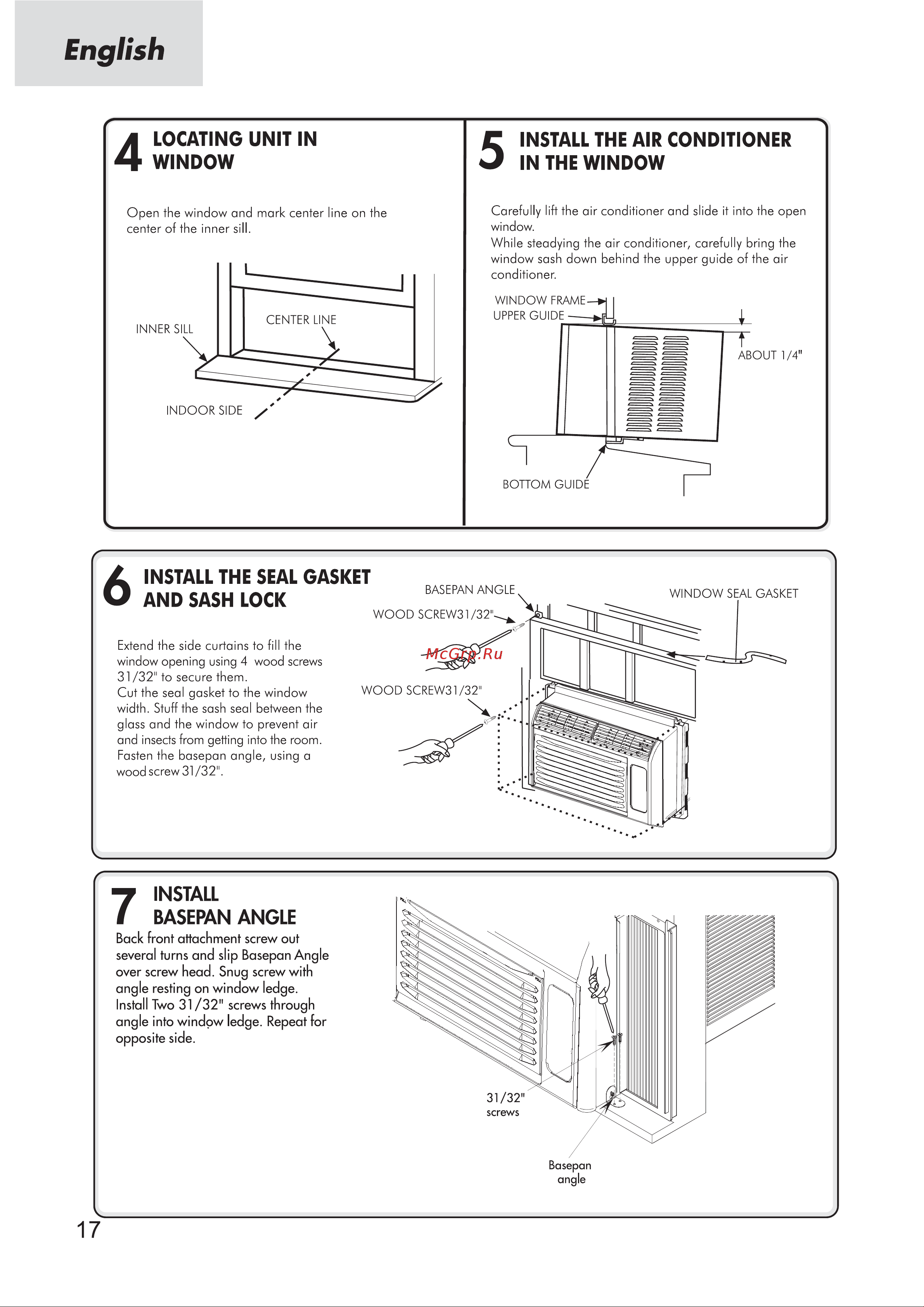

English 4 LOCATING UNIT IN WINDOW 5 Carefully lift the air conditioner and slide it into the open window While steadying the air conditioner carefully bring the window sash down behind the upper guide of the air conditioner Open the window and mark center line on the center of the inner sill 6 INSTALL THE SEAL GASKET AND SASH LOCK BASEPAN ANGLE WINDOW SEAL GASKET WOOD SCREW31 32 Extend the side curtains to fill the window opening using 4 wood screws 31 32 to secure them Cut the seal gasket to the window width Stuff the sash seal between the glass and the window to prevent air and insects from getting into the room Fasten the basepan angle using a wood screw 31 32 7 INSTALL THE AIR CONDITIONER IN THE WINDOW WOOD SCREW31 321 INSTALL BASEPAN ANGLE Back front attachment screw out several turns and slip Basepan Angle over screw head Snug screw with angle resting on window ledge Install Two 31 32 screws through angle into window ledge Repeat for opposite side 31 32 screws Basepan angle
