Haier HC24D1VAR [4/16] Of 3 ton
![Haier HC24D1VAR [4/16] Of 3 ton](/views2/1824540/page4/bg4.png)

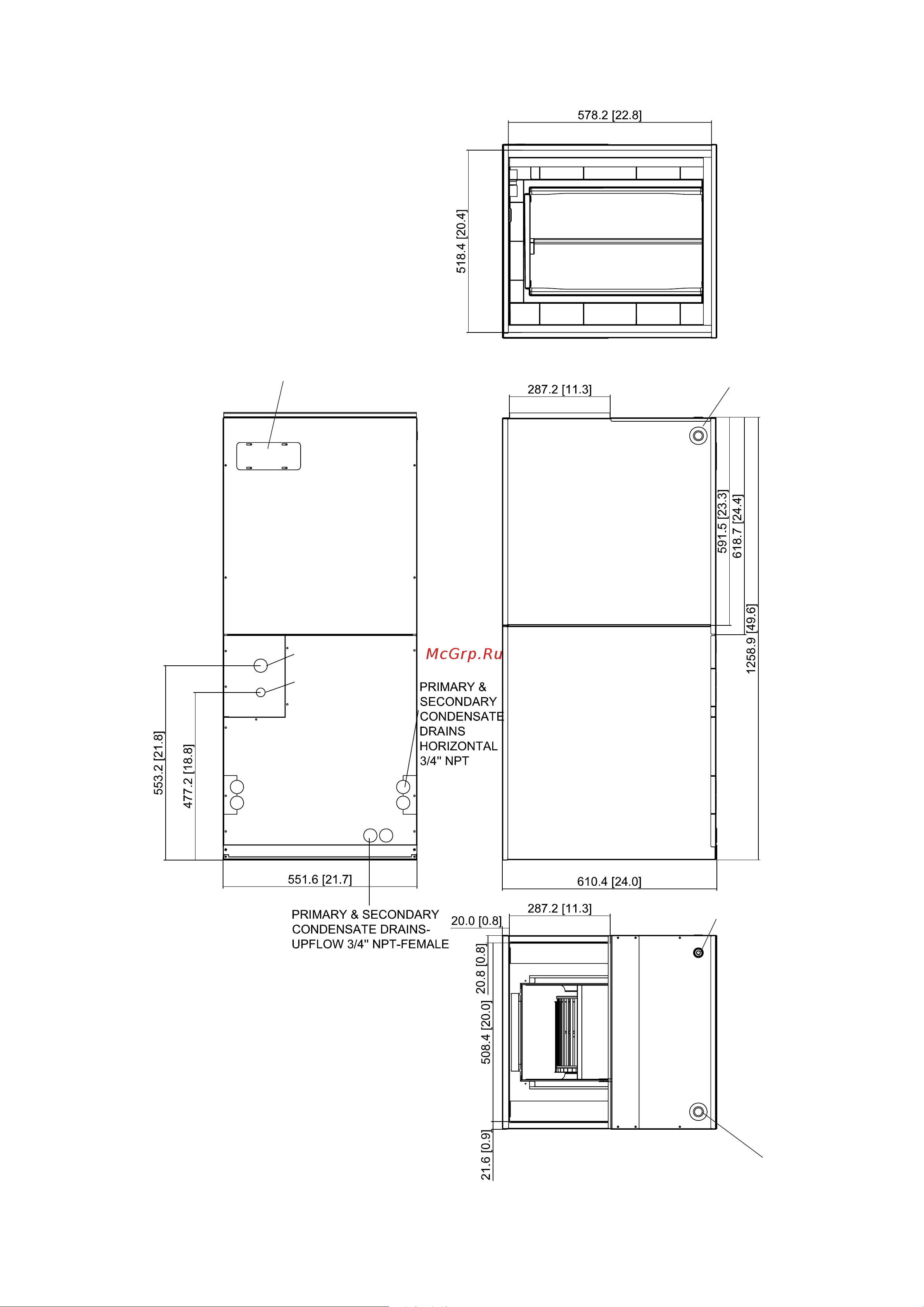

PHYSICAL DIMENSIONS
4
of 3 Ton
PLASTIC BREAKER COVER
ELECTRICAL POWER SUPPLY
LOW VOLT SUPPLY
ELECTRICAL POWER SUPPLY
INLET BOTTOM SIDE VIEW
SUCTION LINE
LIQUID LINE
