Haier HC24D1VAR [5/16] Of 4 5 ton
![Haier HB4800VD1V22 [5/16] Of 4 5 ton](/views2/1824540/page5/bg5.png)

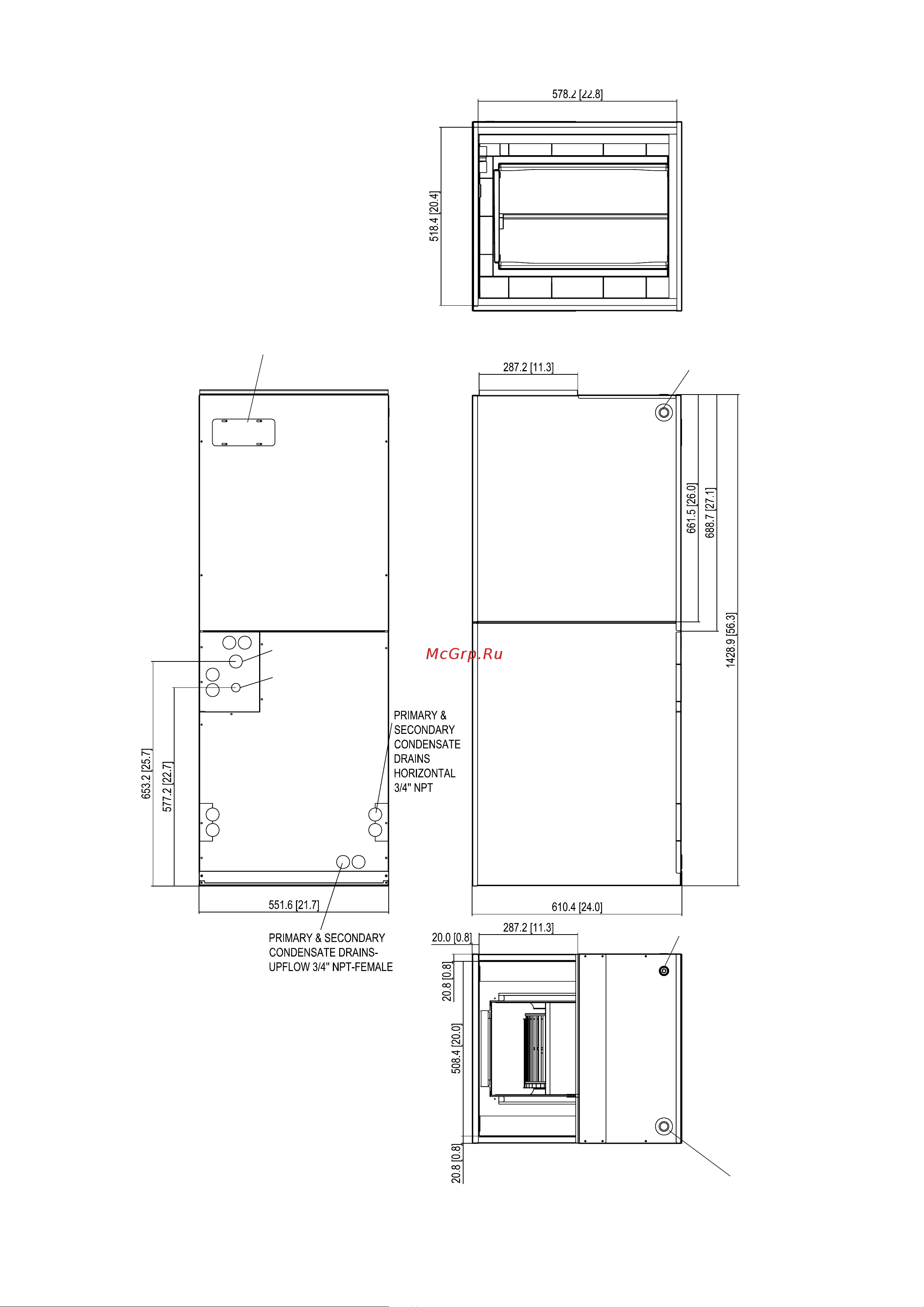

PHYSICAL DIMENSIONS
5
of 4,5 Ton
INLET BOTTOM SIDE VIEW
ELECTRICAL POWER SUPPLY
PLASTIC BREAKER COVER
LOW VOLT SUPPLY
ELECTRICAL POWER SUPPLY
SUCTION LINE
LIQUID LINE
