Installation Instructions

Selection of the installation position

1. Select position where the structure is firm.

2. Select position where the air inlet and outlet are not blocked by obstacles.

3. Select position where the cooled air can be blown to every corner of the room.

4. Select position where there's no direct sunlight. If sunlight cannot be avoided, some means of

sun shade is required.

5. Select position where the outdoor airflow will not bother neighbors.

6. Select position where condensation drainage is not impeded.

7. Select position where there's no dangerous gas or oil vapor nearby.

8. An extension cord is not recommended.

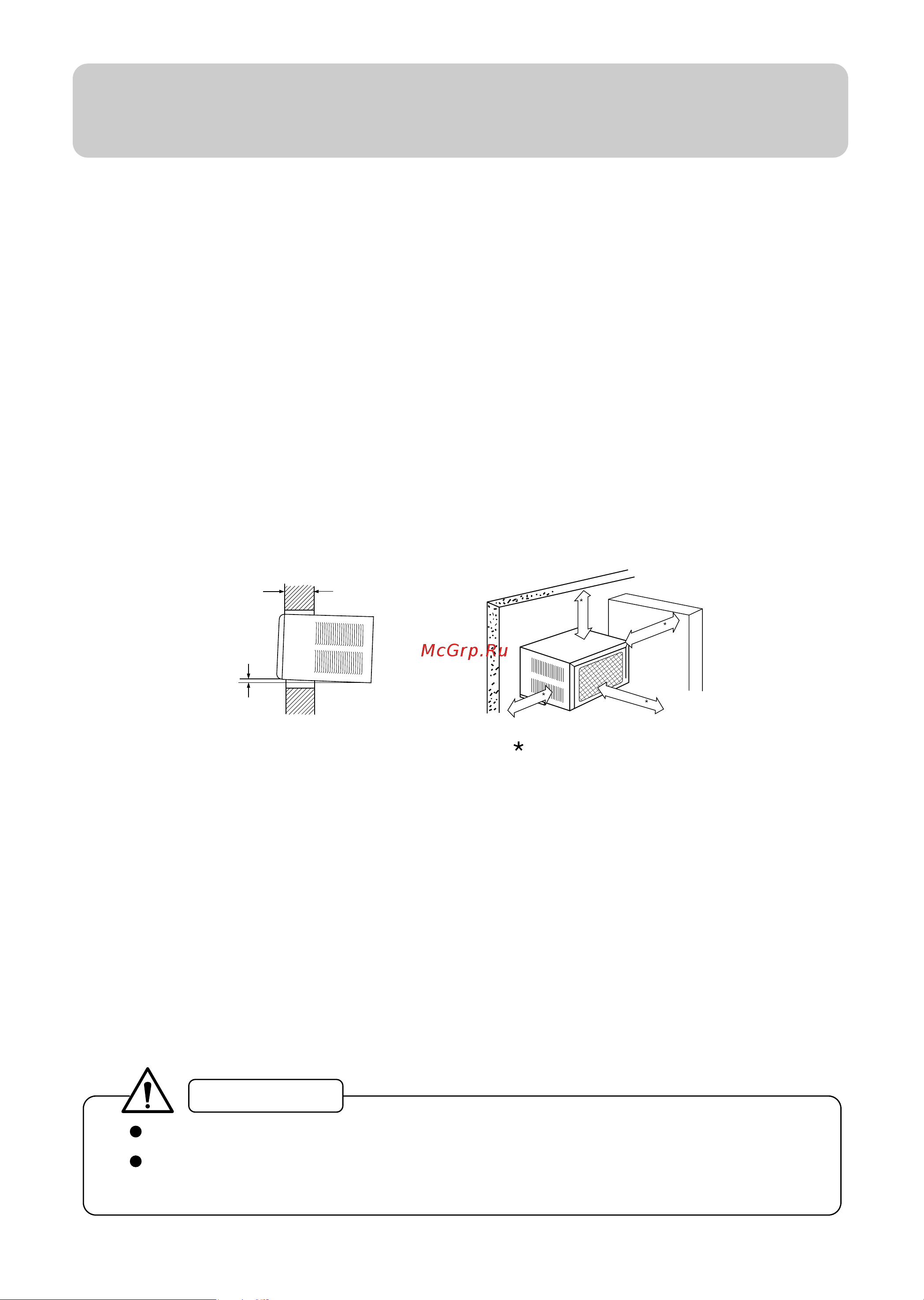

Installation diagram

The unit must be installed so that the back (outdoor side) is lower to allow drained water to flow

out smoothly.

Requirements for electricity:

Be sure to use the specified voltage (25A max).

1. Applicable ambient temperature range is 21

C~52

2. If the power supply cord is damaged, it must be replaced by the manufacturer, the service,

agent or a similar qualified supplier. An extension cord is not recommended.

3. The wiring method should comply with local wiring standards.

4. After installation, the power plug should be easy to access.

5. The breaker of the air conditioner should be an all-pole switch (25A) and the distance between its

two contacts should be no less than 3mm.

6. The appliance must be connected to a socket outlet with the appropriate rating.

7.The appliance is not intended for use by young children or infirm persons without supervision.

8.Young children should be supervised to ensure that they do not play with the appliance.

Width of wall should be

less than 295mm

5 ~ 10mm

400mm

700mm

Minimum distance

Power cord: Only to use an exclusive power cord.

Changing installation site: If the air conditioner needs to be changed to another

location, please contact the dealer that sold you the unit.

CAUTION
