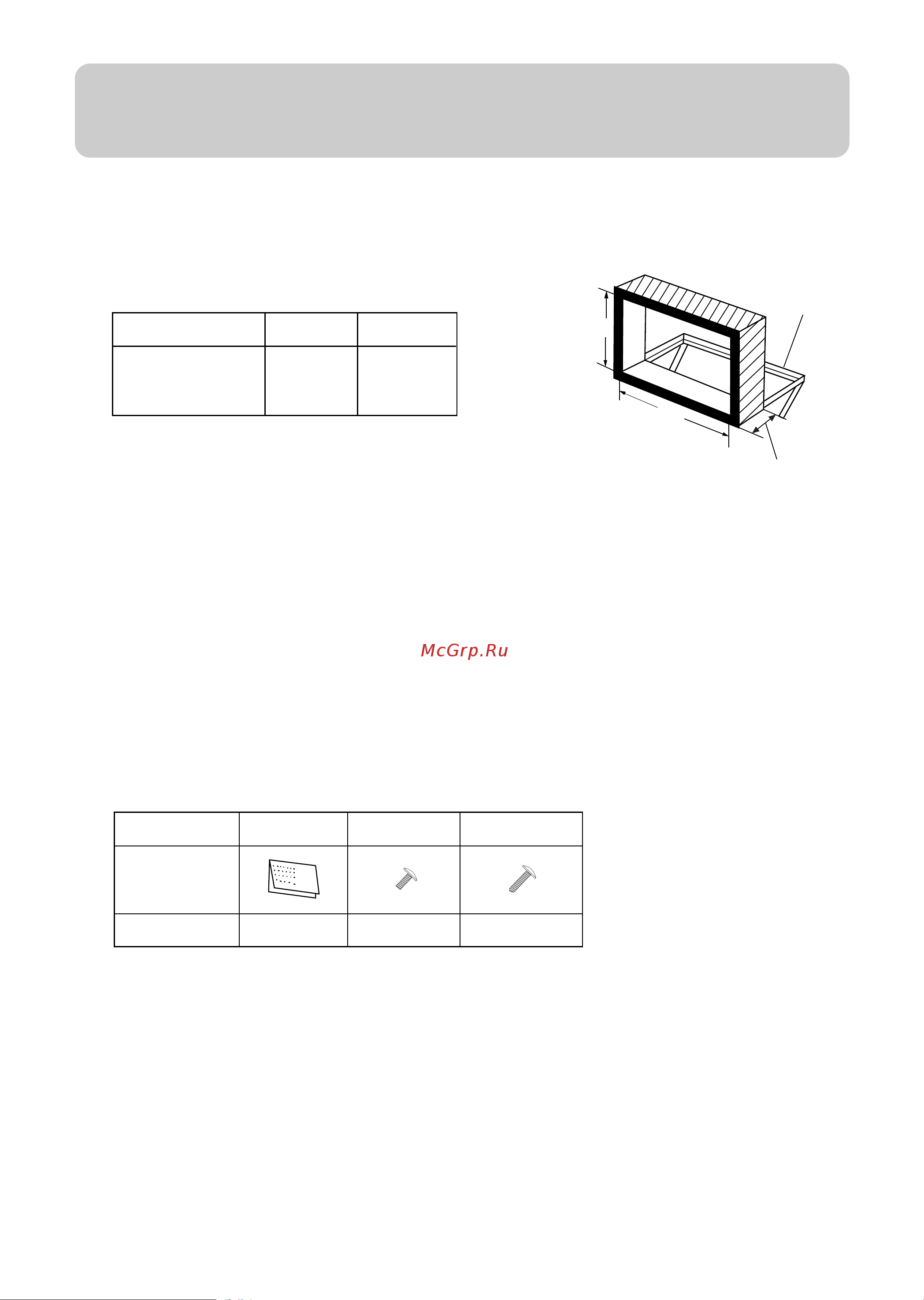

Installation Guide

Installation of air conditioner (only for reference)

1. Make a wooden frame. (Fig.1)

2. Attach a metal support (not provided by

manufacturer) in a firm location with expanding

screws or bolts.

Fig.1

Thickness of wall

Metal support

Supplied accessory parts.

3. Remove the air conditioner from its packing

carton.

4. Place the air conditioner on the metal support.

5. Stuff gaps in the wall or window with soft

sponge material or rubber gaskets to block

outside noise and keep cool air from escaping.

Note: After finishing the installation of the air conditioner,

fix the panel board onto the casing with two side

attachment screws. (For HW-24CI03, add one front

attachment screw)

Name

Appearance

Quantity

Manual

Side screw

Front screw

Model

670mm440mm

HW-24CE03

HW-24CI03
