3-Control panel
8
3.1 Dete
●
rgent drawer

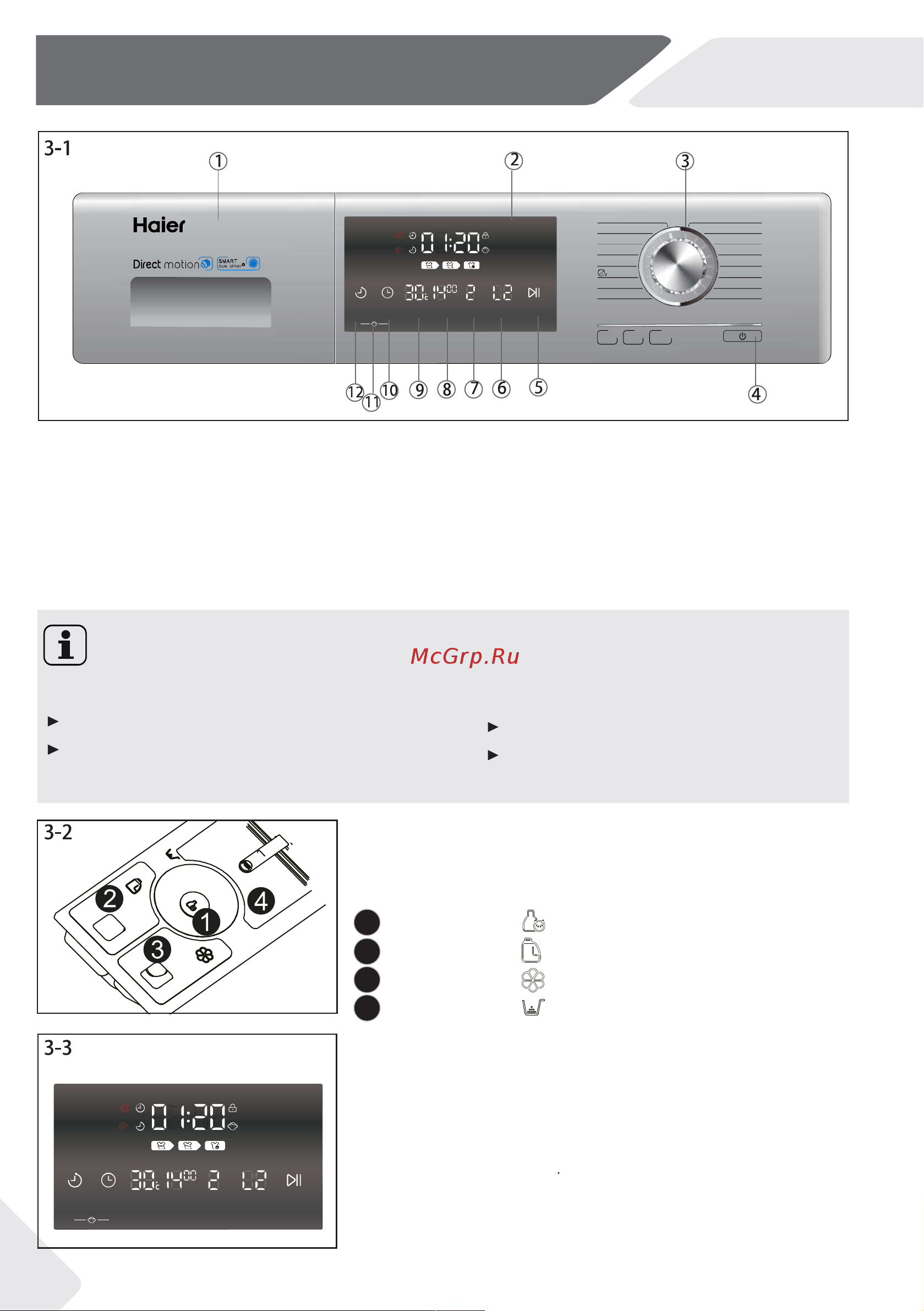

Open the drawer, three compartments can be seen
●
(Fig. 3-2).
1
Compartment : Disinfector for programme
2
Compartment : Liquid detergent for programme
3
Compartment : Softener, Conditioning agent etc.
4
●
Compartment : Powder detergent for programme
The recommendation on the type of detergents is
suitable for the various washing temperatures, please
refer to the manual of detergent.
Note : Acoustic signal
In following cases an acoustic signal sounds:
when pressing a button
when turning the programme selector
at the end of programme
in case of failures
The acoustic signal can be deselected if necessary; see DAILY USE.
1 Detergent / Softener drawer
2 Display
3 Programme selector
4
5
“Start/Pause” button
6
Water level
7
Rinse
8
Speed
9
Temp.
10
I-time
11
Child lock (Delay+I-time)
12
Delay
3.2 Displ
●
ay
If the appliance is on Display will light up the actual-
washing time, spin speed, temperature, etc will appear
(Fig. 3-3).
Function buttons:
“On/Off” button
status on different sections. The information including
Delay I-time Temp. Speed Rinse Water level Start/Pause
