Haier HW90-B14636 [25/100] Installation

10-Installation

10.1 Preparation

Take the appliance out of the packaging.

Remove all packaging material including polystyrene base, keep them out of childrens

reach. While opening the package, water drops may be seen on plastic bag and port-

hole. This normal phenomenon results from water tests in the factory.

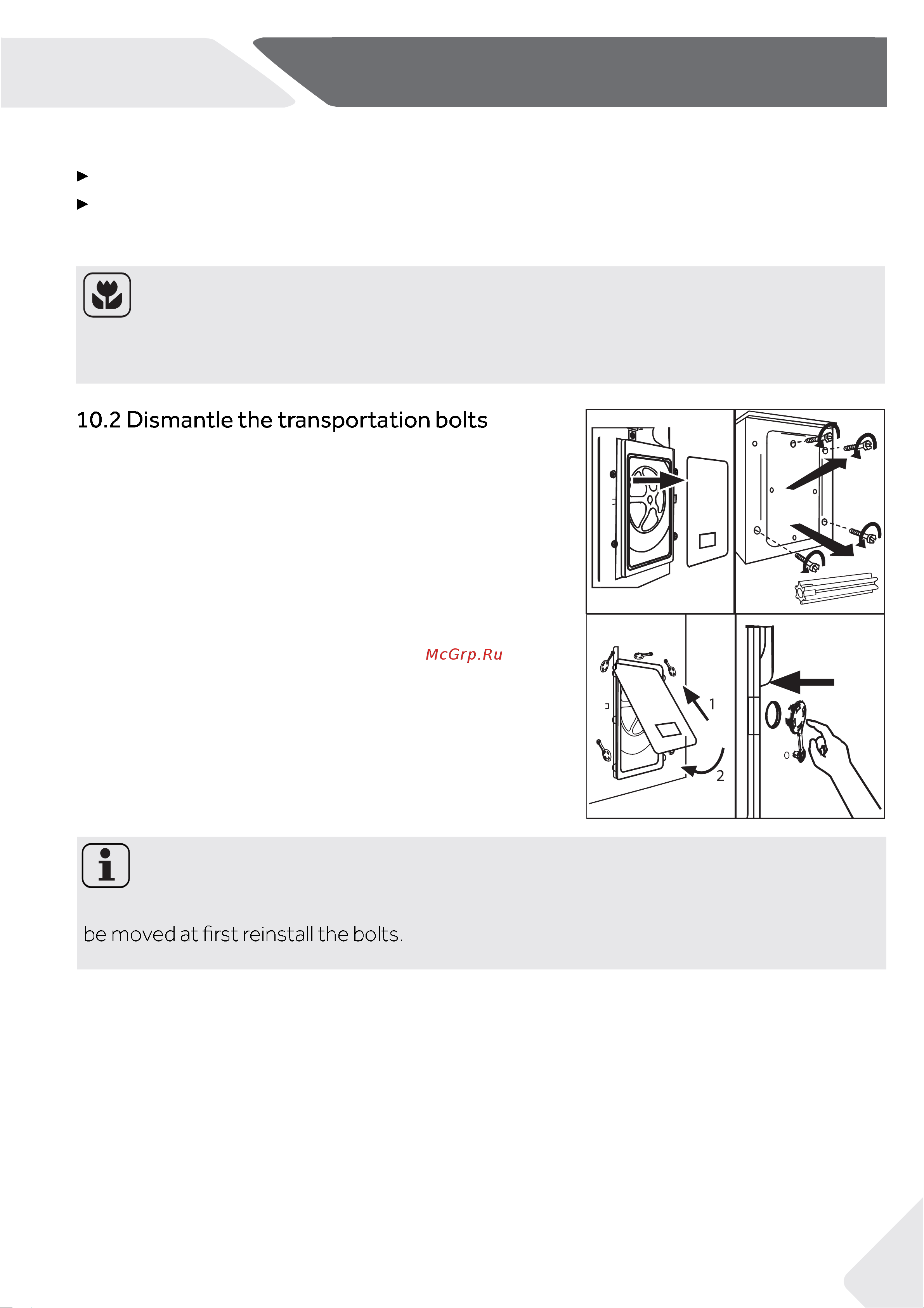

The transportation bolts are designed for clamping

anti-vibration components inside the appliance during

transportation to prevent inner damage.

1. Remove the back cover (Fig. 10-1).

2. Remove all 4 bolts on the rear side and take out

plastic spacers (A) from inner side of the machine

(Fig. 10-2).

3. Replace back cover by inserting it in the two gaps

●

its convexity is facing out (Fig. 10-3).

●

4. Fill left holes with blanking plugs

●

(Fig. 10-4).

10-2

10-1

10-3 10-4

Note: Packaging disposal

Keep all packaging materials out of children´s reach and dispose them in an environmen-

tally friendly manner.

Note: Keep in safe place

●

Keep the transportation bolts in a safe place for later use. Whenever the appliance is to

10.3 Moving the appliance

If the machine is to be moved to a distant location, replace the transportation bolts re-

moved before installation to prevent damage:

1. Remove the blanking plugs.

2. Remove the back cover

●

3. Insert the plastic spacers and the transportation bolts.

4. Tighten the bolts with a spanner.

5. Replace the back cover.
