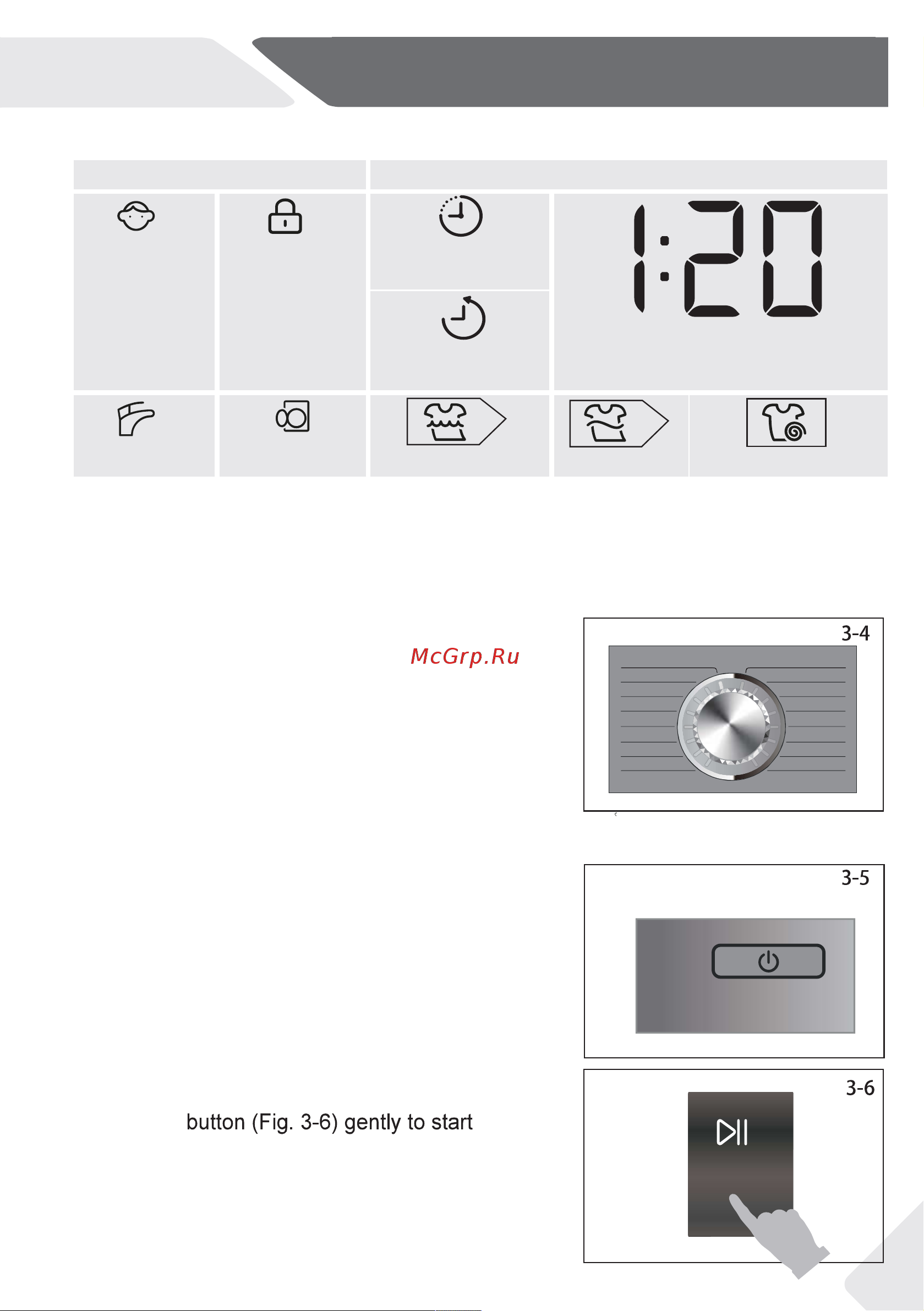

![Haier HW80-DM14876TNZP [9/36] Control panel](/views2/1827892/page9/bg9.png)
3-Control panel
9
Display symbols:
Programme status indication Programme cycle indication
Control panel
is locked
Door is locked
(in ope
●
ration)
Display for washing time, end time
delay as well as error codes and
service information.
Remaining opera
tion time
Remaining delay
time
Rinse cycle
No water supply Door is open Wash cycle Spin/drainage cycle
3.5 “Start/Pause” but
●
ton
Press this
or interrupt the currently displayed programme.
During programme run the colon in the displayed
washing time is blinking. During a pause also the
time display is blinking.
3.3 Programme selector
By turning the knob (Fig. 3-4) one of
16 programmes can be selected, related
LED will light up, and its corresponding
settings will be displayed.
Press this button (Fig. 3-5) to switch on,
if no panel element or programme is activated after
a while machine will shut down automatically.
Press it again for about 2 seconds to switch off,
3.4 “On/Off” button
Mix
Wool
Shirts
Duvet
Intense
Delicate/Silk
Heavy
Underwear
Baby Care
Daily Wash
Self Clean Rinse+Spin
Spin
Hygienic
Express 15 min
Disinfectant
Start/Pause
HW80-DM14876TNZP
