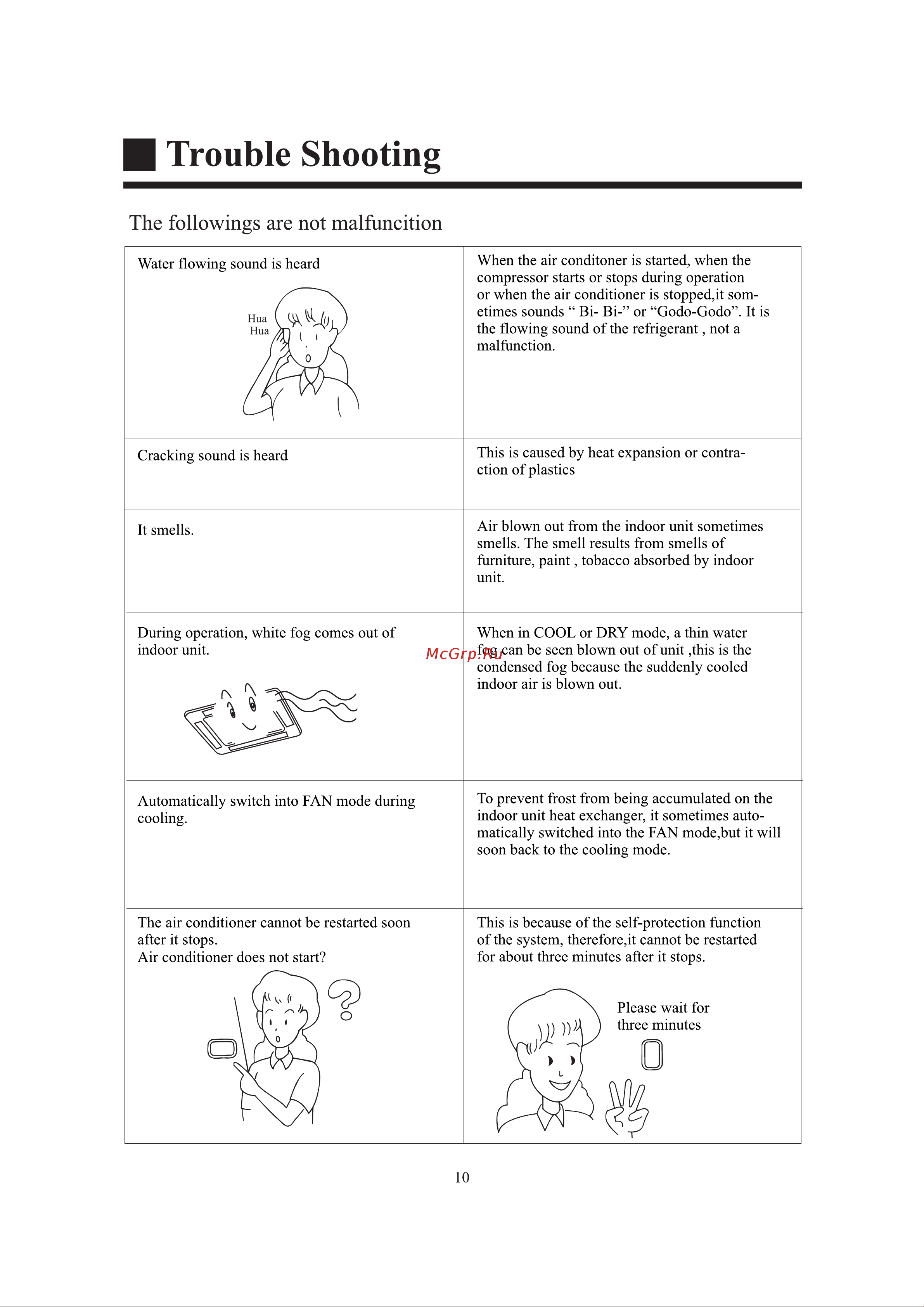

I Trouble Shooting The followings are not malfuncition When the air conditoner is started when the compressor starts or stops during operation or when the air conditioner is stopped it som etimes sounds Bi Bi or Godo Godo It is the flowing sound of the refrigerant not a malfunction Water flowing sound is heard Hua 11 Cracking sound is heard This is caused by heat expansion or contra ction of plastics It smells Air blown out from the indoor unit sometimes smells The smell results from smells of furniture paint tobacco absorbed by indoor unit During operation white fog comes out of indoor unit When in COOL or DRY mode a thin water fog can be seen blown out of unit this is the condensed fog because the suddenly cooled indoor air is blown out Automatically switch into FAN mode during cooling To prevent frost from being accumulated on the indoor unit heat exchanger it sometimes auto matically switched into the FAN mode but it will soon back to the cooling mode The air conditioner cannot be restarted soon after it stops Air conditioner does not start This is because of the self protection function of the system therefore it cannot be restarted for about three minutes after it stops M v XX X Please wait for U XA three minutes ft A 10
