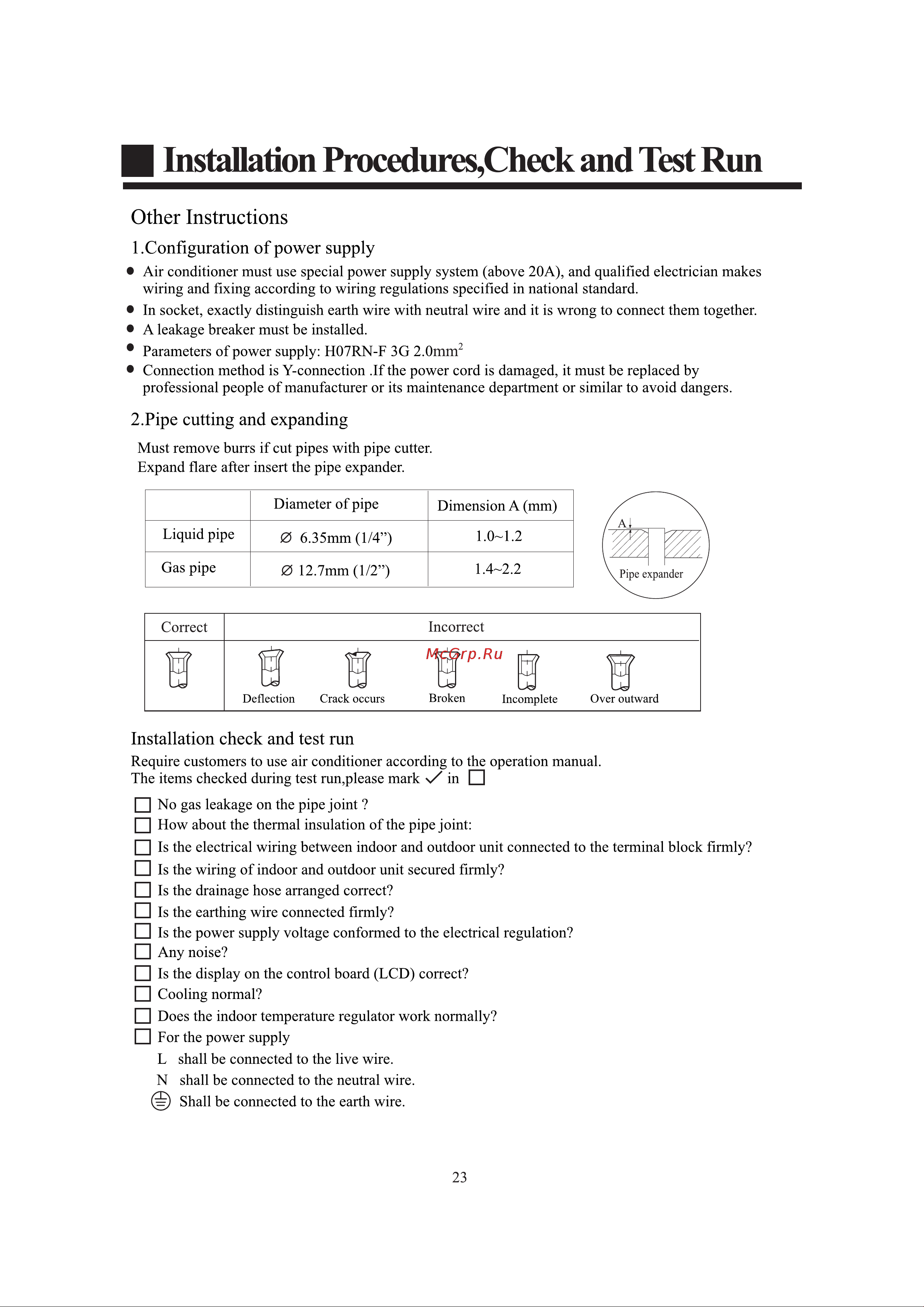

I retaliation Procedures Check and Test Run Other Instructions 1 Configuration of power supply Air conditioner must use special power supply system above 20A and qualified electrician makes wiring and fixing according to wiring regulations specified in national standard In socket exactly distinguish earth wire with neutral wire and it is wrong to connect them together A leakage breaker must be installed Parameters of power supply H07RN F 3G 2 0mm2 Connection method is Y connection If the power cord is damaged it must be replaced by professional people of manufacturer or its maintenance department or similar to avoid dangers 2 Pipe cutting and expanding Must remove burrs if cut pipes with pipe cutter Expand flare after insert the pipe expander Installation check and test run Require customers to use air conditioner according to the operation manual The items checked during test run please mark in No gas leakage on the pipe joint How about the thermal insulation of the pipe joint Is the electrical wiring between indoor and outdoor unit connected to the terminal block firmly Is the wiring of indoor and outdoor unit secured firmly Is the drainage hose arranged correct Is the earthing wire connected firmly Is the power supply voltage conformed to the electrical regulation Any noise Is the display on the control board LCD correct Cooling normal Does the indoor temperature regulator work normally For the power supply L shall be connected to the live wire N shall be connected to the neutral wire Shall be connected to the earth wire 23
