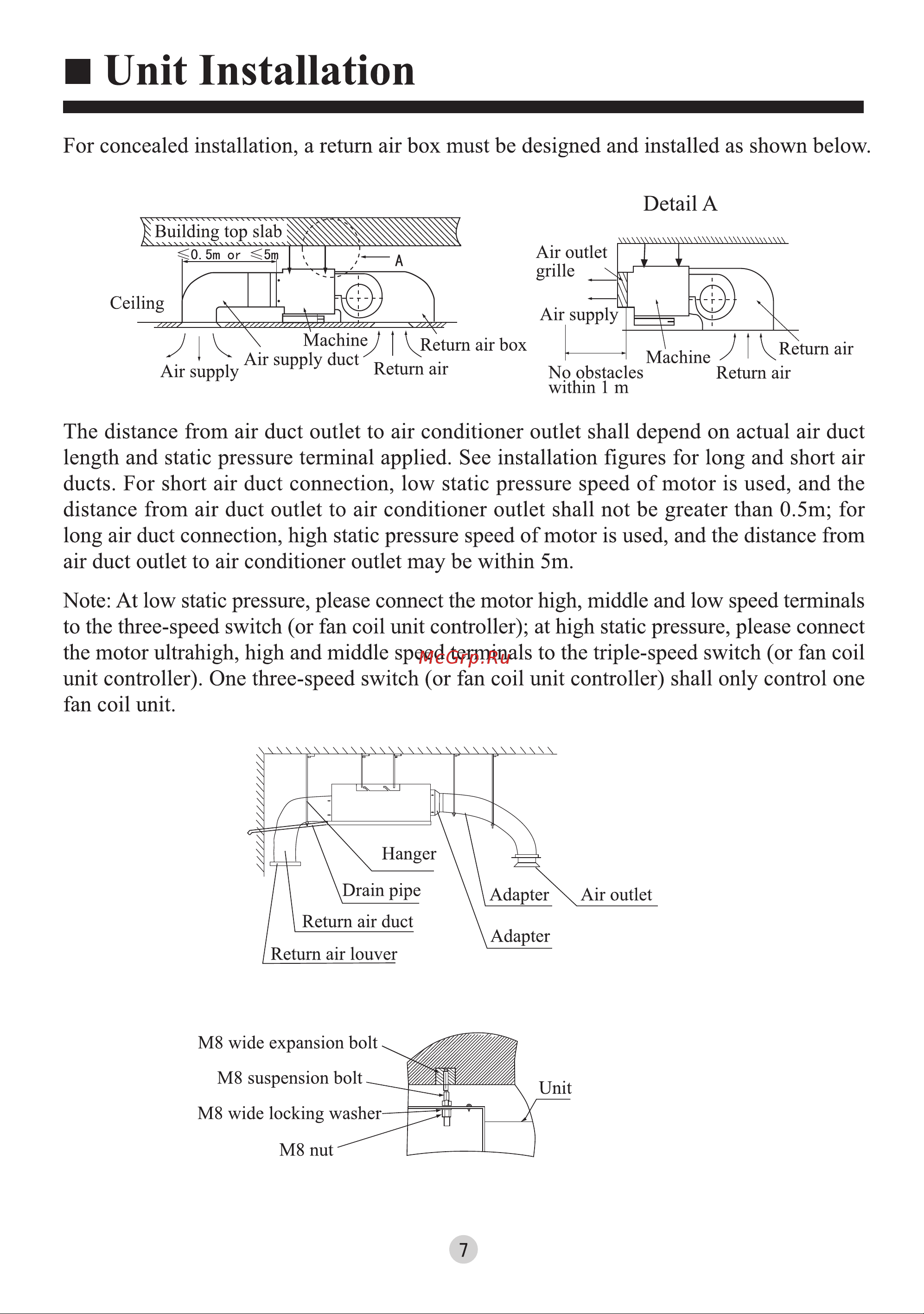

Unit Installation For concealed installation a return air box must be designed and installed as shown below Detail A WWWWW wwwwwwwwww Air outlet I I grille Air supply No obstacles within 1 m Machine Return air The distance from air duct outlet to air conditioner outlet shall depend on actual air duct length and static pressure terminal applied See installation figures for long and short air ducts For short air duct connection low static pressure speed of motor is used and the distance from air duct outlet to air conditioner outlet shall not be greater than 0 5m for long air duct connection high static pressure speed of motor is used and the distance from air duct outlet to air conditioner outlet may be within 5m Note At low static pressure please connect the motor high middle and low speed terminals to the three speed switch or fan coil unit controller at high static pressure please connect the motor ultrahigh high and middle speed terminals to the triple speed switch or fan coil unit controller One three speed switch or fan coil unit controller shall only control one fan coil unit M8 wide expansion bolt M8 suspension bolt M8 wide locking washer M8 nut Unit
