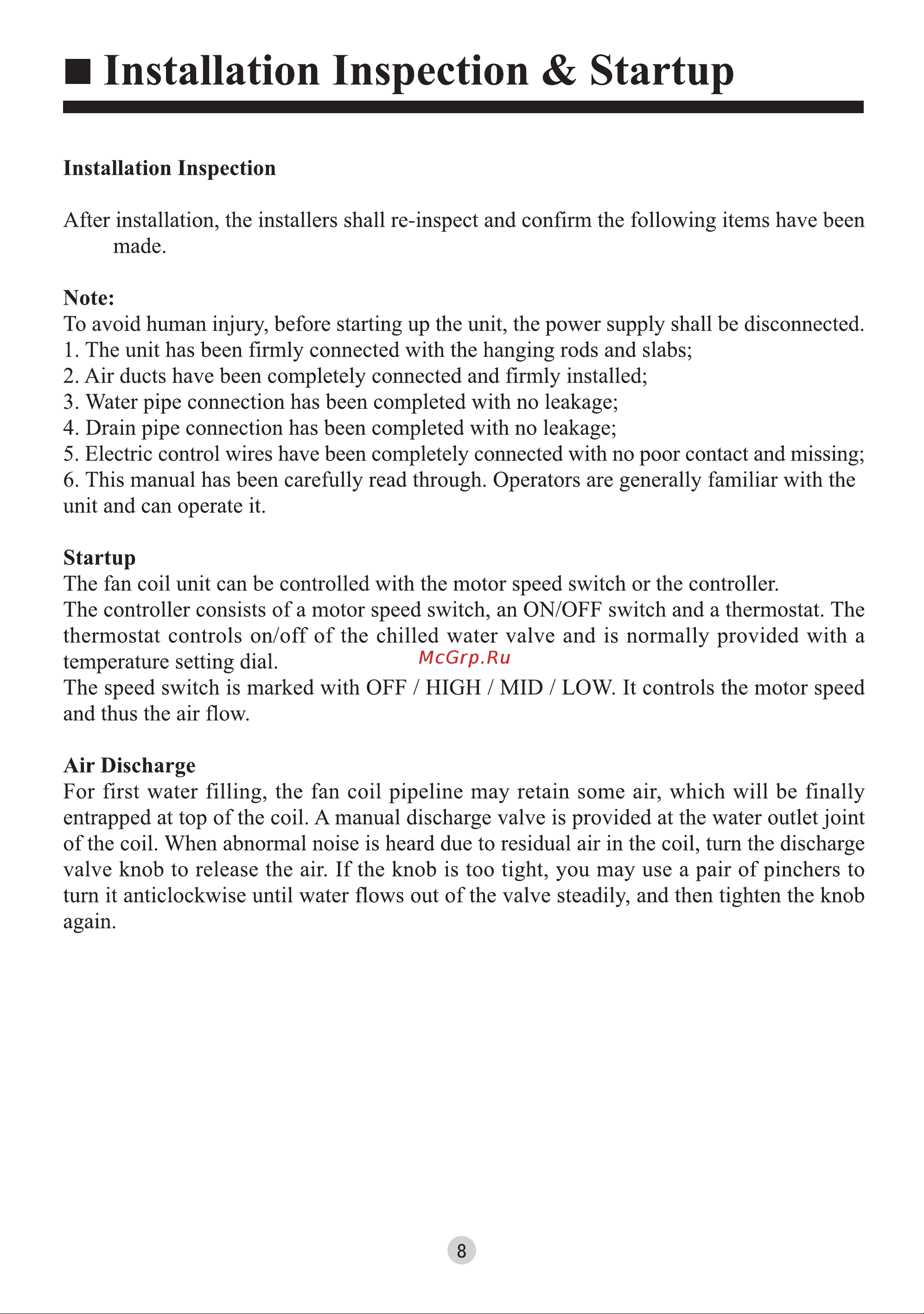

Installation Inspection Startup Installation Inspection After installation the installers shall re inspect and confirm the following items have been made Note To avoid human injury before starting up the unit the power supply shall be disconnected 1 The unit has been firmly connected with the hanging rods and slabs 2 Air ducts have been completely connected and firmly installed 3 Water pipe connection has been completed with no leakage 4 Drain pipe connection has been completed with no leakage 5 Electric control wires have been completely connected with no poor contact and missing 6 This manual has been carefully read through Operators are generally familiar with the unit and can operate it Startup The fan coil unit can be controlled with the motor speed switch or the controller The controller consists of a motor speed switch an ON OFF switch and a thermostat The thermostat controls on off of the chilled water valve and is normally provided with a temperature setting dial The speed switch is marked with OFF HIGH MID LOW It controls the motor speed and thus the air flow Air Discharge For first water filling the fan coil pipeline may retain some air which will be finally entrapped at top of the coil A manual discharge valve is provided at the water outlet joint of the coil When abnormal noise is heard due to residual air in the coil turn the discharge valve knob to release the air If the knob is too tight you may use a pair of pinchers to turn it anticlockwise until water flows out of the valve steadily and then tighten the knob again 8
