KFKD middle static pressure duct
10
High speed Orange
Medium speed
Blue
Yellow
Low speed
Red
Black
Orange
Blue
Yellow
Red
Black

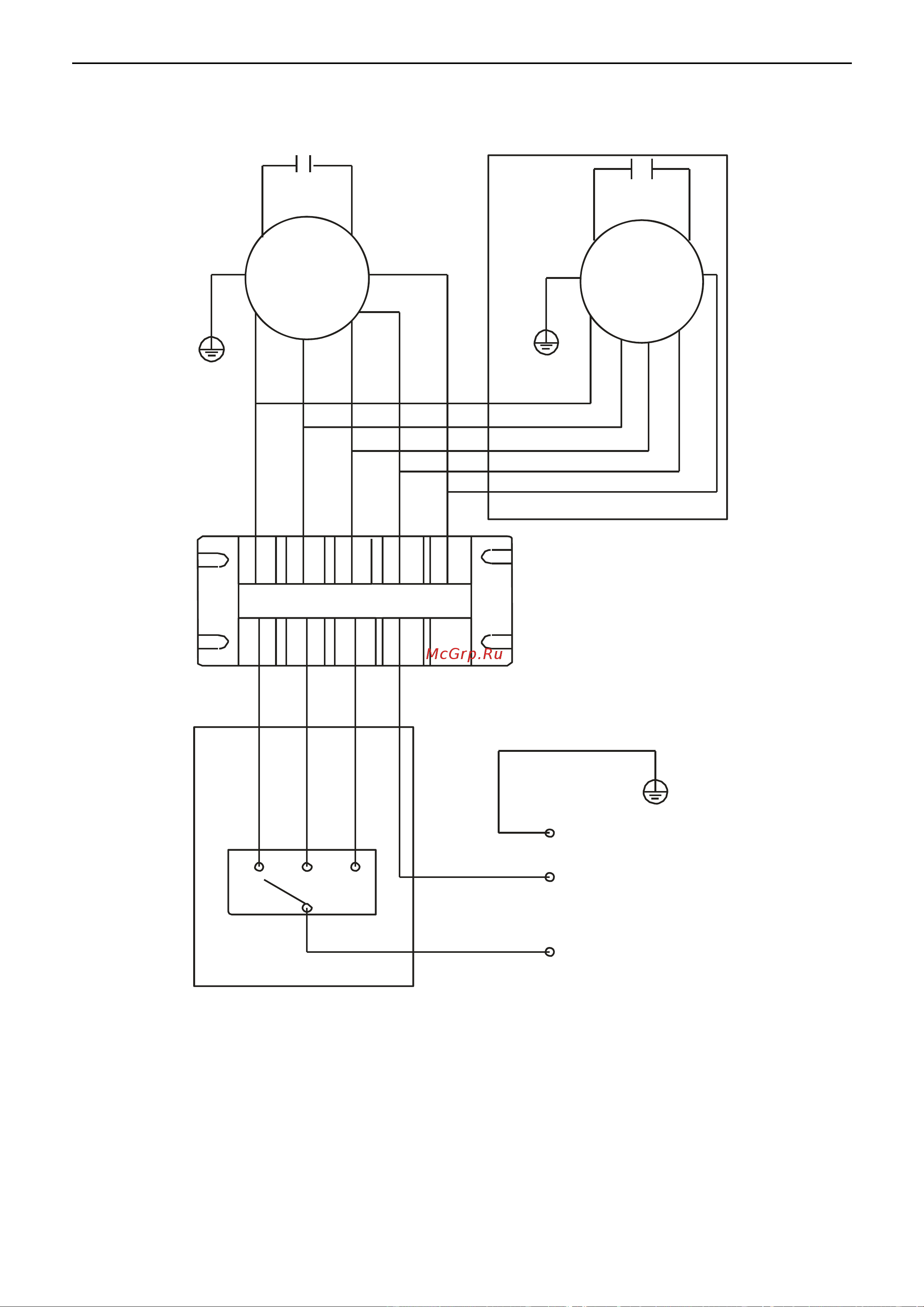

Wiring diagrams
KFKD20H0EN1; KFKD30H0EN1; KFKD38H0EN1; KFKD48H0EN1; KFKD57H0EN1; KFKD70H0EN1;
KFKD89H0EN1
; KFKD112H0EN1
Motor
Motor
1 2 3 4 5
Yellow/green
Earth
wire
Zero
line
Power
Three-speed switch Live line
Note:
Black: supper high fan speed; Orange: high fan speed; Blue: medium fan speed; Yellow: low fan speed.
Terminal 5 connects with reserved speed.
Please connect wires properly, or the motor would be burned-out.
