DM12-01.01.10en Oasis Inverter
Service manual 13

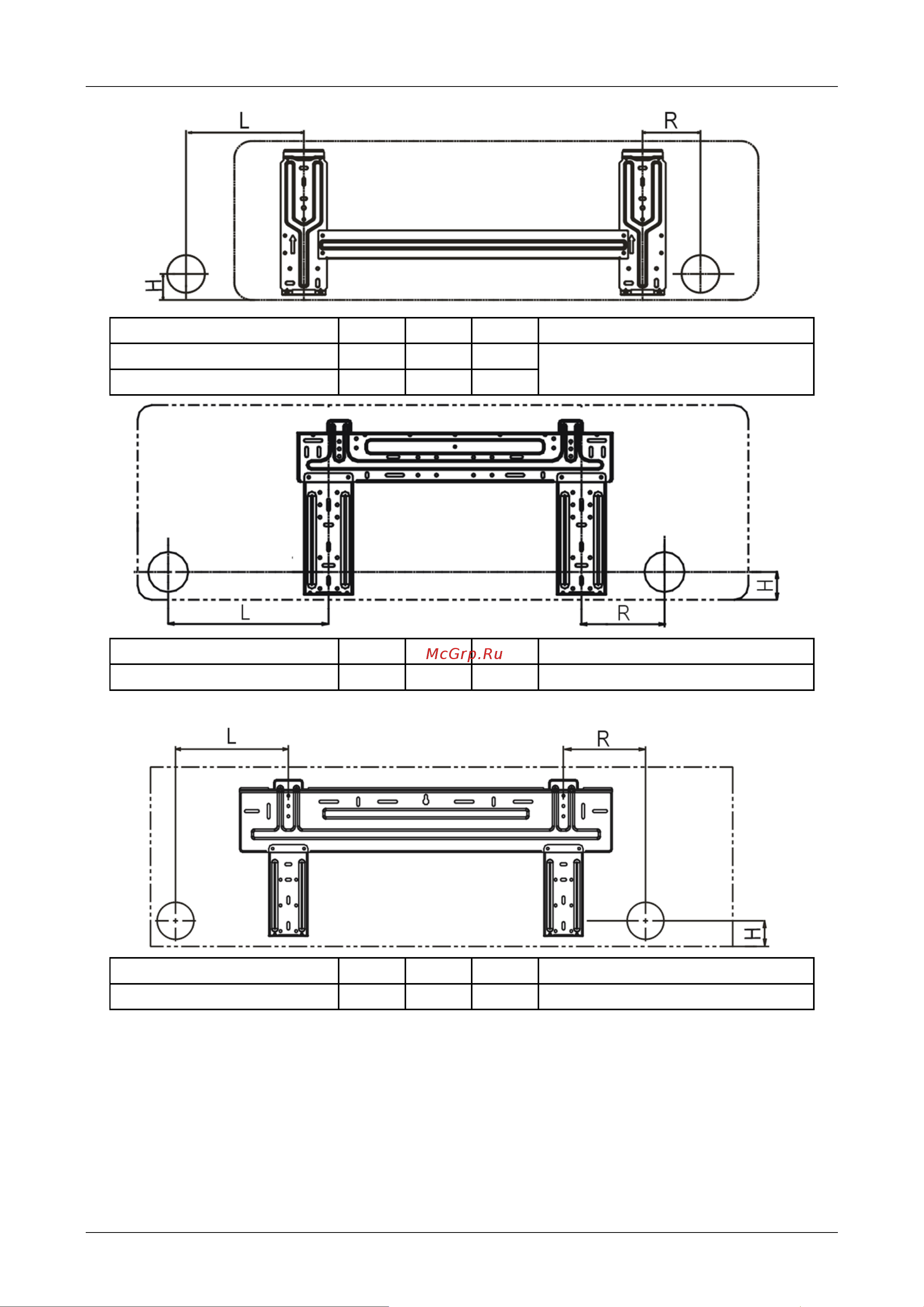

Model L(mm) R(mm) H(mm) Dimension of installation hole(mm)
MS11MU-09HRDN1
180 110 45
￠65
MS11MU-12HRDN1
140 110 45
Model L(mm) R(mm) H(mm) Dimension of installation hole(mm)
MS11MU-18HRDN1
260 135 45
￠65
Model L(mm) R(mm) H(mm) Dimension of installation hole(mm)
MS11MU-24HRDN1
275 275 45
￠65
