Oasis Inverter DM12-01.01.10en
14 Service manual

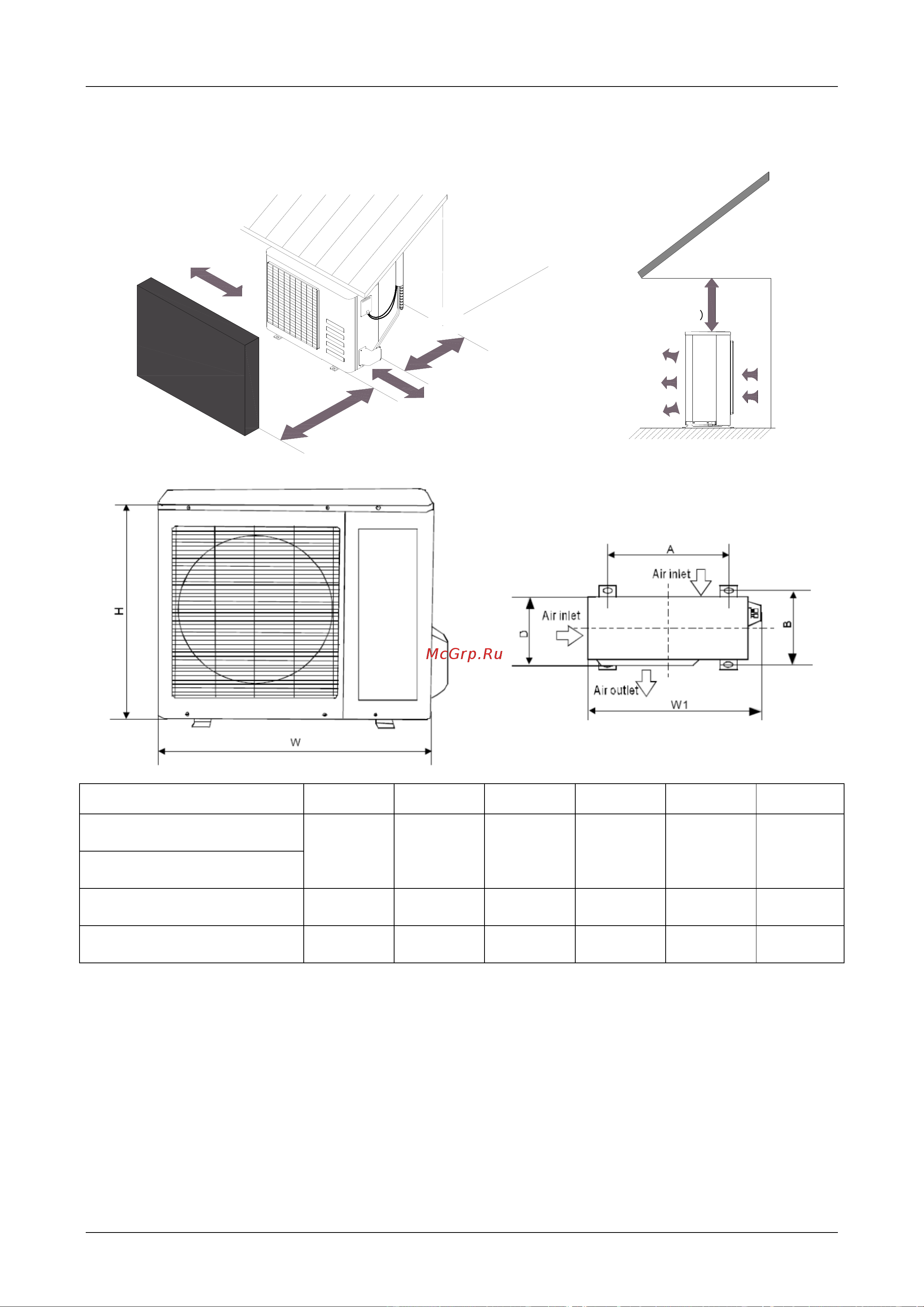

4.2 Outdoor Unit
More than 30cm
More than 60cm
More than 70cm
More than 30cm
More than 60cm
(Service space
︶
F
e
n
c
e
o
r
o
b
s
t
a
c
l
e
s
Model W D H W1 A B
MO11MU-09HRDN1
670 265 540 730 481 276
MO11MU-12HRDN1
MO11MU-18HRDN1
760 285 590 823 530 290
MO11MU-24HRDN1
845 320 700 908 560 335
