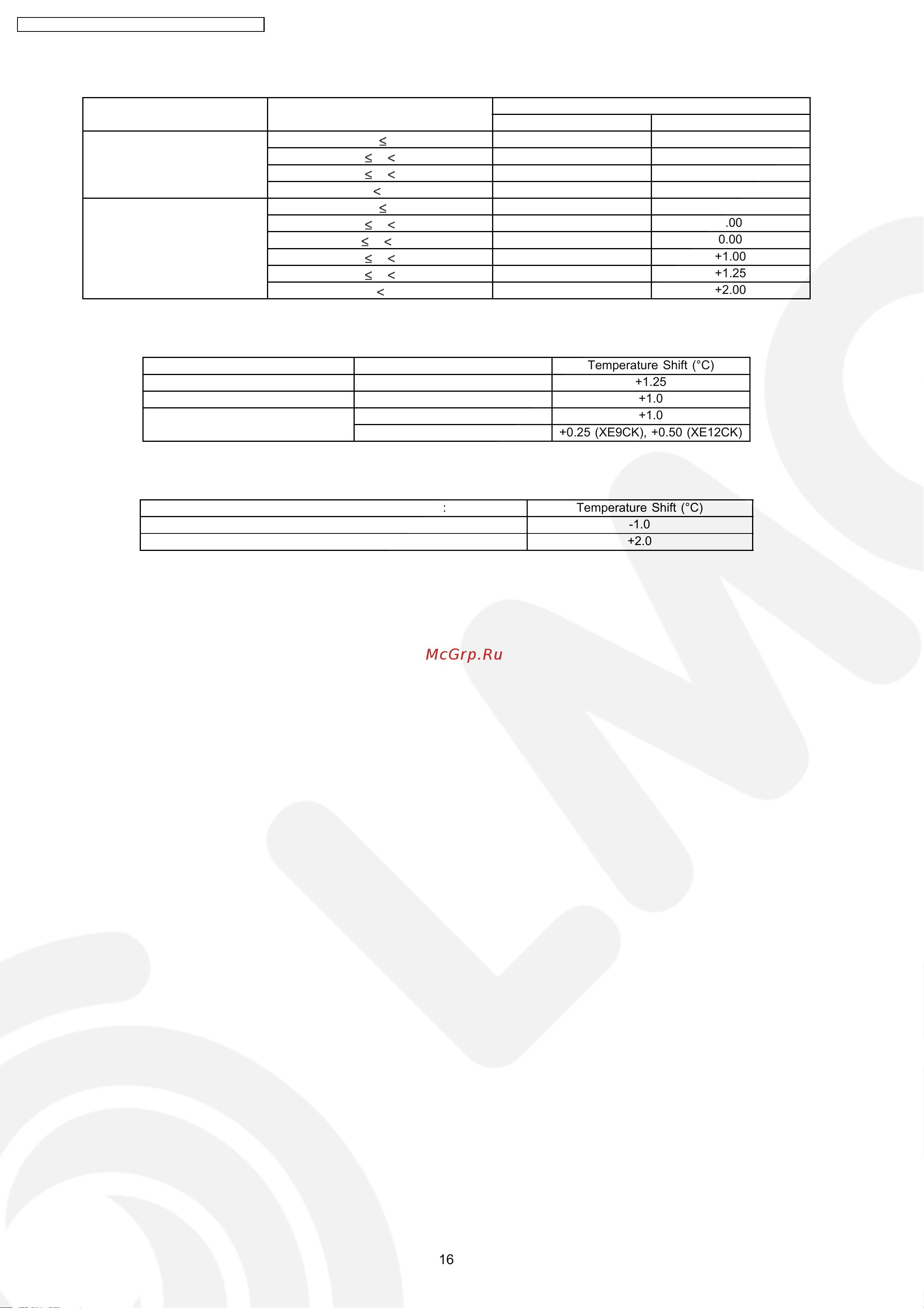

Panasonic CU-XE12CKE [16/110] Table b outdoor air temperature shifting

Table (b): Outdoor Air Temperature Shifting

Mode: Outdoor Temperature, X (°C): Temperature Shift (°C)

XE9CK XE12CK

Cooling/Soft Dry 38 X 0.00 0.00

30 X 38 0.00 0.00

23 X 30 0.00 0.00

X 23 0.00 0.00

Heating 21 X 0.00 0.00

17 X 21 0.00 0.00

9 X 17 0.00 0.00

5 X 9 +0.50 +1.00

1 X 5 +1.00 +1.25

X 1 +1.50 +2.00

Table (c): Fan Speed Shifting

Mode: Fan Speed: Temperature Shift (°C)

Cooling All +1.25

Soft Dry All +1.0

Heating Lo +1.0

Hi, Me-, Me, Me+, Auto +0.25 (XE9CK), +0.50 (XE12CK)

Table (d): Start-Up Shifting

Mode within 60 Minutes from Start-up: Temperature Shift (°C)

Cooling/Soft Dry -1.0

Heating +2.0

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE
