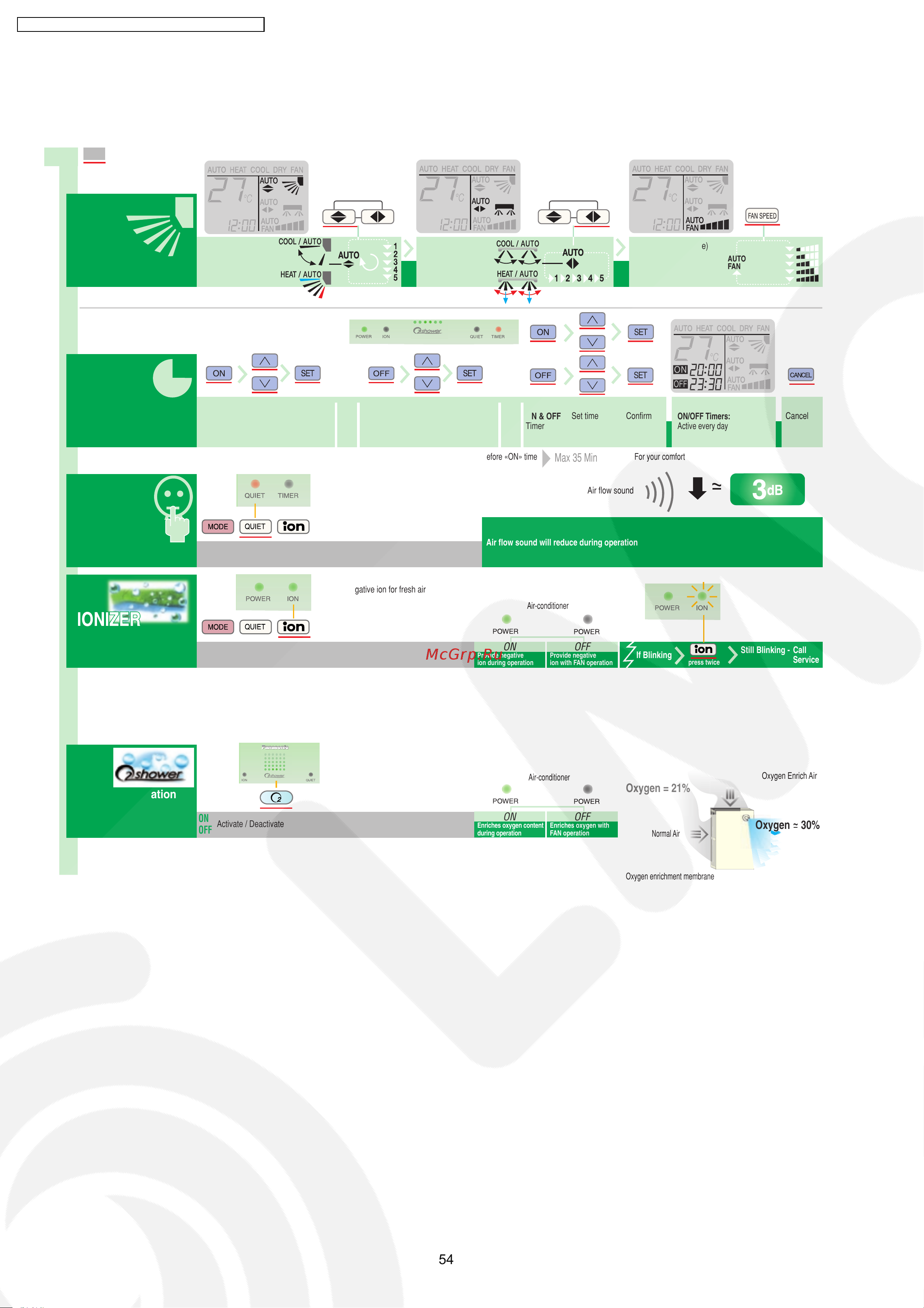

Panasonic CU-XE12CKE [54/110] Air flow
![Panasonic CU-XE12CKE [54/110] Air flow](/views2/1832883/page54/bg36.png)
Vertical direction
Air Flow
Press button
AIR SWING
Horizontal direction
AIR SWING
Direction / volume
Select automatic / manual
ON
Timer
TIMER Operation
Select
Set time
Confirm or
OFF
Timer
Set time
Confirm
or
ON & OFF
Timer
Set time Confirm
ON
OFF
Cancel
ON/OFF Timers:
Active every day
● Air still cold
● Air heated
ON
OFF
QUIET Operation
Current time OK? –> Setting: page 56
Activate / Deactivate
Provide quiet operation
Air flow sound
Air flow sound will reduce during operation
ON
OFF
Activate / Deactivate
Produce negative ion for fresh air
ON
Provide negative
ion during operation
OFF
Provide negative
ion with FAN operation
Air-conditioner
If Blinking
press twice
Still Blinking - Call
Service
OXYGEN Operation
ON
OFF
Activate / Deactivate
ON
Enriches oxygen content
during operation
OFF
Enriches oxygen with
FAN operation
Air-conditioner
Oxygen enrichment membrane
Oxygen = 21%
Normal Air
Oxygen
~
30%
Oxygen Enrich Air
Start before «ON» time
Max 35 Min
For your comfort
Fan Speed (air volume)
54
CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE
