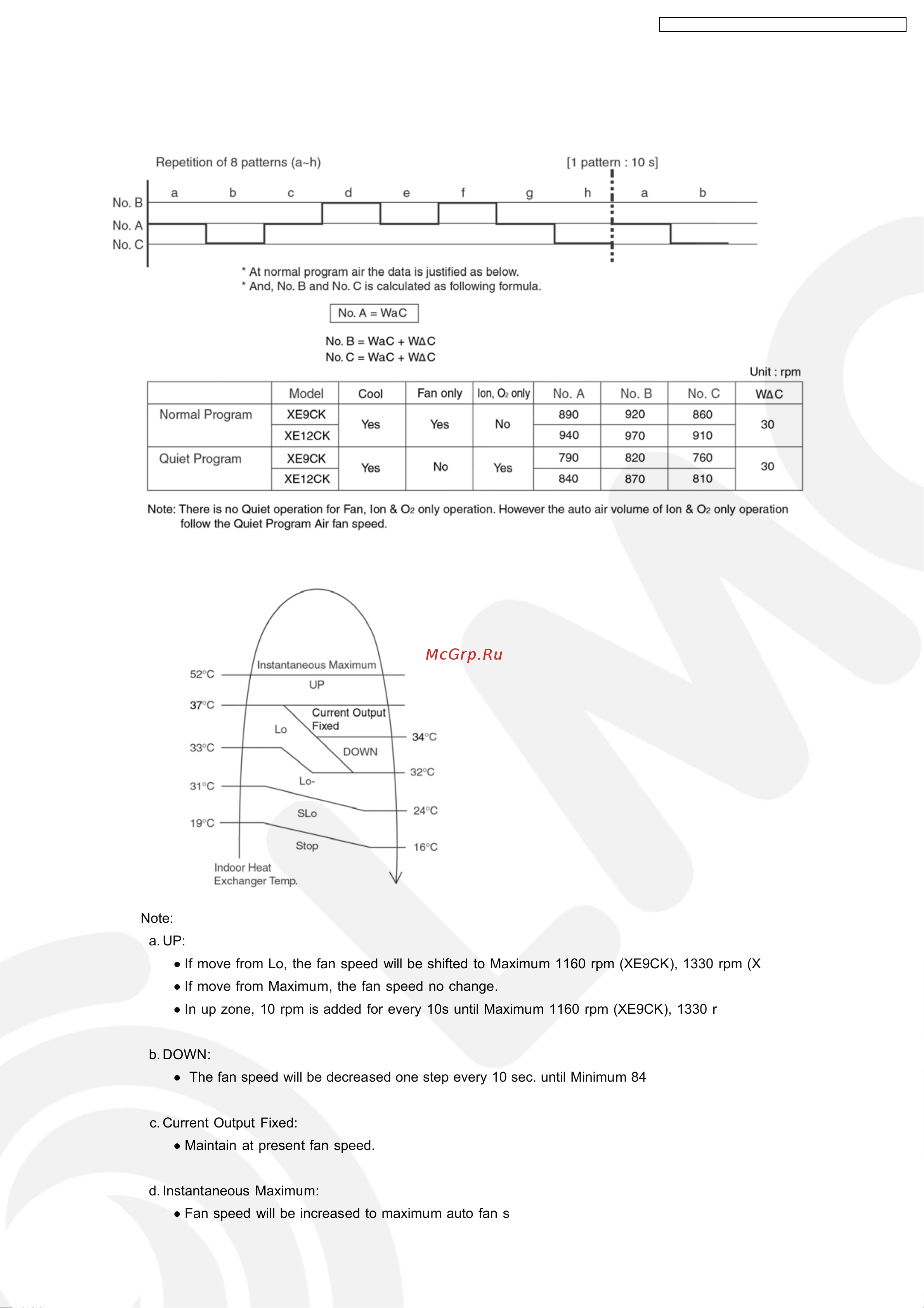

ii. Auto Fan Speed

1. Cooling, Ion, Oxygen

2. Heating

Note:

a. UP:

•

• •

• If move from Lo, the fan speed will be shifted to Maximum 1160 rpm (XE9CK), 1330 rpm (XE12CK).

•

• •

• If move from Maximum, the fan speed no change.

•

• •

• In up zone, 10 rpm is added for every 10s until Maximum 1160 rpm (XE9CK), 1330 rpm (XE12CK).

b. DOWN:

•

• •

• The fan speed will be decreased one step every 10 sec. until Minimum 840 rpm (XE9CK), 1100 rpm (XE12CK).

c. Current Output Fixed:

•

• •

• Maintain at present fan speed.

d. Instantaneous Maximum:

•

• •

• Fan speed will be increased to maximum auto fan speed.

CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE
