Panasonic CS-F28DB4E5 [5/112] Automatic restart function
![Panasonic CS-F28DB4E5 [5/112] Features](/views2/1832894/page5/bg5.png)

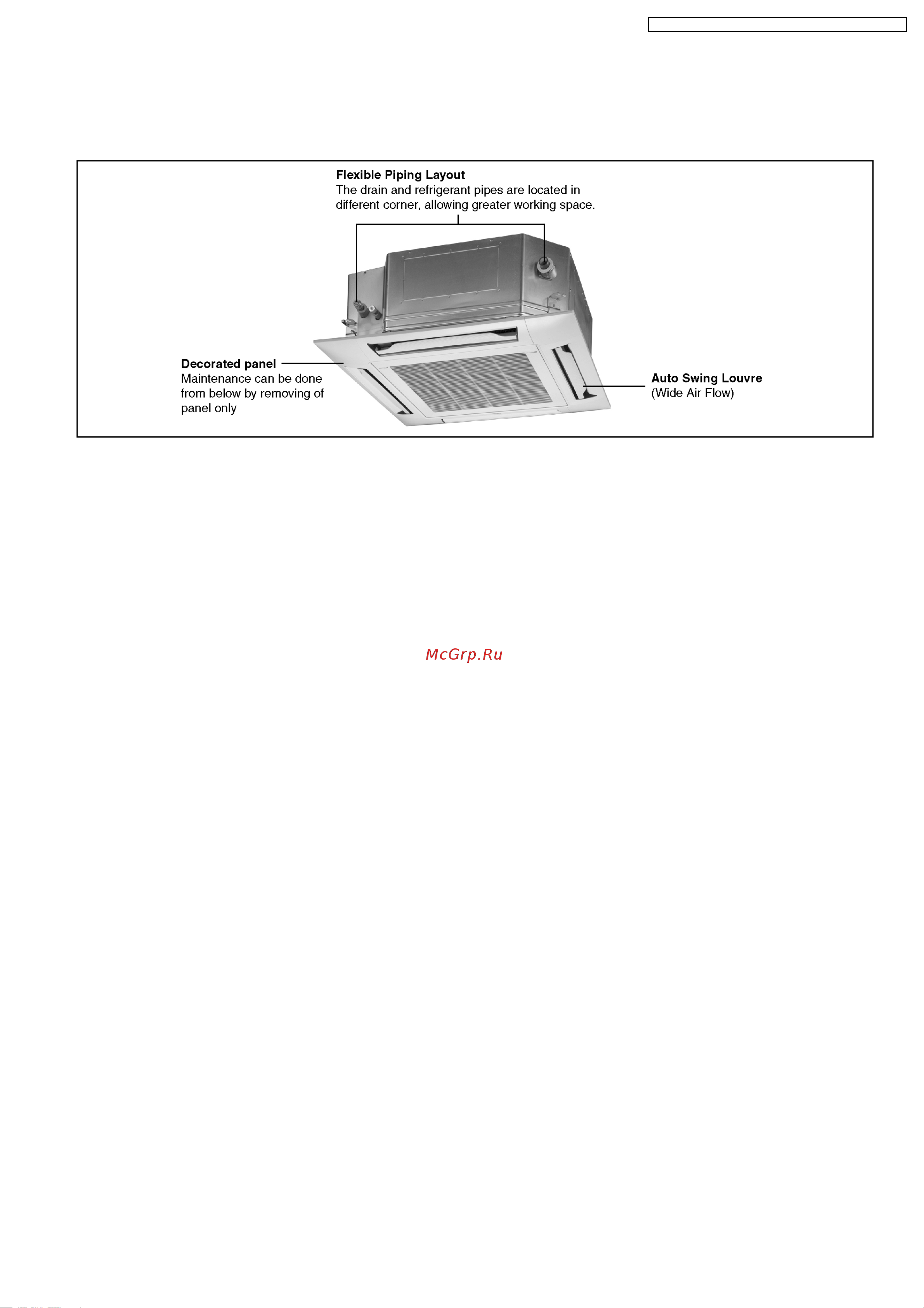

2.1. Variety of excellent features
2 Features
2.1.1. Compact design
•
• •
•
The height is only 246 mm and can be installed even where the space is limited.
2.1.2. Automatic restart function
•
• •
•
When the electric power comes back after a power failure, the unit itself automatically restarts the operation in the pre-failure
mode.
2.1.3. Auto fan mode (indoor unit)
•
• •
•
Auto fan mode is added besides Hi, Me and Lo.
It automatically adjusts the fan speed according to the indoor temperature.
2.1.4. Dry mode function
•
• •
•
Dry mode can make a comfortable indoor environment during wet season.
2.1.5. Quiet operation
•
• •
•
The sound level is as low as 32 dB (A) for model CS-F24DB4E5, 33 dB (A) for model CS-F28DB4E5 and suitable for offices,
shops, homes etc., where quiet operation is essential.
2.1.6. Auto Swing Louvre
•
• •
•
The air flow angle can be changed automatically (or manually) to an angle between 10° to 70° using the remote control.
2.1.7. Low ambient cooling operation
•
• •
•
Cooling operation is possible at outdoor temperature of -5°C.
5
CS-F24DB4E5 CU-L24DBE5 / CS-F28DB4E5 CU-L28DBE5
