Panasonic CS-A9DKD / CU-A9DKD [64/88] Indoor fan motor and cross flow fan removal procedures

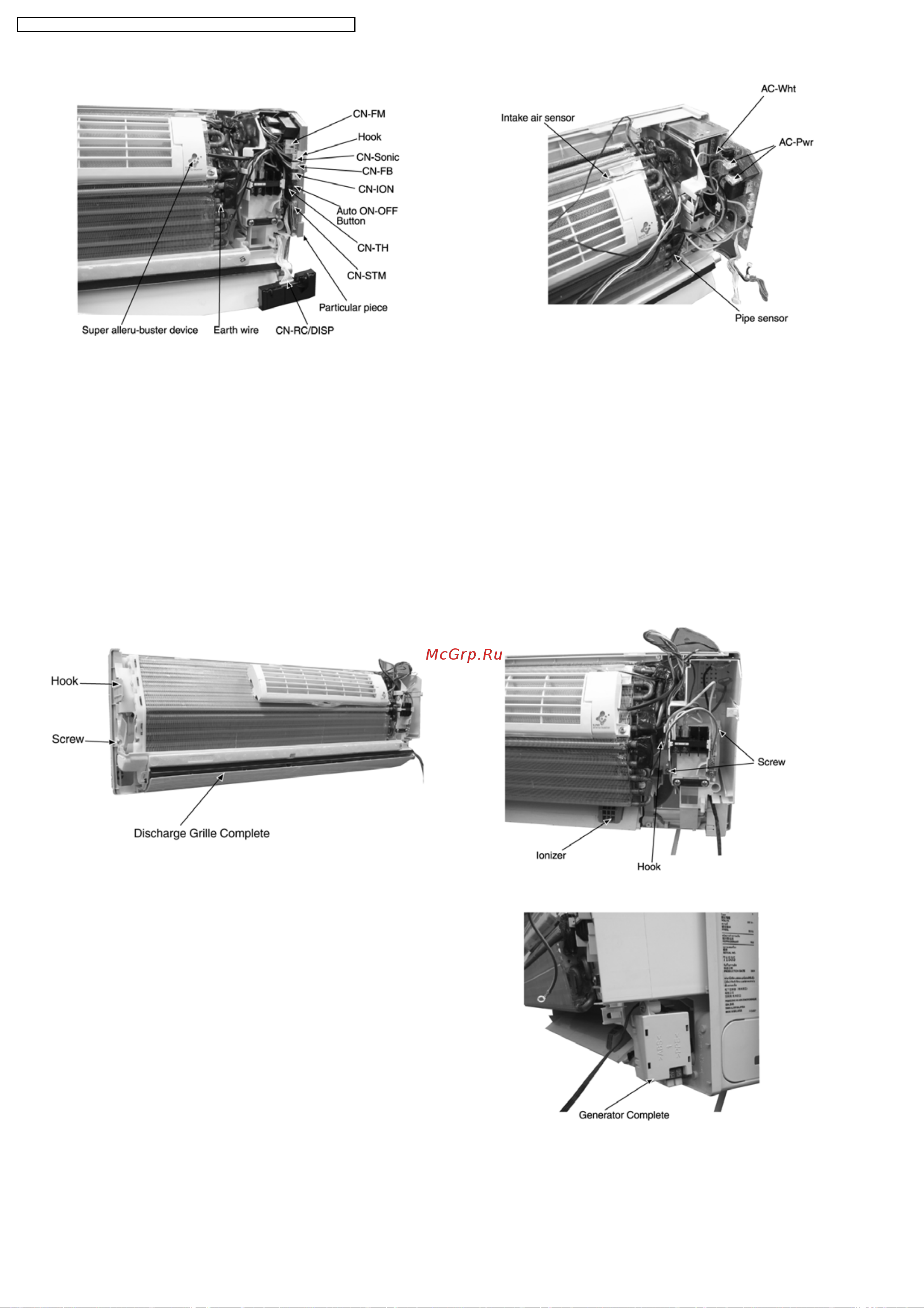

Fig. 4

− To remove the electronic controller.

− Release CN-FM connectors. (Fig. 4)

− Release CN-Sonic connector. (Fig. 4)

− Release CN-FB connector. (Fig. 4)

− Release CN-ION connector. (Fig. 4)

− Release CN-TH connector. (Fig. 4)

− Release CN-STM connector. (Fig. 4)

− Release CN-REC/DISP connector. (Fig. 4)

• Remove Control Board Cover

Fig. 6

− Remove the screw on the left of the unit. (Fig. 6)

− Pull the hook to the left and lift up the evaporator.

(Fig. 6)

− Pull down the Discharge Grille Complete. (Fig. 6)

Fig. 5

− Press the hook to the right then take out the PCB. (Fig.

− Release Ry-Pwr connector (black and brown) and Ac-

Wht connector from the PCB. (Fig. 5)

Fig. 7

Fig. 8

− Remove indoor pipe sensor and air intake sensor from

the evaporator. (Fig. 7)

− Remove the earth wire from the evaporator. (Fig. 7)

12.3. Indoor Fan Motor And Cross Flow Fan Removal Procedures

CS-A7DKD CU-A7DKD / CS-A9DKD CU-A9DKD / CS-A12DKD CU-A12DKD /
