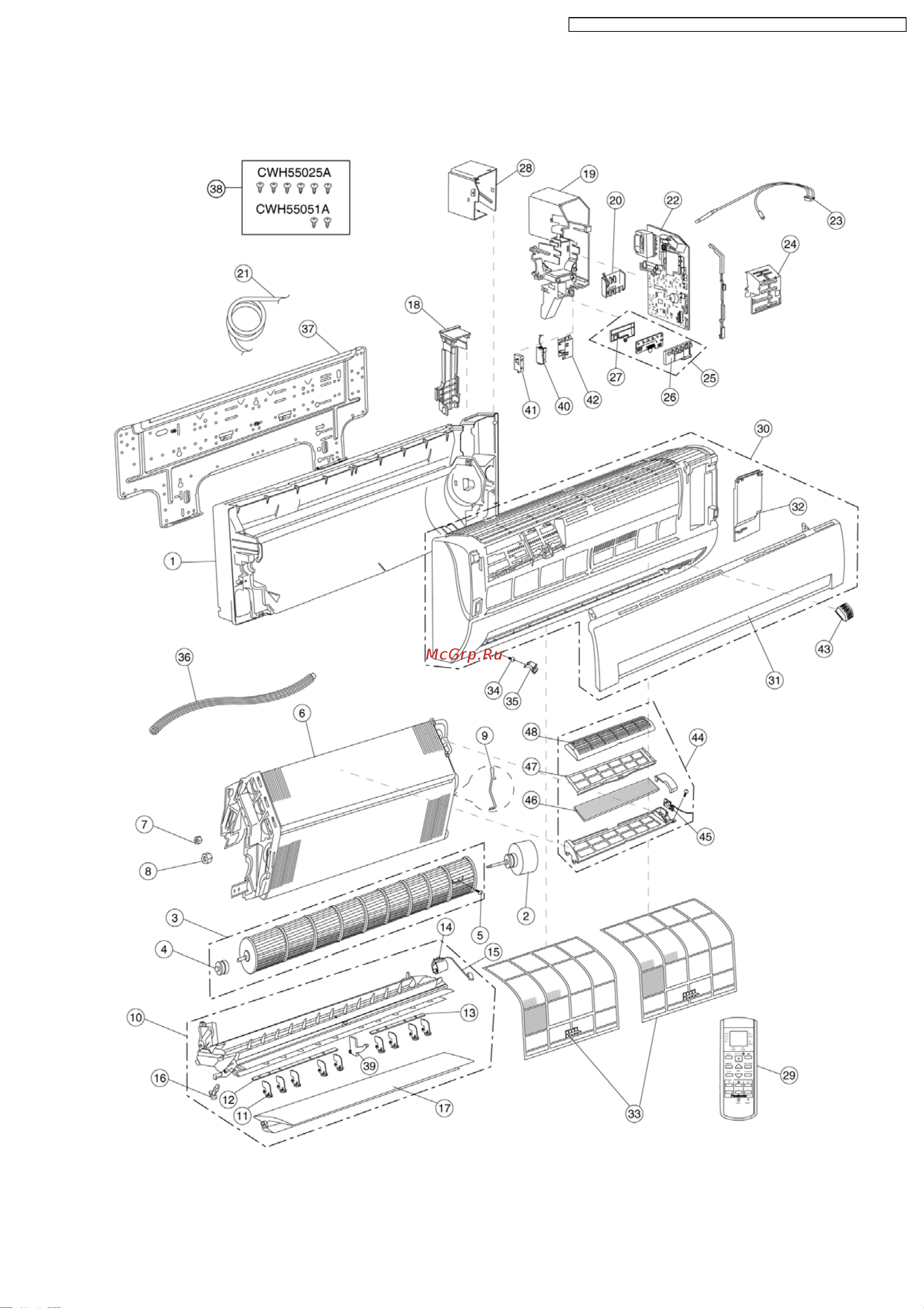

15 Exploded View (Indoor Unit)
15.1. CS-A7DKD CS-A9DKD CS-A12DKD
Note:
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
73
CS-A7DKD CU-A7DKD / CS-A9DKD CU-A9DKD / CS-A12DKD CU-A12DKD /
