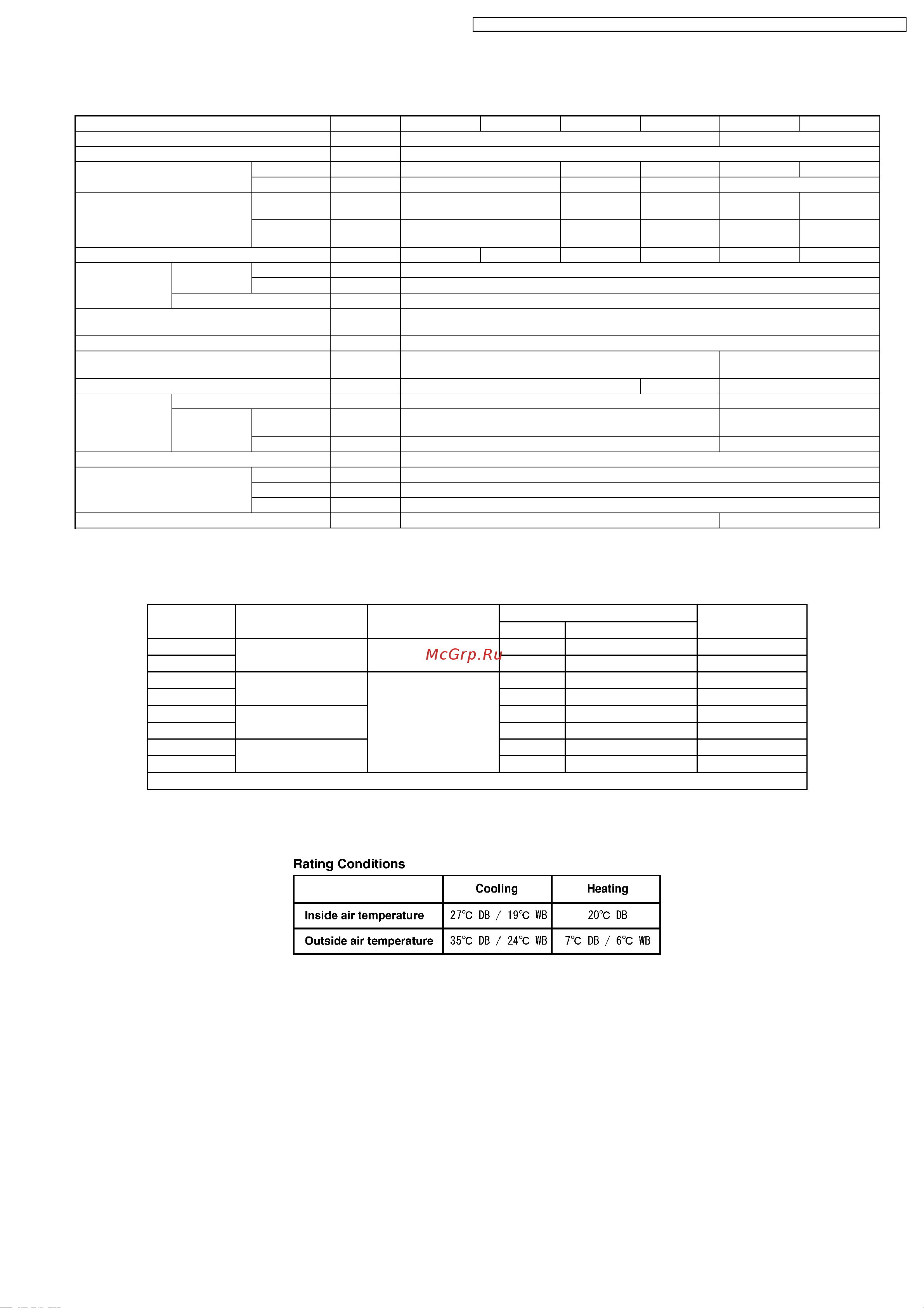

4 Product Specifications
Model CS-ME7CB1P CS-ME10CB1P CS-ME12CB1P CS-ME14CB1P CS-ME10CD3P CS-ME14CD3P
Item Cassette Type Duct Type
Power Source Outdoor power (single 230V 50Hz)
Air Volume Cooling m
3
/min. 9.1 9.6 9.5 7.0 7.8
Heating m
3
/min. 9.8 10.2 9.8 8.7
Noise Level Cooling
(Power)
dB(A)
(dB)
Hi:40(53)
Lo:32(45)
Hi:41(54)
Lo:32(45)
Hi:43(56)
Lo:32(45)
Hi:43(56)
Lo:32(45)
Hi:45(58)
Lo:32(45)
Heating
(Power)
dB(A)
(dB)
Hi:42(55)
Lo:32(45)
Hi:43(56)
Lo:32(45)
Hi:44(57)
Lo:34(47)
Hi:47(60)
Lo:32(45)
Hi:47(60)
Lo:35(48)
Moisture Removal L/h 1.3 1.6 1.8 2.3 1.6 2.3
Refrigeration
piping
Connection Liquid mm 6.35 (1/4") Flare to the main unit
Gas mm 9.52 (3/8") Flare to the main unit
Type of pipe CZ-3F
Type of Indoor/Outdoor connecting
cable
mm 4 x 1.5 mm
2
flexible cord, type designation 245 IEC 57 (H05RN-F)
Drain opening mm VP20
Dimensions mm Height 185 x Width 770 x Depth 360 Height 235 x Width 750
x Depth 370
Net Weight kg 9.8 10.5 16.5
Fan Type Cross-flow fan Sirocco fan
Motor Type DC brushless motor (EHOCM24A4P25) DC brushless motor
(ARW31V8P30AC)
Output W 4P 25W 40V A98258 8P 30W 280-340V A981071
Heat exchanger Plate fin forced-draft
Adjustments Switches Wireless remote control
Timer Timer with ON and OFF times programmable
Temperature Electronic thermostat
Air filter PP honeycomb -
Remarks:
The specifications are differ from wall type indoor units when 2.8kW Duct type is connected to CU-2E15CBPG and CU-
2E18CBPG.
Indoor unit
Combination
Outdoor unit Power Input (kW) Current (A)
min. - max
Cooling 22 + 28 CU-2E15CBPG 1.39 0.25 - 1.73 6.50
Heating 1.36 0.21 - 1.67 6.05
Cooling 22 + 28 CU-2E18CBPG 1.39 0.25 - 1.73 6.50
Heating 1.36 0.21 - 1.67 6.05
Cooling 28 + 28 (*) 1.56 0.25 - 1.73 7.25
Heating 1.47 0.21 - 1.74 6.50
Cooling 28 + 32 1.67 0.25 - 1.80 7.80
Heating 1.39 0.21 - 1.72 6.15
(*) The combination 2.8kW Duct type X 2 and 2.8kW Duct type + 2.8kW Wall type are same value.
* Specifications are subject to change without notice for further improvement.
