![Panasonic WH-SDC14C9E8 / WH-UD14CE8 [129/141] Wh sdc16c9e8 wh ud16ce8](/img/pdf.png)
Panasonic WH-SDC14C9E8 / WH-UD14CE8 [129/141] Wh sdc16c9e8 wh ud16ce8
![Panasonic WH-SDC14C9E8 / WH-UD14CE8 [129/141] Wh sdc16c9e8 wh ud16ce8](/views2/1833349/page129/bg81.png)
129
18.1.4 WH-SDC16C9E8 WH-UD16CE8

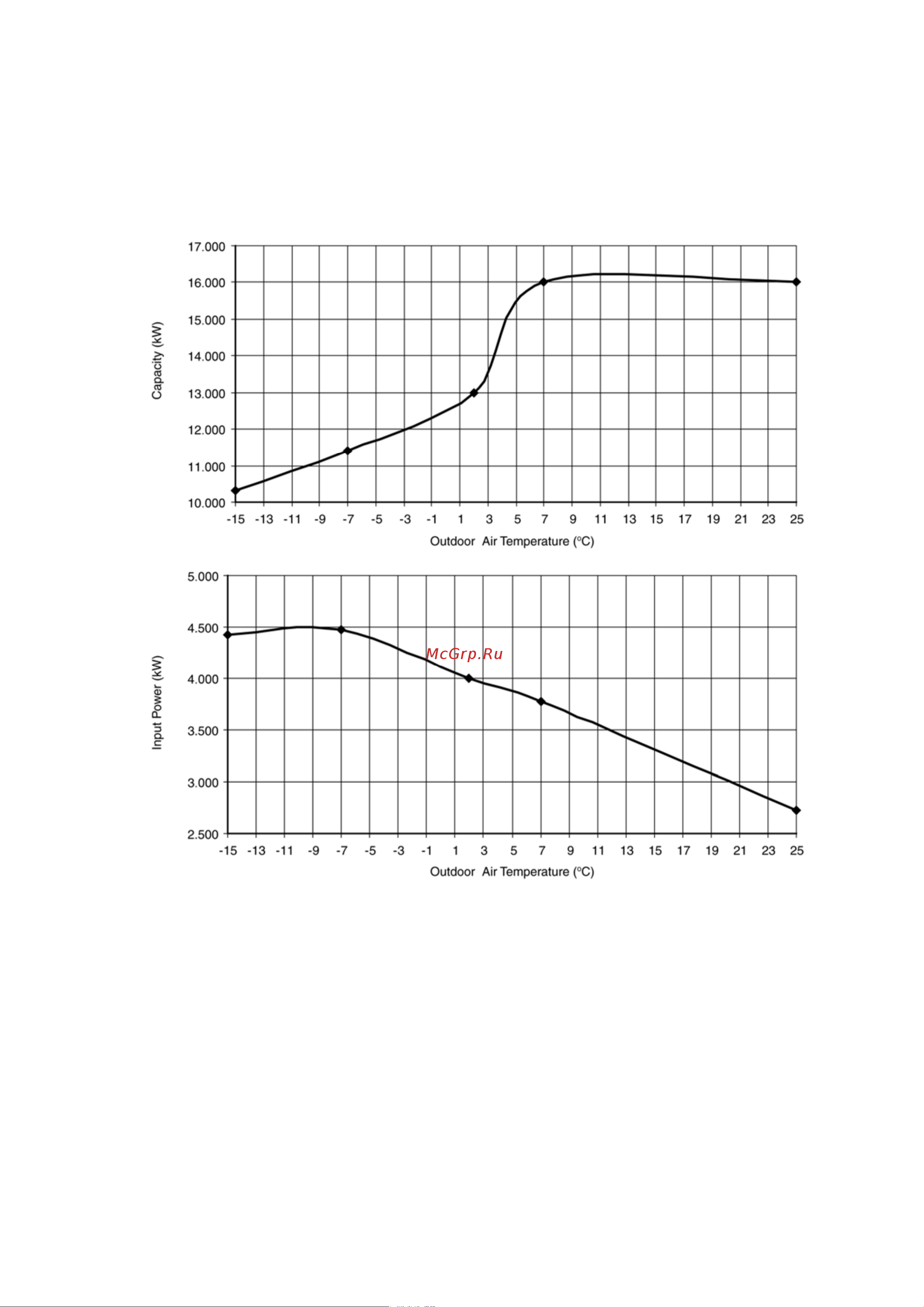

Heating Characteristics at Different Outdoor Air Temperature
Condition
Outdoor air temperature : 7°C (DBT), 6°C (WBT)
Indoor water inlet temperature : 30°C
Indoor water outlet temperature : 35°C
Piping length : 7m
